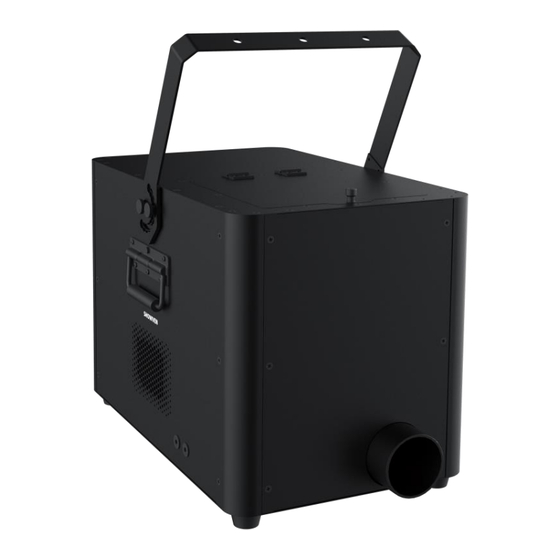

Showven uFetti Blower CB16 User Manual
  1. Manuals
  2. Brands
  3. Showven Manuals
  4. DJ Equipment
  5. uFetti Blower CB16
  6. User manual

Showven uFetti Blower CB16 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

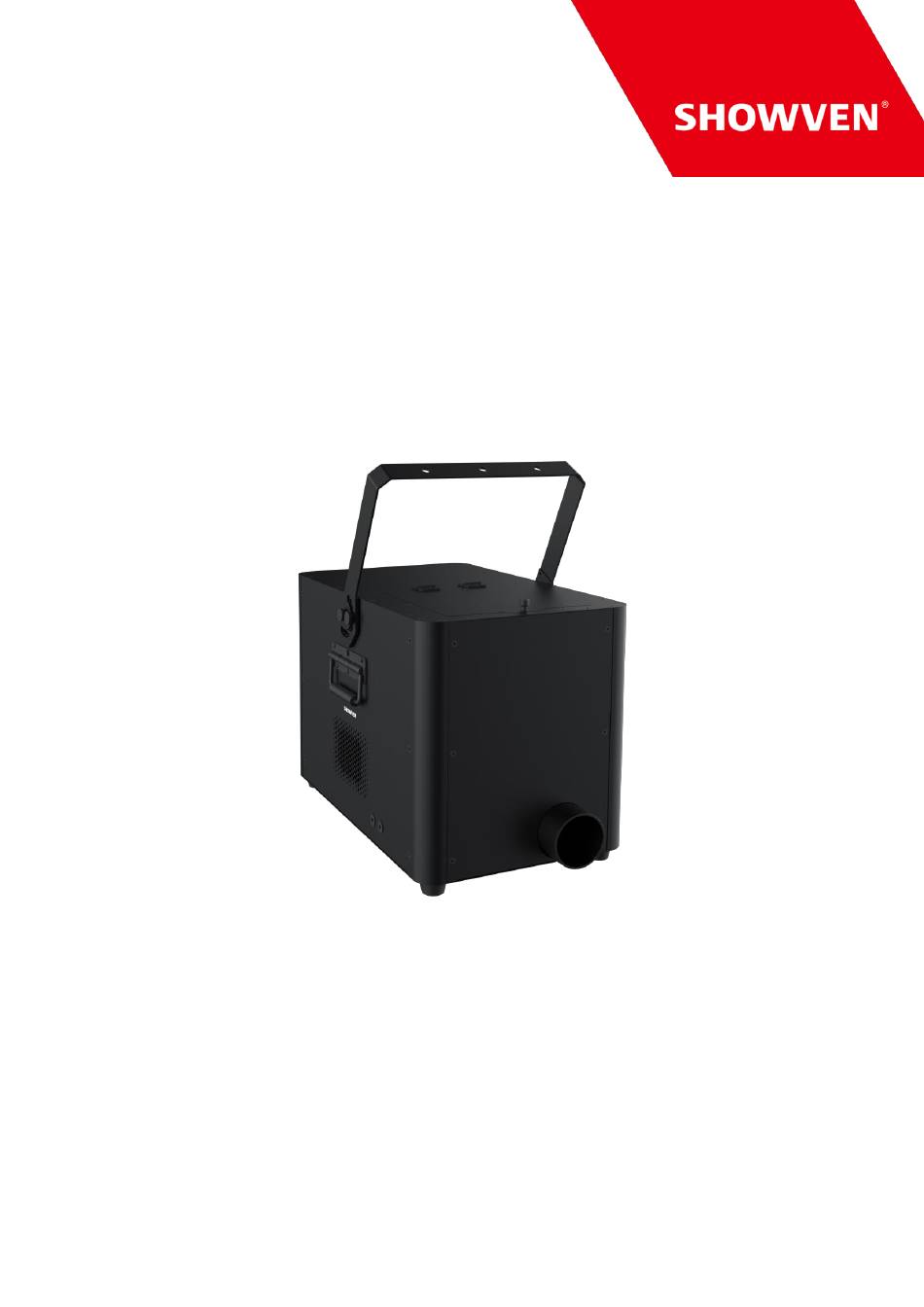

USER MANUAL
uFetti Blower CB16
V1.0
2024/06/20
SHOWVEN Technologies Co., Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the uFetti Blower CB16 and is the answer not in the manual?

Questions and answers

Related Manuals for Showven uFetti Blower CB16

Summary of Contents for Showven uFetti Blower CB16

  • Page 1 USER MANUAL uFetti Blower CB16 V1.0 2024/06/20 SHOWVEN Technologies Co., Ltd...

  • Page 3: Safety Instructions

    Thanks for choosing SHOWVEN uFetti Blower, we wish it will bring you lots of exciting moments. Please read the following user’s manual carefully before operating this product. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards.

  • Page 4: Technical Specifications

    Description Δ uFetti Blower CB16 is DMX controllable acompact confetti launcher, equipped with high speed blower and a 9L automatic confetti dosing hopper. Operator can adjust the confetti output density by DMX even under running status. It can be widely used in indoor, outdoor and various special applications.
  • Page 5 Structure Δ 1. Mount bracket (3- 12mm holes for clamp) 2. Angle adjustment knob screw 3. Confetti hopper lid 4. Handle 5. Side air Inlet 6. Mount bracket installation hole M6 7. Output nozzle 8. Rear panel 9. Safety loop hole(2-M8) 10.

  • Page 6: Rear Panel

    Rear Panel Δ 1. LCD Screen 2. ARM Indicator Light 3. Power Switch 4. 5-pin XLR IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with DC5V power supply) 5. Power IN 6. 3-pin XLR IN/OUT 7.
  • Page 7 3. Main Interface uFetti Blower can be controlled by DMX or manually. Manual control disabled when there is DMX signal in. Click “MENU” in main interface, press and hold “RUN” to start the machine manually, press “STOP” to stop the machine, click “MONI” enter monitoring interface. REGION ITEMS RANGE...
  • Page 8 6. Menu Interface Press “MENU” enter menu interface, press “LEFT”, “RIGHT” enter different items, press “BACK” switch back to main interface. Menu Explanation MAIN Main menu ADVANCED Advanced menu Factory menu (for factory use only, password is required FACTORY to enter) BACK Back to main interface LEFT...

  • Page 9: Operation

    DMX CONTROL Δ uFetti Blower CB16 occupies 1 functional channel CH1 and a separate safety channel CH-S (this channel is independent from functional channel, can be shared with other machine). Channel Function Value 0~9: NO output Output (hopper 1) 10~255: Hopper 1 output increase...
  • Page 10 2.1 Install on flat surface. 2.1.1 Install the mount bracket 2..1.2 Place the uFetti Blower CB16 to desired angle by rotating the bracket to the bottom side of the machine and tighten the knobs on both sides. NOTICE: CB16 can be located on the surface at the angle betweet 0 ~37...
  • Page 11 2.2 Mount below a truss 2.2.1 Install the mount bracket on top of machine as below, screw a clamp on top of the braket through M10 hole. Make sure that the clamp is strong enough for machine and confetti inside it. 2.2.2 Mount the clamp on a truss and secure with a qualified safety rope.
  • Page 12 2.3 Mount on a truss 2.3.1 Screw the clamps to the threaded M10 holes on the bottom of machine. 2.3.2 Mount the clamps on a truss and secure with a qualified safety rope.
  • Page 13 For distance >200m please use SHOWVEN DMX splitter 8 to amplify the signal. f) Assign DMX address for each unit of uFetti Blower. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine.

  • Page 14: Maintenance

    1. To maintain the machine in good performance and running status, it is recommended to running the device at least once per month. 2. To maintain the best performance of machine the hopper rollers (Part No. SFMET1163) need to be replaced after a period of use. Please contact SHOWVEN or your direct supplier for operation procedures.

  • Page 15: Optional Parts

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
  • Page 16 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
