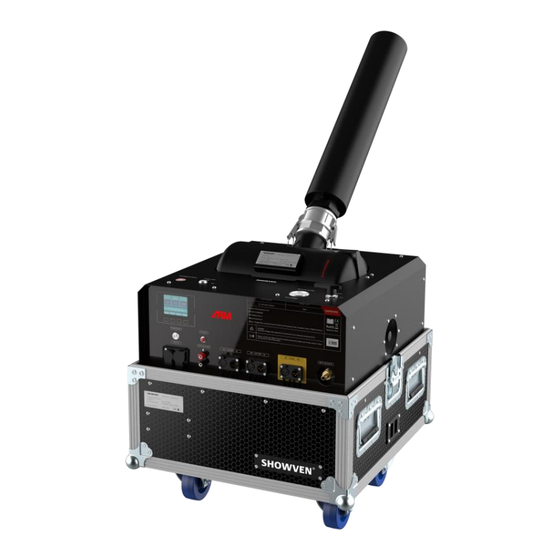

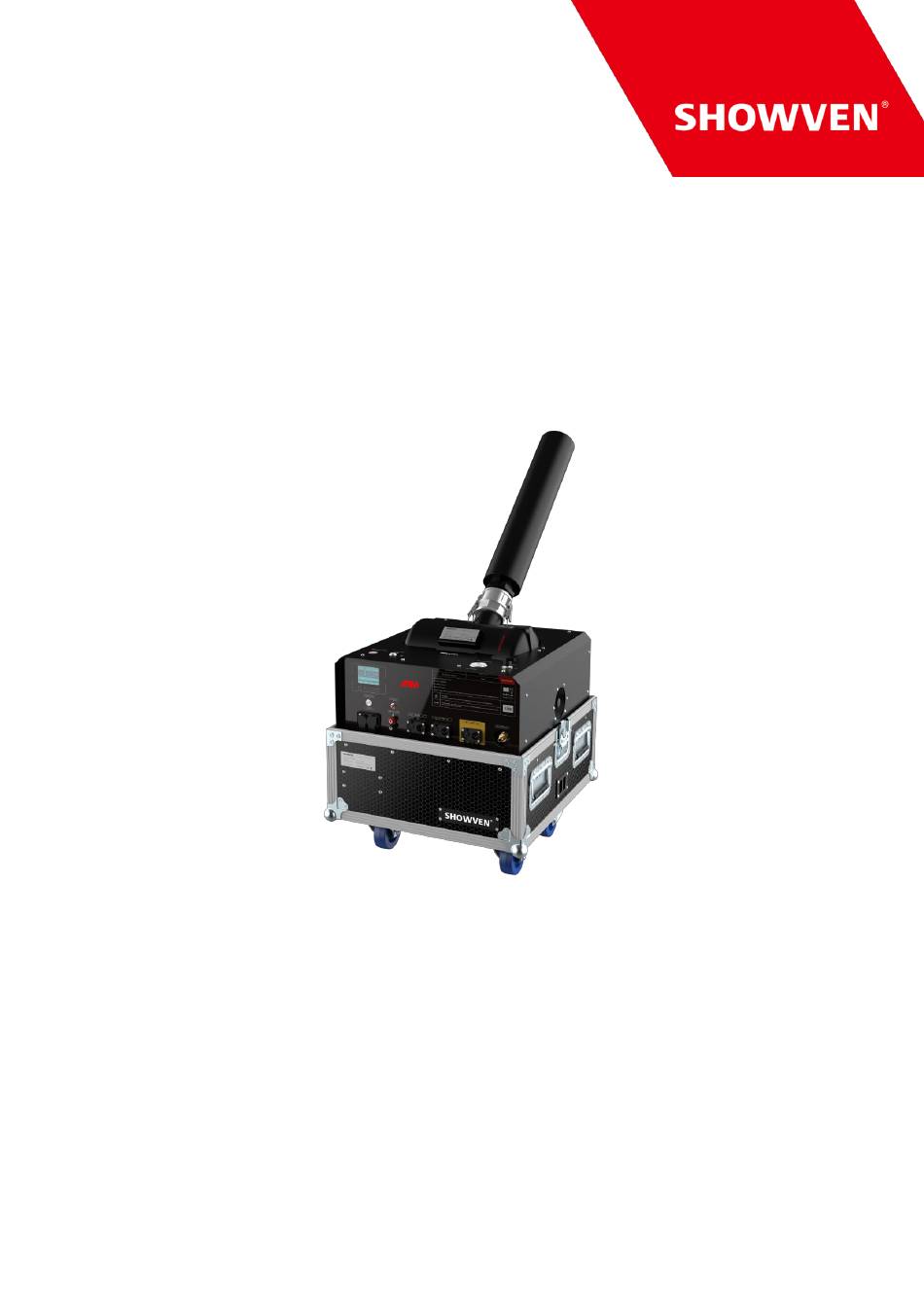

- Page 1 USER MANUAL uFetti Shooter CA12/CA36 V1.1 2024/06/07 SHOWVEN Technologies Co., Ltd...
-
Page 3: Safety Instructions
Thanks for choosing SHOWVEN uFetti Shooter, we wish it will bring you lots of exciting moments. Please read the following user’s manual carefully before operating this product. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards. -
Page 4: Technical Specifications
For faster pressurize of the tank, we reserve the external air coupling connector so that operator can use their own air compressor to fill the tank. To meet different output volume request, we developed tw o models uFetti Shooter CA12 and CA36 w it h diff er ent output capacity. Features Δ... - Page 5 Technical Specifications（CA36） Δ Model: uFetti Shooter CA36 Dimension: 730 645 880mm (with casters) Weight: 121kg Input: AC100-240V, 50/60Hz Work Power: 220W Interface: Color touch screen ARM Indicator Light: Yes Control: DMX , DC24V signal DMX: 3-pin and 5-pin DMX IN / OUT, 5-pin DMX IN support DC5V power supply for DMX receiver E-STOP Interface: Yes, can be connected in series with E-stopper (optional) adjustable Output Direction: -27 ~41 (12...
-
Page 6: Rear Panel
11. M8 Mounting Hole 12. Pressure Exhause Port NOTICE: Air compressor power switch indicator light: OFF: NOT pressurizing, means pressure in tank not reached set target pressure (not means no pressure inside) BLINK: Pressurizing ON: Pressure reached set targe pressure Rear Panel Δ... - Page 7 3. Main Interface 1. Status bar, 4 icons may appear in status bar : Safety key status icon, it appears when safety key switch to “USER MODE” :Auto pressurization icon, it appears when “automatic pressurizaiton” setting is ON : Battery volume : Charging icon, it appears when uFetti Shooter is charging 2.
- Page 8 5. Monitor Interface Press “MONI” can enter monitor interface, press “BACK” switch back to main interface. Menu Explanation Current pressure display Pressure DC voltage of the power supply DC Voltage Pressurization Enable ON means it is pressurizing or keep pressure Battery voltage BAT Voltage 6.
-
Page 9: Operation
Always inspect the machine thoroughly before operating it. WARNING: Do not use the uFetti Shooter if alterations have been made other than by or on behalf of SHOWVEN. WARNING: Make sure there are no objects that can be damaged by the machine within the output distance. - Page 10 2. Install uFetti Shooter 2.1 Bring the machine to desired location. 2.2 Lock all four casters of the machine. 2.3 Unlock and remove the flight case cover...
- Page 11 2.4 Take out the output pipe. 2.5 Adjust the output angle of output pipe, make sure angle plunger is locked. WARNING: Make sure the angle plunger is well locked in properly place. Not doing so can result in serious injury or death. 3.
- Page 12 c) Press and hold the reset button (as show in the red circle below) for 1s to activate battery. d) Install back the battery box plate. e) Charging: charging automatically when machine connected with AC power supply (no matter machine was powered on or not) WARNING: Install the battery with reverse polarity may cause short circuit, resulting in fire or explosion risk.
- Page 13 5. Output Pipe Installation 5.1 Pull the ring of self-locking quick coupler downwards. 5.2 Rotate the ring upward to release the lock 5.3 Place the output pipe in the quick coupler 5.4 Lock the output pipe in place with the locking clamps 5.5 Double confirm output pipe is well locked...
- Page 14 5.6 Connect the output pipe with tank through safety rope WARNING: Never use the machine if the clamps are not locked or working properly, it may result in serious injury or death. NOTICE: Check whether the rubber sealing ring of quick coupler in it’s position (it is a black circle ring) before install the output pipe.
- Page 15 For distance >200m please use SHOWVEN DMX splitter 8 to amplify the signal. f) Assign DMX address for each unit of uFetti Shooter. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine.
- Page 16 Activate the safety channel and enable device, the ARM indicator light blinking. b) Set the DMX value for the effect channel between 111-255 to firing or use SHOWVEN FXbutton or FXcommander to firing. Pyro signal control: a) Match the FXcommander / PyroMote with PyroSlave.
- Page 17 10. Power OFF and clean up a) Open the vent valve to release the pressure and make sure the gauge pressure is o bar. b) Switch the safety key to TEST MODE c) Power OFF uFetti Shooter, disconnect power and/or DMX cables. d) Rotate the tank / output pipe to vertical up position (0 degree).
-
Page 18: Maintenance
h) Place and lock the flighcase cover. i) Release the brakes for casters. Maintenance Δ 1. Air fliter replacement This machine is equipped with a built-in air compressor. Depending on the use environment, the maintenance cycle is not an absolute time. In a relatively clean environment with less dust, maintenance is recommended every 12 months;... - Page 19 Disassemble the air filter Remove the top cover of air filter with straight screwdriver Replace the internal fliter cotton Install back the filter cover, air filter and handle. NOTICE: The air compressor will be quite hot after running, It is recommended to replace the air filter half an hour later after the air compressor stops.
- Page 20 Optional Parts for uFetti Shooter Δ 1 uFetti Blower CA12 Part. No. Description pcs / unit SFCAB258 EU NEUTRIK PowerCON TRUE1 cable - 3m SFCAB051 US NEUTRIK PowerCON TRUE1 cable - 3m RMMET641 Built-in air compressor filter (CA12 CA36) RMMET618 CA12 pressure cap RMMET620 CA12 lifting core...
-
Page 21: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 24 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
