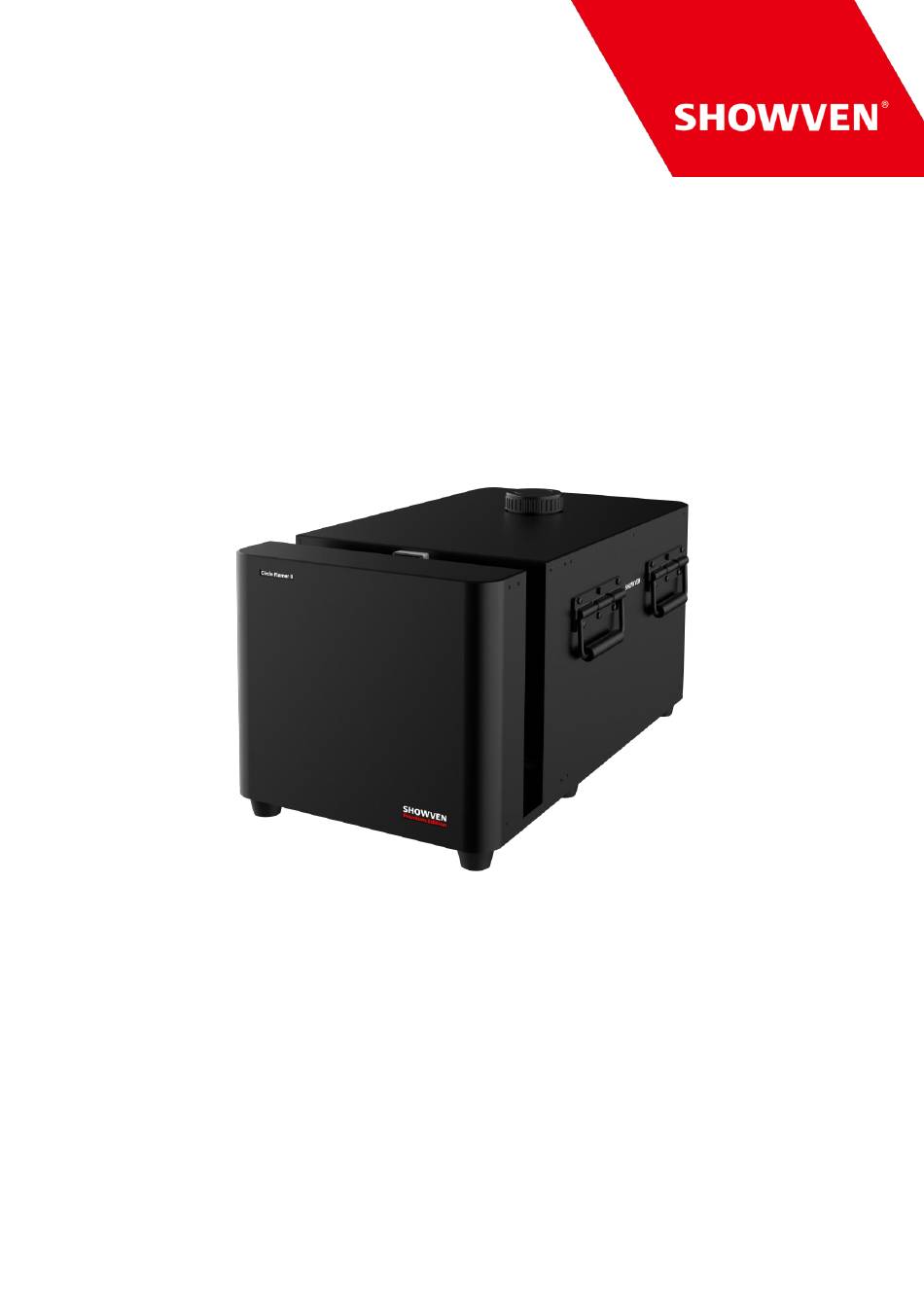

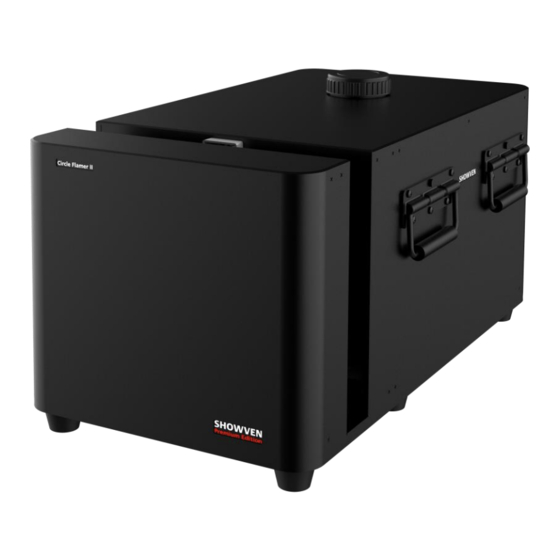

- Page 1 USER MANUAL Circle Flamer II V1.1 2024/06/26 SHOWVEN Technologies Co., Ltd...
-
Page 3: Safety Instructions
Thanks for choosing SHOWVEN Circle Flamer II, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this device. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards. -
Page 4: Technical Specifications
Technical Specifications Δ Model: Circle Flamer II Housing Material: Die-casting Aluminum Dimension: 610 330 330mm Weight: 35kg Input: AC100-240V, 50/60Hz Work Power: 550W Battery Powered: Yes, 16pcs 18650 cells, 24h standby Ignition: Dual, high voltage electron ignition Flame Monitoring: Yes... - Page 5 Structure Δ 1. Rear panel 2. Top panel 3. Handle 4. Fire box 5. Igniter (Dual) 6. Nozzle 7. Flame monitor 8. Fuel tank lid Diagram of bottom panel...
-
Page 6: Rear Panel
7. 5-pin XLR IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with DC5V power supply) 8. 9-60V pyro signal port 9. E-stop interface 10. ARM indicator light Display and setting Δ 1. Welcome interface Software Version Circle Flamer II-240520 Serial Number *********** Pump Run Time 00:00:00 Ignition Times 2. Main interface... - Page 7 1.) Status Bar : appears when “Flame Monitor” is “ON” : appears when “Flame Monitor” is “ON” and detected successful ignition : appears when “External Trigger” is “ON” : appears when “safety switch” stay at “USER MODE” : it appears when machine is charging : battery volume : No battery or battery box not connected 2.) Data Bar...
-
Page 8: Monitoring Interface
Nozzle not arrived designed postion on Check the nozzle and restart machine E4 Motor Err time Charge for the battery. if still appear Battery voltage abnormal E5, battery might be damage please E5 Bat Err replace battery Machine slant over 45° , it stops Tip setting set to OFF, or horizontal E6 Tip Err running... - Page 9 9. Advanced menu Select “ADVANCED” in menu interface, press “EDIT” enter advanced menu. Use UP / DOWN / SAVE to change the parameters. Default Items Contents Description External Trigger OFF / ON Trigger through 9-60V pyro ignition signal Set Ext Sequence 1-89 Preset sequence triggered by pyro signal ON: Channel 1=0, Firing head will back to...
-
Page 10: Firing Angles
Motor Run Test 4 Firing Angles: Δ The firing angle for CIRCLE FLAMER II is ± 105° , from the Audience Side view, there are altogether 15 firing angles as below. Drive time for Effects: Time needed for the motor drive from NO.8 to relevant angle. - Page 11 CIRCLE FLAMER II Firing Sequences Δ CIRCLE FLAMER II has 88 preset sequences, operator use related channel DMX value or sequence No. to access certain sequence. Below, you can find sequence list and single ignitions. Single Ignition Sequence List Sequence...
- Page 12 7.78s Step from 1-15 LONG flame Step sequence L -> R 105-107 7.78s Step from 15-1 LONG flame Step sequence R -> L 108-109 1.82s Step 5>8>11 LONG flame Step sequence L -> R 110-112 1.82s Step 11>8>5 LONG flame Step sequence R ->...
-
Page 13: Dmx Control
8(0° ) Single Ignition LONG flame Static max. 8s 227-255 DMX CONTROL Δ Circle Flamer II occupies 6 functional channel. Channel Function Value 0~255: angle change from -105° to 105° Manual Angle setup 128: straight upward (0° ) Manual Nozzle Waving... -
Page 14: Operation
Δ 1. Safety distance explanation Safety distance for CIRCLE FLAMER II divided into two parts safety radius around machine (a) and safety distance at firing direction (b). No person and flammable materials are allowed to stay inside the safety isolation zone when flamer was armed. - Page 15 2. Battery for Circle Flamer II Circle Flamer II can be powered through 16 pcs of 18650 cells. New Circle Flamer II come only with battery compartment, customer need to get 18650 cells locally. The battery we suggest to use is with...
- Page 16 New Circle Flamer II supplied with a nozzle PM which generate up to 10m flame. b) Horizontal installation is preferred for Circle Flamer II. If need to install Circle Flamer in angles, to avoid fake error message please turn the TIP Setting and Low fuel switch to OFF status first. Circle Flamer with maximum tilt angle of 45°...
- Page 17 If control by DMX controller, follow below steps: a) Connect a DMX cable to the DMX IN socket of first unit of Circle Flamer II, another head of this DMX cable connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.
- Page 18 If control by 9-60V pyro signal, follow below steps: a) Connect a power cable to the POWER IN socket of Circle Flamer II. Connect the other end of power cable to the power source. Make sure power supply in consistent with the rated voltage of the equipment, and the socket must well grounded.
- Page 19 Nozzle Replacement and Igniter Position Adjustment Δ Nozzle Types and Flame Height Nozzle Type Picture Short Flamer Height (m) Long Flame Height (m) Nozzle H 7-9m 10-12m SFSMA026 Nozzle PM 5-7m 8-10m SFSMA028 Nozzle L 3-5m 6-8m SFSMA024 Nozzle EL SFSMA027 3-4m 4-6m Nozzle Replacement...
-
Page 20: Maintenance
WARNING: Do unplug the power cable and power off the machine when service flamer. Nozzle Installation Please assemble the stailess steel gasket, O ring and nozzle main part according to below picture. The O ring should be inside the stailess steel gasket, otherwise it may leads to fuel leakage. Use nozzle replacement tool outer hexagon socket wrench to tighten the nozzle. - Page 21 WARNING: Please pay attention to the tightening torque of the fuel drain screw. It should not exceed 10N*m, otherwise, the fuel tank will be damaged. This operation is prohibited for non-professionals. Optional Parts for Circle Flamer II Δ Part. No.
-
Page 22: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 24 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
