● Operate the product by observing its outlet operating pressure ranges.
2. Residual pressure measures
● Connect a 3-port valve to the OUT side of the booster regulator if the residual
pressure must be released quickly from the outlet pressure side for maintenance,

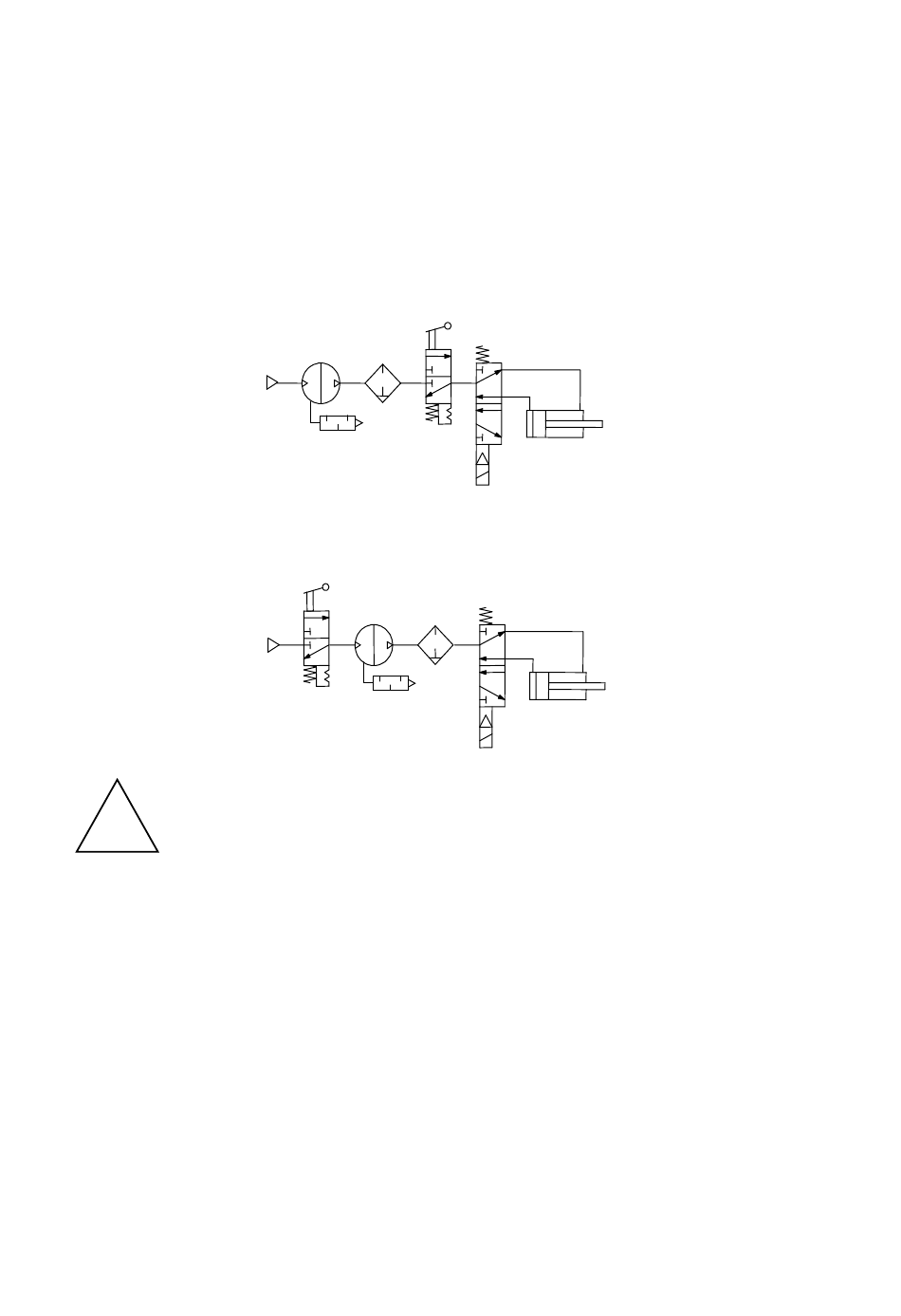

etc. (Refer to the diagram below.) The residual outlet pressure side cannot be
released even if the 3-port valve is connected to the IN side because the check
valve in the booster regulator will activate.
● Discharge the inlet charge pressure after the operation. It stops the operation
of the booster regulator and prevents unnecessary air consumption.
Caution
!
1. System configuration
● Select an inlet piping size with a sufficient margin.
Since the booster regulator is a compressor powered by the air, it consumes
the air. The air consumption is approx. 0.72 times larger than the outlet side
volume. Therefore, the booster regulator requires a supply capacity of the
inlet side volume that is approx. 1.72 times larger than the outlet side volume.
● Ensure sufficient air charge capability of the min. operating pressure (0.2 MPa)
or more. The switching valve may not operate when the internal operating
pressure is equal to the min. operating pressure or less.
