- Page 1 Doc. no.VBA*-OM0252Q PRODUCT NAME Booster Regulator MODEL / Series / Product Number VBA10A-02-X3239 VBA11A-02-X3239...
-
Page 2: Table Of Contents
Contents Safety Instructions･････････････････････････････････3,4 1. Descriptions of the components･･････････････････5 2. External dimensions drawing･････････････････････6 3. Specifications･･････････････････････････････････6 4. Design････････････････････････････････････････7,8 5. Selection･･････････････････････････････････････8,9 6. Mounting･･････････････････････････････････････9 7. Piping･････････････････････････････････････････9,10 8. Air supply･･････････････････････････････････････10 9. Operating environment･･･････････････････････････10 10. Handling･･･････････････････････････････････････11 11. Troubleshooting by end user･･････････････････････11,12... -
Page 3: Safety Instructions･････････････････････････････････3,4
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
-
Page 5: Descriptions Of The Components･･････････････････5

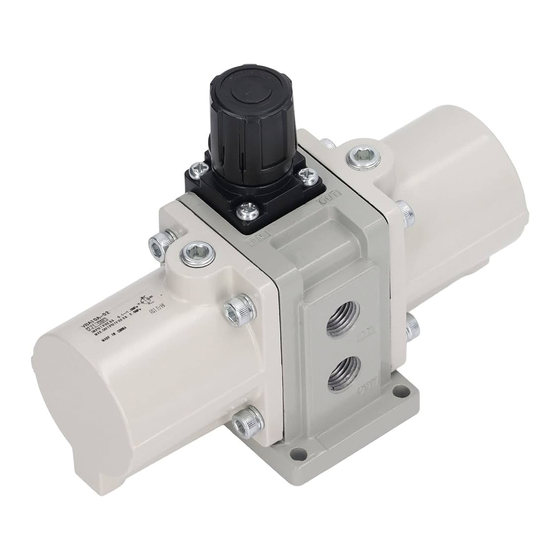

1.Description of the components VBA10A-02*-X3239 Exhausting hole Exhausting Hole IN port OUT port Tank connecting Mounting holes(x4) hole OUT port VBA11A-02*-X3239 Exhausting hole Exhausting hole IN port OUT port Tank connecting hole Mounting holes(x4) OUT port - 5 -... -
Page 6: External Dimensions Drawing･････････････････････6
2.External Dimensions drawing VBA10A-02*-X3239 VBA11A-02*-X3239 3.Specifications Model VBA10A VBA11A 2.0（fixed） 4.0（fixed） Pressure increase ratio 0.4～1.4MPa 0.8～2.0MPa Outlet pressure range 0.2～0.7MPa 0.2～0.5MPa Inlet pressure range Proof pressure 2.1MPa 3.0MPa 250L/min(ANR) 90L/min(ANR) Max. flow rate (IN=OUT=0.5MPa) (IN=OUT=0.5MPa) Ambient and operating fluid 2～50℃（No freezing） temperature Grease（Non-lube）... -
Page 7: Design････････････････････････････････････････7,8
4.Design △ ！ Warning Warning concerning abnormal outlet pressure If there is a likelihood of causing an outlet pressure drop due to unforeseen circumstances such as equipment malfunction, thus leading to a major problem, take safety measures on the system side. ... -
Page 8: Selection･･････････････････････････････････････8,9
△ ！ Caution System configuration Ensure sufficient air charge capability of the minimum operating pressure (0.2 MPa) or more. The switching valve may not operate when the internal operating pressure is equal to the minimum operating pressure or less. ... -
Page 9: Mounting･･････････････････････････････････････9
outlet side volume. When operating the booster regulator continuously for longer periods of time, particularly confirm its service life. The life expectancy of the booster regulator does not depend on the operating period but on the cycles of operation (piston sliding distance). The cycles of operation (piston sliding distance) are decided by the flow rate on the outlet side of the booster regulator, so if the flow rate on the outlet side of the booster regulator is large, the product reaches the life time in a short period of time. -
Page 10: Air Supply･･････････････････････････････････････10
booster regulator, they could cause the booster regulator to malfunction or its durability could be affected. Piping size To bring the booster regulator’s ability into full play, make sure to match the piping size to the port size. If the piping is too thin, the function will be reduced due to the pressure loss. Piping ... -
Page 11: Handling･･･････････････････････････････････････11
10.Handling Draining If this product is used with a large amount of drainage accumulated in the filter, mist separator or tank, the drainage could flow out, leading to equipment malfunction. Therefore, drain the system once a day. If it is equipped with an auto drain, check its operation once a day. - Page 12 ･Check where the air is leaking Operation Air is leaking from the Beginning doesn’t stop. equipment or piping on the from and fix it. downstream side of the outlet. Sealing is worn out or Middle Change the seals. broken due to intrusion of Later foreign matter or lubrication running out.
- Page 13 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2019 SMC Corporation All Rights Reserved - 13 -...
