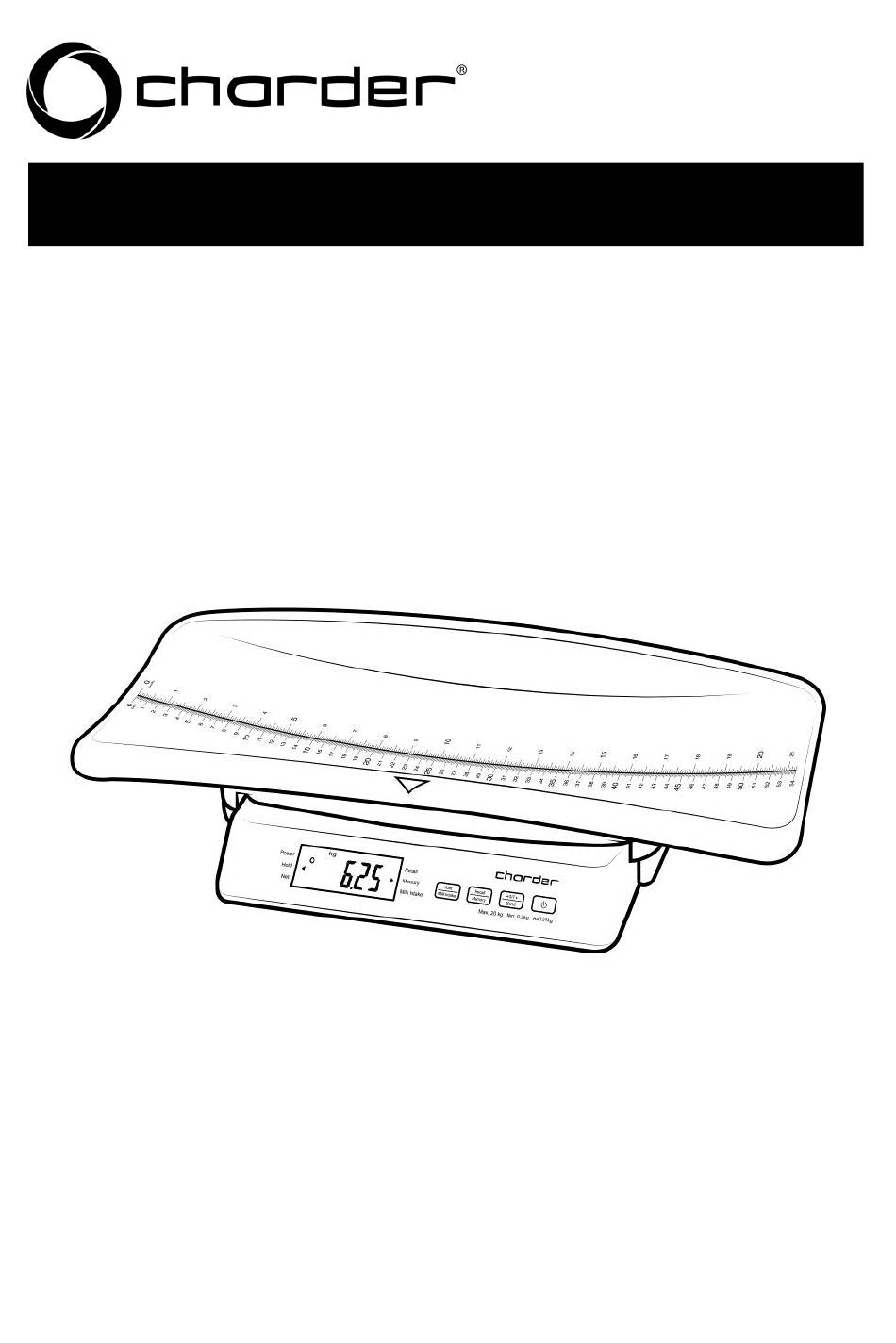

- Page 1 Infant Scale USER MANUAL MS3510 Infant Scale Please keep the instruction manual at hand and follow instruction for use.
-
Page 2: Table Of Contents
CONTENTS I. Explanation of Graphic Symbols on Label/Packaging 3 II. Copyright Notice ............5 III. Safety Notes ............6 A. General Information ..........6 B. EMC Guidance and Manufacturer's Declaration ... 9 IV. Installation ............. 13 A. Attaching tray ............13 B. -
Page 3: Explanation Of Graphic Symbols On Label/Packaging
I. Explanation of Graphic Symbols on Label/Packaging Meaning Text/Symbol Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use. - Page 4 Device complies with EC directives (verified models only) M: Conformity label in compliance with Directive 2014/31/EU for non-automatic weighing instruments 20: Year in which conformity verification was performed and the CE label was applied. (ex: 16=2016) 0122: Identifier for metrology Notified Body Device is a Class III scale in compliance with Directive 2014/31/EU (verified models only) Name and address of entity importing device (if applicable)
-
Page 5: Copyright Notice
Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent. -
Page 6: Safety Notes
III. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. -
Page 7: Safety Instructions
(b) Minimum knowledge: - To be able to read at a high-school level and understand Arabic numerals (e.g. 1, 2, 3, 4...) - Basic hygiene knowledge - Trained in device's operation - Read the instruction manual (c) Language - Able to read the language of instruction manual and on-screen instructions (d) Qualifications - No special certifications or qualifications required... - Page 8 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.
-
Page 9: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Electromagnetic Emission test Compliance... - Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic Immunity test test level level environment-guidance...
- Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that is used in such and environment. IEC 60601 Compliance Electromagnetic environment- Immunity test test level level guidance...
- Page 12 Recommended separation distance between portable and mobile RF communications equipment and the product The product is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the product can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the product as recommended below, according to the maximum output power of the communications equipment.
-
Page 13: Installation
IV. Installation A. Attaching tray 1. Slide tray onto device (arrow facing front). Note: The infant scale can be used in a standing position after removing the tray. 2. Lock protruding tab of tray into slot in platform 3. Assembly complete... -
Page 14: Using Battery
B. Using Battery The device can be powered by 4 AA alkaline batteries. -
Page 15: Indicator
V. Indicator A. Indicator and Key Functions Key Function Power on or power off. Reset display to 0.00 kg. *(Press and hold) Send data (Press once) Recall saved weight (Press and hold) Save current weight (Press once) Hold (lock) weight (Press and hold) Activate Milk Intake function... -
Page 16: Display Layout
B. Display layout [Power] when device is powered by USB port [Hold] when Hold function is active [Net] when Net weight is displayed [Recall] when saved weight is recalled for viewing [Memory] when weight has been saved [Milk Intake] when milk intake result is being displayed Weight stable indicator Zero Battery status:... -
Page 17: Basic Operation
VI. Basic Operation 1. Turn on device by pressing . When "0.00 kg" appears on screen, device is ready for use. Note: If "0.00 kg" does not display on indicator, press to reset the device to zero before use. 2. Place subject upon measurement platform. After weight has stabilized, "stable"... -
Page 18: Milk Intake
C. Milk Intake Follow instruction as below for milk intake measurements. Instruction Display Press to turn on device. Place the infant on the tray (infant weighs 6 kg before feeding) Press and hold 3 seconds to saved baby weight. symbol next to “Memory” will appear if the infant’s weight has been successfully saved. - Page 19 Press and hold 3 seconds Display will switch between milk intake weight (0.25 kg) and infant weight (6.25 kg). After the measurement is completed, the saved weight must be cleared before next measurement. Remove all weight from tray, And press to return to normal mode.
-
Page 20: Send
D. Send If you have purchased the wireless version of this device, it can transmit measurement results to compatible software. Please consult software instructions explaining how to connect to device. When the product successfully connects to software, icon lights up; if disconnected, the icon disappears. -
Page 21: Device Setup
VII. Device Setup When device is switched off, press and hold . You will hear one beep. Without releasing , press 3 times, then release both keys. Screen will display software version, count value, and then "A_OFF” (first option in the setting menu). In device setup: : Previous menu option : Next menu option... - Page 22 Backlight: Toggle backlight for better visibility in low-light environments. Backlight options: Auto / On / OFF Press to toggle between on/off. Press to confirm selection. Auto-Hold: Automatically hold weight results when weighing. Press to toggle between on/off. Press to confirm selection. Auto-Send: Automatically send weight results.
-
Page 23: Troubleshooting
VIII. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries. ◼ 2. Indicator showing "00000" ZERO SPAN out of range Interference due to factors such as RF disturbance or ground ◼... -
Page 24: Error Messages
Error Messages Error Message Reason Action Low battery warning Replace batteries Voltage of battery is too low to operate device Overload Reduce weight on Total load exceeds device's measurement platform and maximum capacity try again Tilted Angle Carefully place device on a Tilt angle exceeds 3% flat and smooth surface. -
Page 25: Product Specifications
IX. Product Specifications A. Device Information Model MS3510 20 kg model 0-20 kg x 10g Capacity 0-20 kg x 20g 50 kg model 20-50kg x 50g 20 kg 0-20 kg ±10g Weight model Accuracy Measurement 0-20 kg ±20g 50 kg... - Page 26 Notes _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________...
- Page 27 Notes _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________...
-
Page 28: Declaration Of Conformity
X. Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: (EU) 2017/745 Regulation on Medical Devices 2014/31/EU Non-automatic Weighing Instruments Directive (OIML models only) RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Radio Equipment Directive 2014/53/EU (applicable if wireless module is used)
