Manufacturer's Declaration of Conformity
This product has been manufactured in accordance with
the harmonized European standards, following the
provisions of the below stated directives:
93/42/EEC as amended by 2007/47/EC
Medical Device Directive
Please see separate document showing on sticker of device for
above CE marking.
Authorized EU Representative:
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City, 412 Taiwan (R.O.C.)
FDA no.: D051882
IN-0988 [7011Q] 04/2016
-31-
Please keep the instruction manual at hand all the time for future reference.
-0-

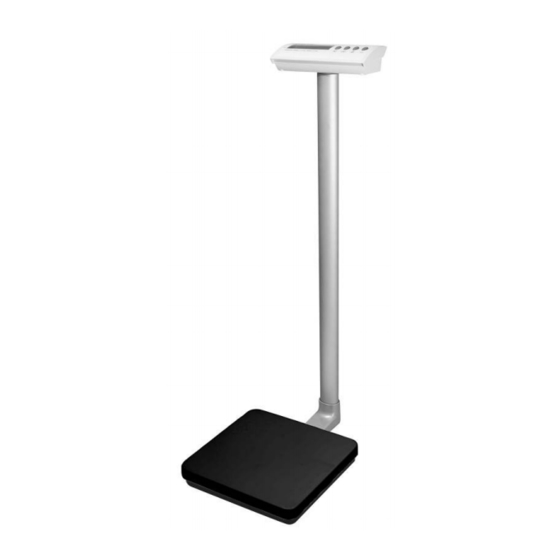

MS3400/MS3400-1
Medical Scale
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS3400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Charder MS3400

  • Page 1 Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., MS3400/MS3400-1 Taichung City, 412 Taiwan (R.O.C.) Medical Scale FDA no.: D051882...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS NOTE PREFACE ....................2 GENERAL INFORMATION ..............2 SAFETY INSTRUCTION ................ 2 ELECTROMAGNETIC COMPATIBILITY..........3 WARRANTY-LIABILITY................ 3 DISPOSING OF THE SCALE ..............4 EXPLANATION OF THE GRAPHIC SYMBOLS........5 EMC guidance and manufacturer's declaration .......... 7 SPECIFICATIONS ..................11 STANDARD ACCESSORIES ..............
  • Page 3: Preface

    PREFACE Possible hardware defects include: Uneven brightness in the LCD Thank you for choosing CHARDER MEDICAL product. All features of this display screen & texts color blurred, smeared rainbow screen, product were designed to state of the art and are optimized for simple and incorrect decimal display straightforward use.
  • Page 4: Electromagnetic Compatibility

    2. Indicator showing “0000” ZERO SPAN out of range standards. If you have any problem, contact your local CHARDER MEDICAL service Incorrect weighing result - Avoid damages by external environment partner. force such as free-drop to the ground, collision by external objects, etc.
  • Page 5: Disposing Of The Scale

    Our warranty service program includes the following: change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides 1. Technician repair service under warranty or at a service and individual warranty, this means that the unit supplied will be free maintenance charge depending on the workmanship for the of faults for the length of the warranty period.
  • Page 6: Explanation Of The Graphic Symbols

    Over Zero If zero count is high than the setting Charder Electronic Co., Ltd. range, the display will show “Err” message. The scale will shut off if the No.103, Guozhong Rd., Dali Dist., status lasts 30 seconds.
  • Page 7 Carefully read this operation manual before setup and commissioning, even if you are already familiar with Charder scales. +60°C 3. Measured result can be read at the place pointed by arrow. Transport and storage temperature limit indicating the upper and the lower limit -20°C...
  • Page 8: Emc Guidance And Manufacturer's Declaration

    EMC guidance and manufacturer's declaration MEASURING UNDER 131 cm Guidance and manufacturer’s declaration-electromagnetic emissions The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance...
  • Page 9 INSTRUCTION OF USING HM201M Guidance and manufacturer’s declaration-electromagnetic immunity MEASURING OVER 131 cm The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity ASSEMBLE WITH HM201M HEIGHT ROD The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that is used in such and environment. Immunity test IEC 60601 Compliance Electromagnetic...
  • Page 11 Recommended separation distance between Portable and mobile RF communications equipment and the MS-3400-1 CALIBRATION PROCEDURE The MS-3400-1 is intended for use in the electromagnetic environment in which Keep pressing ON/ZERO/OFF and press UNIT/WEIGHT 3 radiated RF disturbances are controlled. The customer or the user of the times simultaneously.
  • Page 12: Specifications

    Place the tare object (additional loads or clothes) onto the SPECIFICATIONS tread platform. Model MS 3400 / MS 3400-1 (DP 2700) Press [TARE] key after the weight stabilizes and stable sign Capacity 300 kg x 0.1 kg displays. Remove the tare object from the platform first, so Accuracy ±150g the display will return to zero for the second time weighing of...
  • Page 13: Standard Accessories

    STANDARD ACCESSORIES HOW TO USE HOLD FEATURE Accessories Item Spec By using the HOLD function the identified weight will be stored and is M4 Screw M4*0.7*15 shown on the display even if you stepped already off the scale. Press ON/ZERO/OFF to turn on the scale. Step on the scale, wait until stable zero symbol O appears.
  • Page 14: Medical Scale Models Approval List

    MEDICAL SCALE MODELS APPROVAL LIST KEY FUNCTIONS The Medical Scales MS3400-1 listed below are the certified models under the Council Directive for standard of 2007/47/EC safety, health protection and accurate metrology characteristics of medical scales: PRODUCT PRODUCT MODEL NO. CLASS...
  • Page 15: Power Adaptor Standards

    POWER ADAPTOR STANDARDS DRAWING NO.: CE APPROVED TYPE NO. TYPE VOLTAGE / MODEL NO.: 9V DC 100mA AD-038A REV 007 D41W1090100-13/1 9V DC 100mA AD-0484 REV 001 D35W090100-23/1 9V DC 100mA AD-0484 REV 001 SP35-90100 9V DC 100mA AD-037A REV 003 D41WK090100-13/2 9V 200mA AD-8082A REV 001...
  • Page 16: Scale Assembly

    SCALE ASSEMBLY 3. Arrange the cable along the gap in the column seat. 1. Plug the column into the column seat. 2. Screw in three M4*0.7*15 screws. 4. Cover the bottom cover and screw in four M4*0.7*8 screws -15- -16-...
  • Page 17 Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., MS3400/MS3400-1 Taichung City, 412 Taiwan (R.O.C.) Medical Scale FDA no.: D051882...
  • Page 18: Key Functions

    TABLE OF CONTENTS NOTE PREFACE ....................2 GENERAL INFORMATION ..............2 SAFETY INSTRUCTION ................ 2 ELECTROMAGNETIC COMPATIBILITY..........3 WARRANTY-LIABILITY................ 3 DISPOSING OF THE SCALE ..............4 EXPLANATION OF THE GRAPHIC SYMBOLS........5 EMC guidance and manufacturer's declaration .......... 7 SPECIFICATIONS ..................11 STANDARD ACCESSORIES ..............
  • Page 19: Preface

    PREFACE NOTE Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating instructions, please contact your CHARDER MEDICAL service partner, or visit us on the Internet at www.chardermedical.com...
  • Page 20: Electromagnetic Compatibility

    Do not exceed the maximum values specified in the applicable standards. Possible hardware defects include: Uneven brightness in the LCD If you have any problem, contact your local CHARDER MEDICAL service display screen & texts color blurred, smeared rainbow screen, partner.
  • Page 21: Disposing Of The Scale

    Interference due to RF disturbance, ground vibration…etc. functioning shall be rendered null and void. If CHARDER provides Unstable platform feet adjustments according to bubble level and individual warranty, this means that the unit supplied will be free indication of faults for the length of the warranty period.
  • Page 22: Explanation Of The Graphic Symbols

    Charder Electronic Co., Ltd. Before you contact our Authorized Dealer in your country for technician repair service, please read through the following section carefully: No.103, Guozhong Rd., Dali Dist.,...
  • Page 23 Over Load even if you are already familiar with If the total load exceeds the maximum Charder scales. capacity of scale, the display will show the “Err” message. The weight must be removed from the platform right away.
  • Page 24: Emc Guidance And Manufacturer's Declaration

    EMC guidance and manufacturer's declaration MEASURING UNDER 131 cm 1. Fold the plate and press Guidance and manufacturer’s declaration-electromagnetic emissions the buckle. The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance...
  • Page 25 INSTRUCTION OF USING HM201M Guidance and manufacturer’s declaration-electromagnetic immunity MEASURING OVER 131 cm The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
  • Page 26 Guidance and manufacturer’s declaration-electromagnetic immunity ASSEMBLE WITH HM201M HEIGHT ROD The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that is used in such and environment. Immunity test IEC 60601 Compliance Electromagnetic...
  • Page 27 Recommended separation distance between Portable and mobile RF communications equipment and the MS-3400-1 CALIBRATION PROCEDURE The MS-3400-1 is intended for use in the electromagnetic environment in which Keep pressing ON/ZERO/OFF and press UNIT/WEIGHT 3 radiated RF disturbances are controlled. The customer or the user of the times simultaneously.
  • Page 28: Specifications

    Place the tare object (additional loads or clothes) onto the SPECIFICATIONS tread platform. Model MS 3400 / MS 3400-1 (DP 2700) Press [TARE] key after the weight stabilizes and stable sign Capacity 300 kg x 0.1 kg displays. Remove the tare object from the platform first, so Accuracy ±150g the display will return to zero for the second time weighing of...
  • Page 29: Standard Accessories

    STANDARD ACCESSORIES HOW TO USE HOLD FEATURE Accessories Item Spec By using the HOLD function the identified weight will be stored and is M4 Screw M4*0.7*15 shown on the display even if you stepped already off the scale. Press ON/ZERO/OFF to turn on the scale. Step on the scale, wait until stable zero symbol O appears.
  • Page 30: Medical Scale Models Approval List

    MEDICAL SCALE MODELS APPROVAL LIST KEY FUNCTIONS The Medical Scales MS3400-1 listed below are the certified models under the Council Directive for standard of 2007/47/EC safety, health protection and accurate metrology characteristics of medical scales: PRODUCT PRODUCT MODEL NO. CLASS...
  • Page 31: Power Adaptor Standards

    POWER ADAPTOR STANDARDS DRAWING NO.: CE APPROVED TYPE NO. TYPE VOLTAGE / MODEL NO.: 9V DC 100mA AD-038A REV 007 D41W1090100-13/1 9V DC 100mA AD-0484 REV 001 D35W090100-23/1 9V DC 100mA AD-0484 REV 001 SP35-90100 9V DC 100mA AD-037A REV 003 D41WK090100-13/2 9V 200mA AD-8082A REV 001...
  • Page 32 SCALE ASSEMBLY 3. Arrange the cable along the gap in the column seat. 1. Plug the column into the column seat. 2. Screw in three M4*0.7*15 screws. 4. Cover the bottom cover and screw in four M4*0.7*8 screws -15- -16-...
