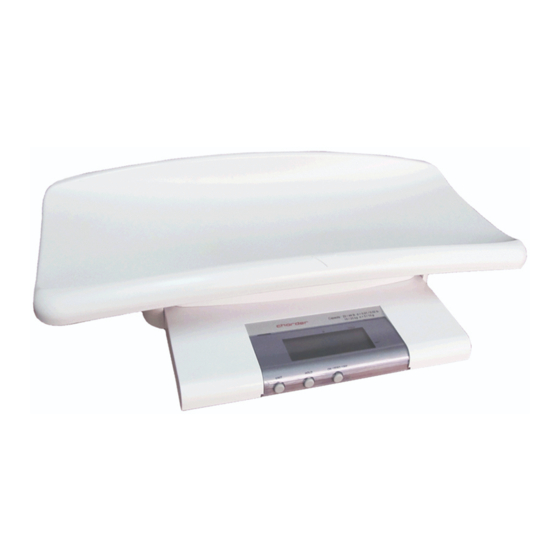

Charder MS 3500 User Manual
Infant scale
Hide thumbs
Also See for MS 3500:
- Service manual (23 pages) ,
- User manual (24 pages) ,
- User manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Charder MS 3500
Summary of Contents for Charder MS 3500

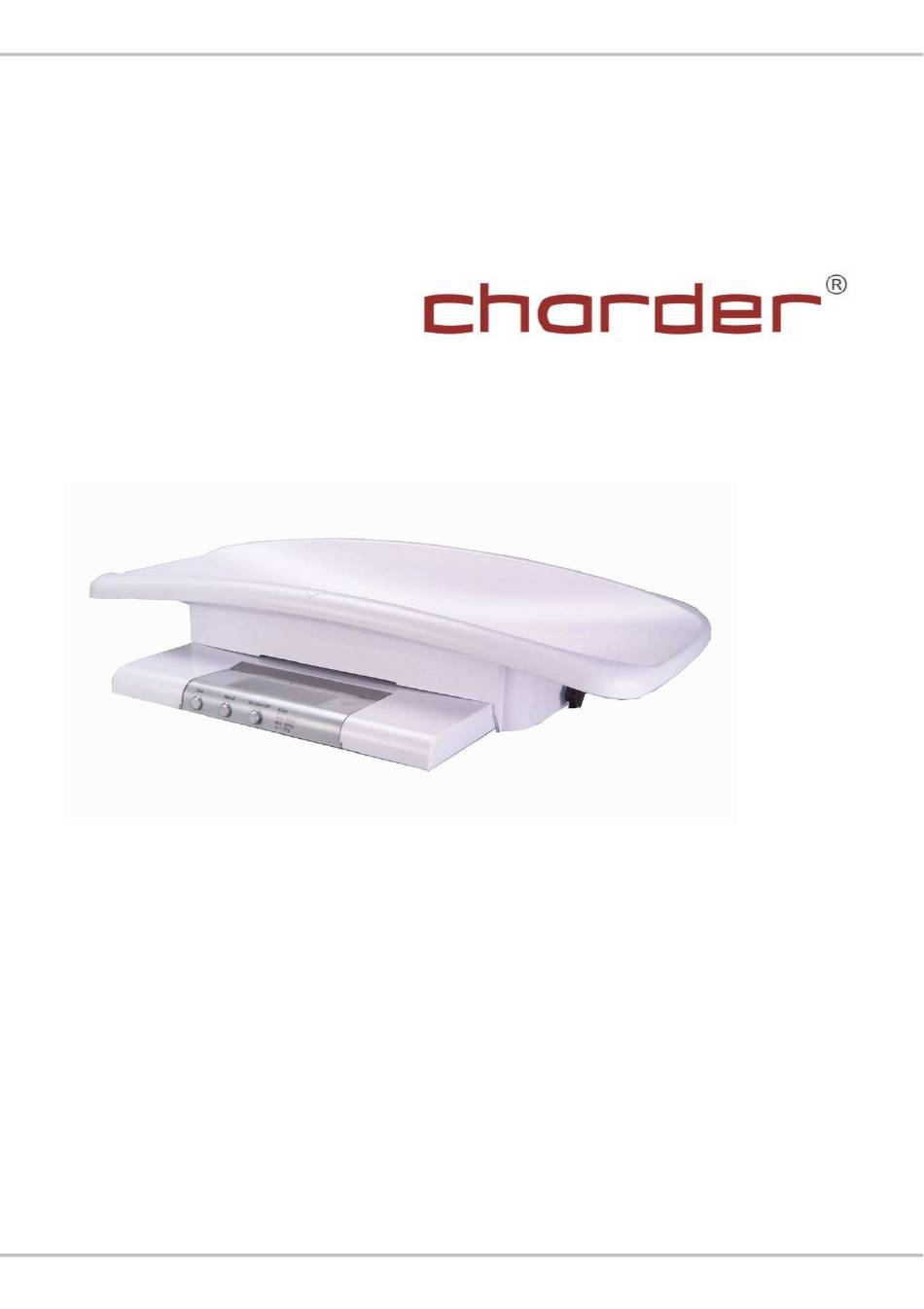

- Page 1 MS 3500 Infant Scale USER MANUAL Please keep the instruction manual at hand all the time for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE ..................... 3 GENERAL INFORMATION ............... 3 INTENDED USE ..................3 SAFETY INSTRUCTION ................3 ENVIRONMENTAL ..................4 CLEANING ....................4 MAINTENANCE ..................5 WEIGHING OPERATION ................5 WARRANTY-LIABILITY ................5 DISPOSING OF THE SCALE ..............6 EXPLANATION OF THE GRAPHIC SYMBOLS ........ -
Page 4: Preface
PREFACE Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating instructions, please contact your CHARDER MEDICAL service partner, or visit us on the Internet at www.chardermedical.com... -
Page 5: Environmental
Observe the permissible ambient temperatures for use The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values specified in the applicable standards. If you have any problem, contact your local CHARDER MEDICAL service partner. ENVIRONMENTAL All batteries contain toxic compounds; disposal of batteries should be delegated to a competent organisation, complying with the deposit of Poisonous Waste Regulation 1972. -
Page 6: Maintenance
WARRANTY-LIABILITY If a fault or defect is present on receipt of the unit which is within CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. -
Page 7: Disposing Of The Scale
If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period. -
Page 8: Explanation Of The Graphic Symbols
“Please note the accompanying documents“ or “Observe operating instructions” Identification of manufacturer of medical product including address Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) Type B applied part Carefully read this operation manual... -
Page 9: Emc Guidance And Manufacturer's Declaration
Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MS 3500 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS 3500 should assure that it is used in such an environment. Electromagnetic... - Page 10 If the user variations on UT) for 5 cycles of the MEDICAL SCALE power supply 70% UT(30% 70% UT(30% MS 3500 requires input lines IEC dip in UT) for 25 dip in UT) for 25 continued operation 61000-4-11 cycles cycles <5%...
- Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MS 3500 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS 3500 should assure that is used in such and environment. IEC 60601 test...
- Page 12 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE MS 3500 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE MS 3500 should be observed to verify normal operation.
- Page 13 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE MS 3500 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE MS 3500 can help prevent electromagnetic...
-
Page 14: Specifications
Function keys ON/ZERO/OFF, UNIT , HOLD Stabilisation Time 1-2 seconds Power supply 9V battery and 9V ~ 12V Charder AC adaptor 1.0” LCD display with 5 active digits Indicator display Dimensions Base: 340 x 330 x 50 mm (w x d x h) -
Page 15: Power Adaptor Standards
POWER ADAPTOR STANDARDS CAUTION: The device is only compatible with restricted power adaptors in dashed block below. DRAWING NO.: CE APPROVED TYPE TYPE Adaptor VOLTAGE NO. / MODEL NO.: plug 9V DC 100mA AD-038A D41W1090100-13/1 9V DC 100mA AD-0484 D35W090100-23/1 9V DC 100mA AD-037A D41WK090100-13/2... -
Page 16: Key Functions
KEY FUNCTIONS ON/ZERO/OFF: 1) Power on and power off the scale. 2) Zero the scale (±2% of full capacity). 3) Press this key for 3 seconds to power off the scale. HOLD: -For baby type Press this key to lock weight value while weighing. Disable the weight lock function by pressing HOLD key again. -
Page 17: Scale Assembly
SCALE ASSEMBLY 1. Installing the tray to proper location. 2. Upside down scale to screw tray and platform properly. - Page 18 3. Tighten the screw nut on both sides. 4. Assembly is completed.
-
Page 19: Instruction For Replacing Battery
INSTRUCTION FOR REPLACING BATTERY Upside down to spot battery housing. Take battery housing out of scale. - Page 20 The scale uses 9V battery. Installing 9V battery Put battery housing back to complete procedure.
-
Page 21: Power Supply By Ac Adaptor
POWER SUPPLY BY AC ADAPTOR... -
Page 22: Assembling Baby Heitht Rod
ASSEMBLING BABY HEITHT ROD First, fixing the bracket with screws [B] on baby tray. *Screw [A] is for client to ensure security of bracket and height rod. Bracket for baby tray Installing height rod with bracket until click. Screw set A is for client to ensure the security of height rod. -
Page 23: Error Message
ERROR MESSAGE Low Battery This warning shows that the voltage of battery is too low to use, please replace a new battery for operation. Over Load The load is over limit, please reduce the loading and try again. If the trouble still exists, please call your local service partner. -
Page 24: Troubleshooting
TROUBLESHOOTING Troubleshooting for defective modes: Original purchaser can enjoy the benefits under the effective Warranty against functional defects in material and workmanship subject to the terms and conditions listed in the yearly Warranty Program & Return Policy. Our warranty service program includes the following: 1. - Page 25 2. Indicator showing ZERO SPAN out of range Incorrect weighing result - Avoid damages by external environment force such as free-drop to the ground, collision by external objects, etc. Proper re-calibration procedure required to correct the setting of weighing accuracy. ...
- Page 26 2. LCD display faulty Possible hardware defects include: Uneven brightness in the LCD display screen & texts color blurred, smeared rainbow screen, incorrect decimal display LCD PIN broken or short circuit PCB cooper foil broken & loosed welding ...
- Page 28 93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1114 [9078M]...
