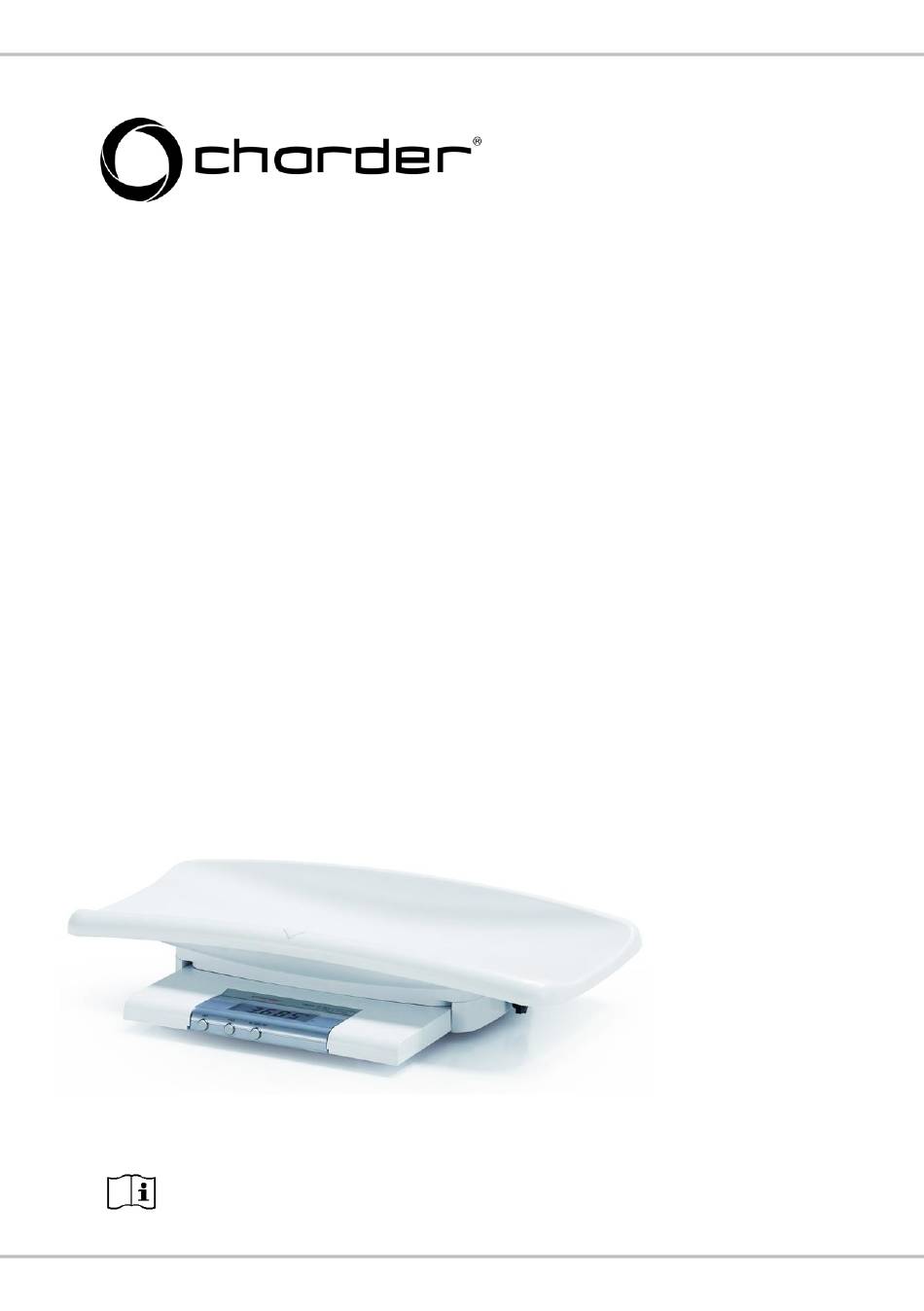

USER MANUAL
MS3500

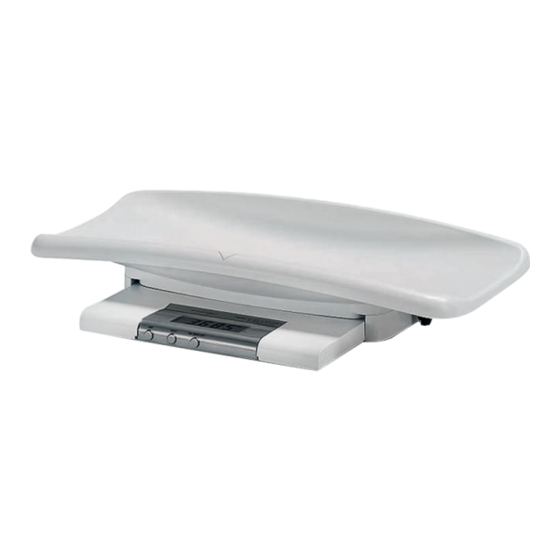

Infant Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS3500

Summary of Contents for Charder MS3500

  • Page 1 USER MANUAL MS3500 Infant Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
  • Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Attaching tray..............12 B. Height Measure Attachment ..........13 B. Inserting Batteries .............14 C. Using AC Adapter ...............15 III. Indicator ................15 A.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 All maintenance, technical inspections, and repairs should be  conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal This product is not to be treated as regular household waste, but ...
  • Page 7  Use only a correctly wired (100-240VAC) outlet, and do not use a multiple outlet extension cable.  Do not under any circumstances dismantle or alter the device, as this could result in electric shock or injury as well as adversely affect the precision of measurements.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS3500 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3500 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3500 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS3500 Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    II. Installation A. Attaching tray 1. Slide tray onto device 2. Turn device upside down. Secure tray to device by turning knob on each side of tray. (turn clockwise to tighten, turn counter-clockwise to loosen) 3. Device can now be used for measurement.

  • Page 13: Height Measure Attachment

    B. Height Measure Attachment 1. Attach bracket to device and baby tray, and fasten screws using screwdriver. Bracket 2. Connect height measure attachment to bracket. A clicking noise will be heard.

  • Page 14: Inserting Batteries

    B. Inserting Batteries 1. Locate battery cover on bottom 2. Take battery connector out from of device housing 3. Device uses 9V battery 4. Connect 9V battery to connector 5. Place battery into housing. Close cover and turn scale right-side up. Power on device to test if batteries are installed correctly.

  • Page 15: Using Ac Adapter

    C. Using AC Adapter Device can be powered via adapter using port located at rear of device. Plug adapter into device before plugging into mains. AC adapter port III. Indicator A. Indicator and Key Functions Key Functions 1. UNIT: Switch between kg/lb 2.

  • Page 16: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/ZERO/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ON/ZERO/OFF] key to zero the device.

  • Page 17: Device Setup

    removed from device. 5. To release the locked weight, press the [HOLD] key again to return to the device to normal mode. Note: Hold function can be activated before or after subject is placed on measurement platform. However, if subject finds it difficult to hold still, we recommend activating Hold after subject is placed on platform VI.
  • Page 18 Capacity: toggle maximum capacity (this function should only be changed by qualified distributors) Capacity options: 10 kg / 15 kg / 20 kg Press [UNIT] to toggle between options. Press [HOLD] to confirm selection. Gravity Compensation: activate or de-activate gravity compensation (this function should only be changed by qualified distributors) Gravity compensation options: on / off Press [UNIT] to toggle between on/off.

  • Page 19: Troubleshooting

    VII. Troubleshooting Product Defects Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries  If batteries are not used, check if the power adapter is plugged into ...
  • Page 20 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or...

  • Page 21: Product Specifications

    VIII. Product Specifications Model MS3500 Capacity / 0-10 kg x 5g Graduation 10-20 kg x 10g Accuracy ± 2e Weight Measurement LCD Screen 1.0-inch LCD screen (5 digits) Unit kg/lb Total 560(W) x 350(D) x 120(H) mm Dimensions Tray 560(W) x 290(D) x 65(H) mm...
  • Page 22 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 23 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 24: Declaration Of Conformity

    2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1114 9078O 03/2021...
