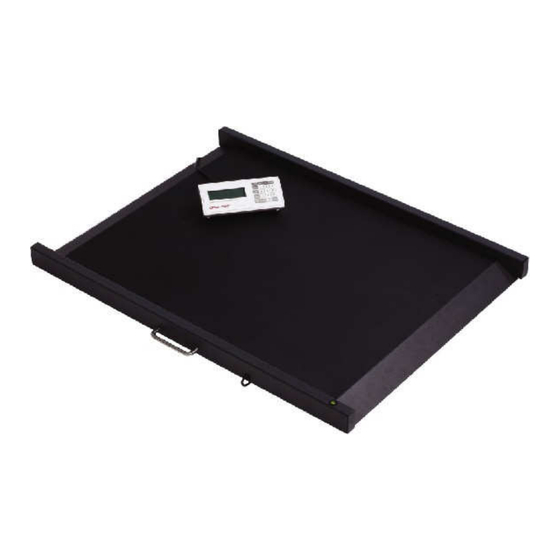

Charder MS 3800 User Manual

Medical scale
Hide thumbs Also See for MS 3800:

Advertisement

Quick Links

Download this manual

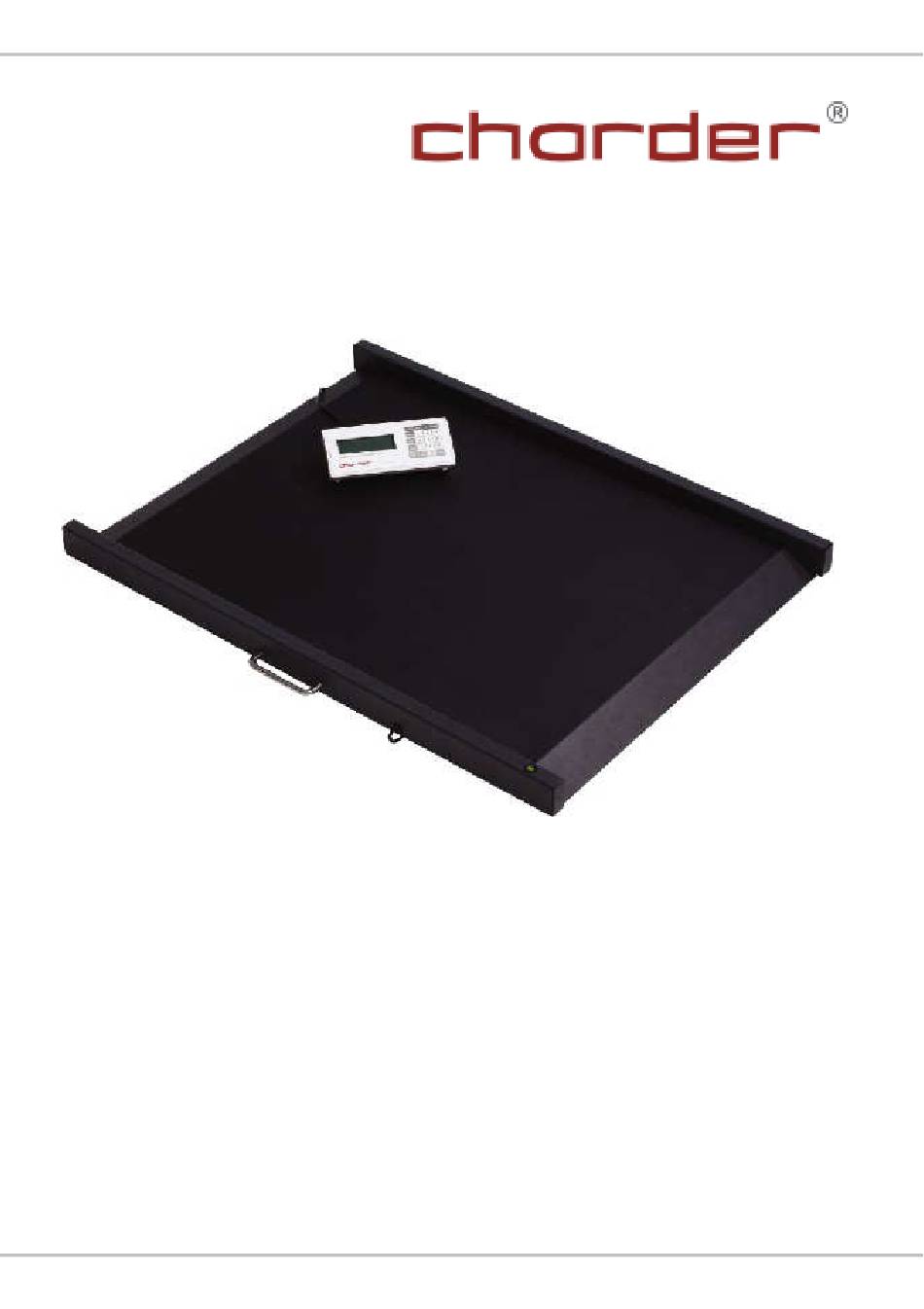

MS 3800
Medical Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.
- 0 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS 3800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS 3800

Summary of Contents for Charder MS 3800

  • Page 1 MS 3800 Medical Scale USER MANUAL Please keep the instruction manual at hand all the time for future reference. - 0 -...
  • Page 2 M1-5 KEY- STORING AND RE-CALLING PRE-TARE WEIGHT ..22 USING UNIT KEY ..................25 USING BMI FEATURE................25 MS 3800: SET-UP ..................27 PRINT FUNCTION ................... 28 INSTRUCTIONS FOR CHARGING AND CONNECTING ....31 INSTRUCTION FOR REPLACING BATTERY PACK ......32 Instruction of installing rechargeable battery ..........
  • Page 3 Observe the permissible ambient temperatures for use The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values specified in the applicable standards. If you have any problem, please contact your local CHARDER MEDICAL service partner. - 2 -...
  • Page 4 The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact your local dealer or CHARDER MEDICAL service partner. - 3 -...
  • Page 5 CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid.
  • Page 6 If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period.
  • Page 7 “Please note the accompanying documents“ or “Observe operating instructions” Identification of manufacturer of medical product including address Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) “Type B applied part “ Dispose of old appliances...
  • Page 8 Transport and storage temperature +60°C limit indicating the upper and the lower limit (Transport and storage temperature -20°C on packaging) - 7 -...
  • Page 9 EMC guidance and manufacturer's declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MS3800 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS3800 should assure that it is used in such an environment. Electromagnetic Emission test Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MS3800 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS3800 should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test...
  • Page 11 3 A/m 3 A/m Power The MEDICAL SCALE frequency(50/60 MS3800 power Hz) magnetic frequency magnetic field IEC 61000- fields should be at levels characteristic of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MS3800 is intended for use in the electromagnetic environment specified below.
  • Page 12 Radiated RF 3 V/m 80MHz to 2,5 3 V/m Field strengths from fixed RF IEC 61000-4-3 transmitters, as determined by an electromagnetic site survey should be less than the compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
  • Page 13 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE MS3800 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE MS3800 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MEDICAL SCALE MS3800 as recommended below, according to the maximum output power of...
  • Page 14 SPECIFICATION Model MS 3800 Capacity 300kg x 0.1kg Weight Unit kg (OIML approval) kg & lb Accuracy ±0.15kg ±0.2kg LCD Display 1.0 inch LCD display with 5 and 1/2 digits Operating Temp. 5° C - 35° C and Humidity 15% - 85% RH Transport / - 20°...
  • Page 15 PANEL 1. DP 2701- With M1-5 key. *Note- DP 2701 with M1-5 key can store 5 PRE-TARE values. This model only uses kg unit only (OIML). 2. DP 2701- With UNIT key. *Note- Weighing unit can be changed from kg-lb or lb-kg, but when the scale is using lb-unit it is considered as Non-Approval model.
  • Page 16 POWER ADAPTOR STANDARDS CAUTION: The device is only compatible with restricted power adaptors in dashed block below. - 15 -...
  • Page 17 KEY FUNCTIONS Description ON/OFF Turn ON/OFF the scale Data transmission via interface(Print-out the results) PRINT Determine Body Mass Index To hold weighing result on the display / determine HOLD stable weighing value To reset the display to 0.0kg display / Zero the scale (±2% of full capacity) M1-5 To store 5 pre-tare values.
  • Page 18 LCD DISPLAY SYMBOLS PRE-TARE Indication Hold Indication NET WEIGHT Indication WEIGHT Indication BMI Indication Definitions Stable symbol: To indicate that the weight is stable. Minor weight: Weight under zero. Zero symbols: Weight is at zero point. Low battery: Battery need to charge or replaced. Stable symbol Minor weight Zero symbol...
  • Page 19 Standard Accessories Item Spec. Accessories Qty. Adjustable feet M6*15 Spacer ∮6.6*∮13 Fixed plate (top) SS-4961 Fixed plate (bottom SS-4971 Tapping Screw M3*10 User manual IN-1051 RS232 cable WR-8159 AC Adaptor Plastic anchor 1”(white) Screw 4*20 - 18 -...
  • Page 20 „Err” prompt (= overload). USING HOLD FUNCTION MS 3800 is provided with the integrated hold function (determination of average value). It enables people to be weighed accurately although they are not still on the scale plate. Once the HOLD key is pressed, the weight reading will remain on the display after the item has been removed from the scale so the reading can easily be read.
  • Page 21 Switch ‘ON’ the scale using [ON/OFF] key. The diagnostic self- checks is performed. The scale is ready for weighing when the „0.0 kg” displays on the screen. Place object/ person in the center of the scale plate. Press the [HOLD] key. When the triangle is flashing on the display, the scale records the fluctuating weight values and then calculates average weight and displays the result on the screen (refer picture on next page).
  • Page 22 USING TARE FUNCTION Tare allows the user to zero the instrument to cancel the weight of a container/ clothes from the reading of the instrument, thus giving the true weight of the product/ person being tested. Place the object need to be tare on the tread platform. Press TARE key after the weight stabilizes and stable sign displays.
  • Page 23 M1-5 KEY- STORING RE-CALLING PRE-TARE WEIGHT MS 3800 can store 5 sets of pre-tare values, and there are two methods to store pre-tare value – Using Dead Weight or Enter weight using 0~9 keys: A. Using Dead Weight: DESCRIPTION EXAMPLE Press M1-5 key after loading the weight;...
  • Page 24 B. Enter Weight Using 0~9 Keys: DESCRIPTION EXAMPLE Press PRE-TARE key, and the extreme left digit will blink. Enter PRE-TARE weight using 0~9 keys. For example: 10kg Press ENTER key to confirm the pre-tare weight; the display will show the minus sign on left of the pre-tare weight value.
  • Page 25 The instrument will make flash and beep sound and will display the saved Pre-Tare Weight. C. RECALL PRE-TARE VALUE DESCRIPTION EXAMPLE Long press PRE-TARE key for 3 seconds; the display will show the blinking m sign. Press numeral key 1 ~ 5 to choose pre-tare value Press ENTER key to confirm pre-tare weight;...
  • Page 26 USING UNIT KEY Weighing unit can be switched from kg-lb or lb-kg. Simply press the UNIT key, if the scale is in kg unit the unit will change to lb; to change back to kg, press the UNIT key again. USING BMI FEATURE For BMI calculation, height is needed, therefore it is recommended to measure the height of subject before starting weighing procedure...
  • Page 27 Body Mass Index Categories Classification of weight for adults over 18 years on the basis of Body Mass Index according to WHO, 2000 EK IV and WHO 2004 (WHO - World Health Organization). - 26 -...
  • Page 28 MS 3800: SET-UP Switch ON the scale and long press [ZERO] key for 3 seconds, first “SETUP” and then “A.OFF” will display successively. AUTO-OFF TIME SETUP This enables operator to select the auto turn OFF time of the device. BUZZER ON/OFF SETUP This enables operator to select beep sound ON/OFF.
  • Page 29 PRINT FUNCTION The Weighing, BMI and Height results can be printed-out for records using RS232 interface cable (included in accessory kit), which is connected with the round plug at the back terminal. After weighing and calculating BMI simply press PRINT key to print out the results.
  • Page 30 RS232 Pin out PIN 2--TXD PIN 2--TXD PIN 3--RXD PIN 3--RXD PIN 5--GND PIN 5--GND - 29 -...
  • Page 31 Connecting with PC 1. Start Hyper Terminal Start Hyper Terminal program from clicking Start Menu → Programs → Accessories → Communication → Hyper Terminal. 2. New Connection Description Give new connection a name then click OK. 3. Select Your COM Port Click Connect to select your COM port.
  • Page 32 INSTRUCTIONS FOR CHARGING AND CONNECTING prompt displays on the LCD, please charge the scale with MS 3800 exclusive adaptor or replace the batteries. Locate adaptor plug-in at the back side of indicator. CAUTION: Always connect the AC adaptor with the indicator before connecting to the mains power supply.
  • Page 33 INSTRUCTION FOR REPLACING BATTERY PACK 1. Removing the battery cover. 2. Take the battery housing out. 3. Replacing new batteries. 4. Batteries are well installed. 5. Installing the battery housing. 6. Reinstalling the battery cover. - 32 -...
  • Page 34 Instruction of installing rechargeable battery Remove battery cover and take rechargeable battery out of battery compartment. Connector in the battery housing Disconnect rechargeable battery cable from connector in the battery compartment. Connect new rechargeable battery pack Connect cable with connector and install rechargeable battery pack in battery compartment.
  • Page 35 ERROR MESSAGE - 34 -...
  • Page 36 TROUBLESHOOTING Troubleshooting for defective modes: Original purchaser can enjoy the benefits under the effective Warranty against functional defects in material and workmanship subject to the terms and conditions listed in the yearly Warranty Program & Return Policy. Our warranty service program includes the following: 1.
  • Page 37 environment force such as free-drop to the ground, collision by external objects, etc. Proper re-calibration procedure required to correct the setting of weighing accuracy. Interference due to RF disturbance, ground vibration…etc. Unstable platform feet adjustments according to bubble level indication Incorrect position or other external objects within weighing area The weighing-scale is not put in a solid &...
  • Page 38 PCB cooper foil broken & loosed welding Unable to save or read data – IC or transistor faulty, internal parts broken. LCD showing “ERRL” after switch on - Load cell damaged Overload may cause the weigh to malfunction. Software system crash Resonator faulty Load cells with faulty grinding standard.
  • Page 39 - 38 -...
  • Page 40 Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) FDA no.: D051883 IN-1051 [8043N] 05/2017 - 39 -...
