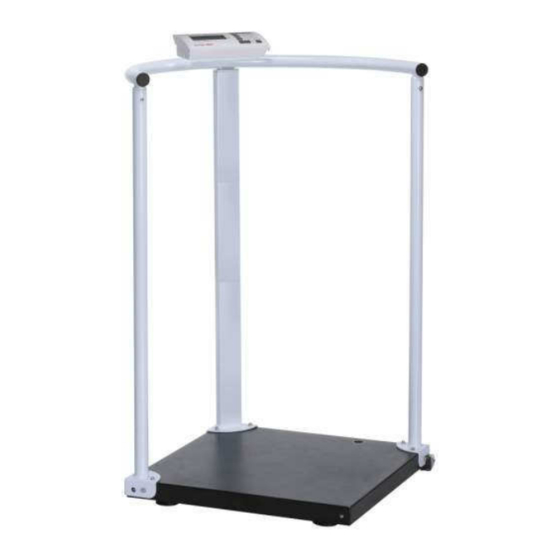

Charder MS-2500 Calibration Manual
Hide thumbs
Also See for MS-2500:
- User manual (18 pages) ,
- Service manual (35 pages) ,
- User manual (35 pages)
Related Manuals for Charder MS-2500
Summary of Contents for Charder MS-2500
- Page 1 MS-2500/MS-3800/MS-3900/MS-4600/MS-5400 Calibration Manual Software ver. UP1911 V1.12 - 1 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1...
-
Page 2: Table Of Contents
FULL FUNCTION FLOW .................. - 6 - MULTI DIVISION SETTING ..................- 7 - CALIBRATION ......................- 8 - GRADUATION SETTING(OIML CLASS III) ............- 9 - - 2 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 3: Precautions
Operation of this equipment in a residential area may cause interference in which case the user will be responsible to take whatever measures necessary to correct the interference. - 3 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 4: Key And Functions
(Auto-Off Time)：auto off set up (120 SEC. / 180 SEC. / 240 SEC. / 300 SEC. / OFF) (Buzzer)：beeper (ON / OFF) (Defult Setup)：restore default setting - 4 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 5: Function Flows
LCD now is showing (unit) first function in function setting mode. Following are mainstream of function flow. Press SEMI AUTO TARE to select function. Press HOLD to confirm selection. - 5 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 6: Full Function Flow
FULL FUNCTION FLOW - 6 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 7: Multi Division Setting
0~200kgx100g and 201~300kgx200kg. It depends on loadcell capability and standard restriction. -Multi division setting can’t be lower than 0kg. When it is at 0kg means it is full capacity now. - 7 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 8: Calibration
You will back to normal mode. For 4key indicator, HOLD means to move to next digit and final confirm the result. UNIT means to zero span count. - 8 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1... -
Page 9: Graduation Setting(Oiml Class Iii)
4002 kg 5002 kg 6002 kg 6001 kg 5000.5 kg 10020 kg 10010 kg 15010 kg 10005 kg 12505 kg 15005 kg 12002 kg 10001 kg - 9 - CHARDER ELECTRONIC CO., LTD CALIBRATION MANUAL COPY RIGHT RESERVED 200906 V1...
