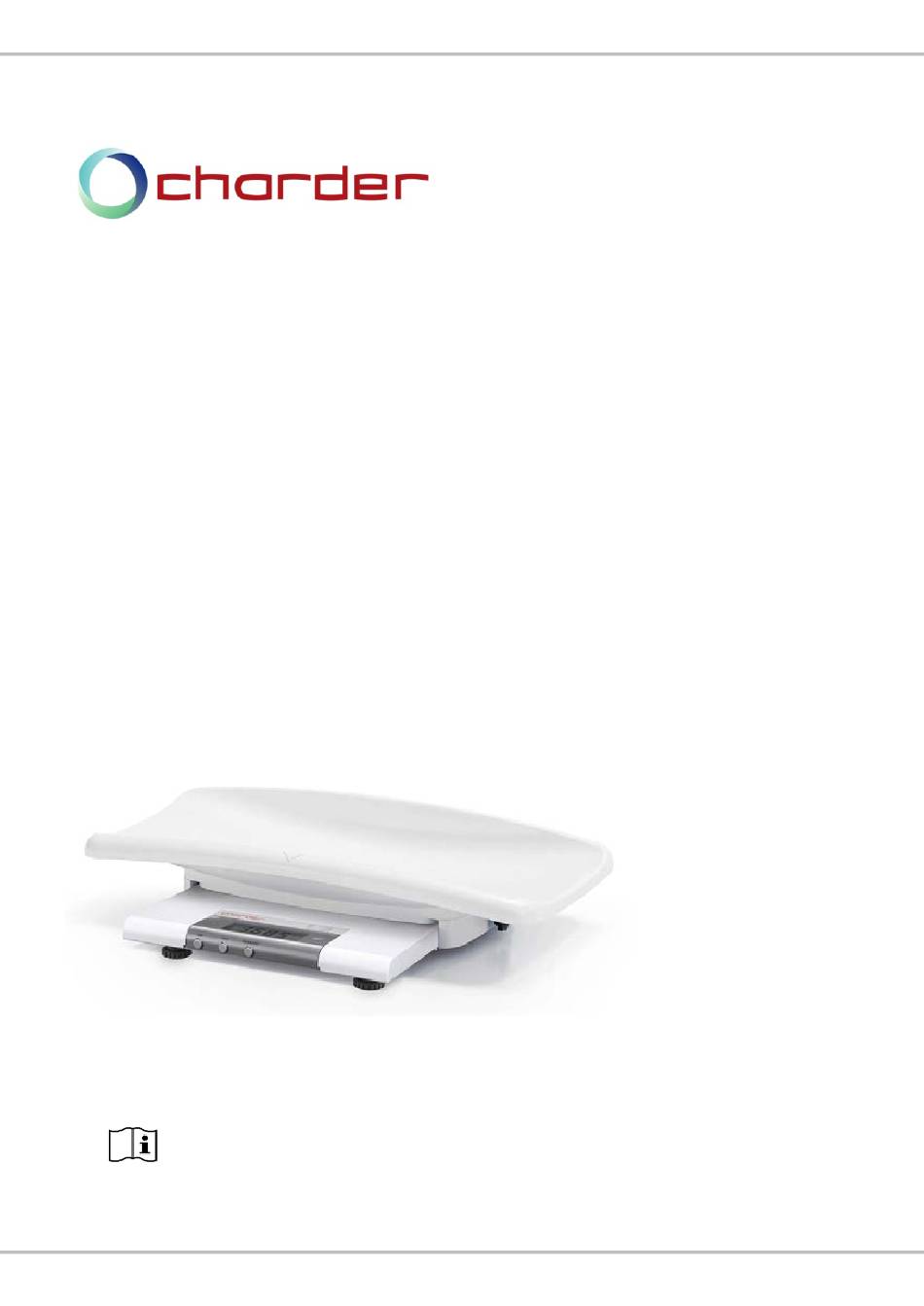

- Page 1 USER MANUAL MS3510 Infant Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
- Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Attaching tray..............12 B. Height Measure Attachment ..........13 B. Inserting Batteries ............. 14 C. Using AC Adapter ............... 15 III. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
- Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. Disposal This product is not to be treated as regular household waste, but ...
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS3510 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3510 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3510 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
- Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS3510 Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 12: Installation
II. Installation A. Attaching tray 1. Slide tray onto device 2. Turn device upside down. Secure tray to device by turning knob on each side of tray. (turn clockwise to tighten, turn counter-clockwise to loosen) 3. Device can now be used for measurement. -
Page 13: Height Measure Attachment
B. Height Measure Attachment 1. Attach bracket to device and baby tray, and fasten screws using screwdriver. Bracket 2. Connect height measure attachment to bracket. A clicking noise will be heard. -
Page 14: Inserting Batteries
B. Inserting Batteries 1. Locate battery cover on bottom 2. Take battery connector out from of device housing 3. Device uses 9V battery 4. Connect 9V battery to connector 5. Place battery into housing. Close cover and turn scale right-side up. Power on device to test if batteries are installed correctly. -
Page 15: Using Ac Adapter
C. Using AC Adapter Device can be powered via adapter using port located at rear of device. Plug adapter into device before plugging into mains. AC adapter port... -
Page 16: Indicator
III. Indicator A. Indicator and Key Functions Key Functions 1. MEMORY/RECALL: Press to recall previously stored memory. Press and hold to store current weight value in device memory. 2. HOLD/MILK INTAKE: Determine stable weighing value - used when weight is unstable. Press and hold to activate Milk Intake function. 3. -
Page 17: Using Device
IV. Using Device A. Basic Operation Switch on the device using [ON/O/T/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [On/O/T/OFF] key to zero the device. -
Page 18: Storing And Recalling Weight
indicator. This weight will be locked - at this point, subject can be removed from device. 5. To release the locked weight, press the [HOLD/MILK INTAKE] key again to return to the device to normal mode. Note: Hold function can be activated before or after subject is placed on measurement platform. -
Page 19: Wireless Connection
(0.2kg in example) Press HOLD/MILK INTAKE key to return to normal mode. V. Wireless Connection If the device has the wireless or bluetooth module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless or bluetooth software instructions for details. -
Page 20: Device Setup
VI. Device Setup When the device is switched on, press and hold the [ON/O/T/OFF] key until the display shows "SETUP" followed by "A_OFF” (first option in setting menu). In device setup: [ON/O/T/OFF] to toggle menu option [HOLD/MILK INTAKE] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time. -
Page 21: Troubleshooting
Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit. - Page 22 If the steps above cannot resolve the problem, re-calibration may be required to correct weighing accuracy Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...
- Page 23 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or...
-
Page 24: Product Specifications
VIII. Product Specifications A. Device Information Model MS3510 Weight Capacity 0-10 kg x 10g Measurement 10-20 kg x 20g Accuracy 0-10 kg ±15g 10-20 kg ±30g LCD Screen 1.0-inch LCD screen (5 digits) OIML Class III Dimensions Total 560(W) x 325(D) x 120(H) mm... -
Page 25: Power Adapter Standards
B. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below. DRAWING NO.: CE APPROVED TYPE NO. / TYPE Adapter VOLTAGE MODEL NO.: plug 9V DC 100mA AD-038A D41W1090100-13/1 9V DC 100mA AD-0484 D35W090100-23/1 9V DC 100mA... - Page 26 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 27 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 28: Declaration Of Conformity
Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1380 REV XXX 06/2020...
