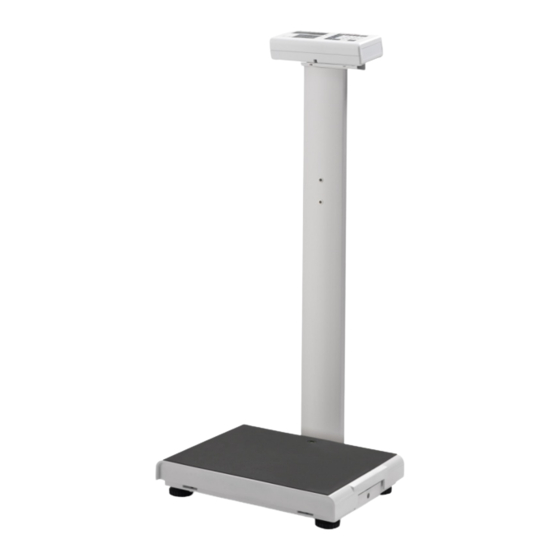

Charder MS3910 User Manual

Stand-on floor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

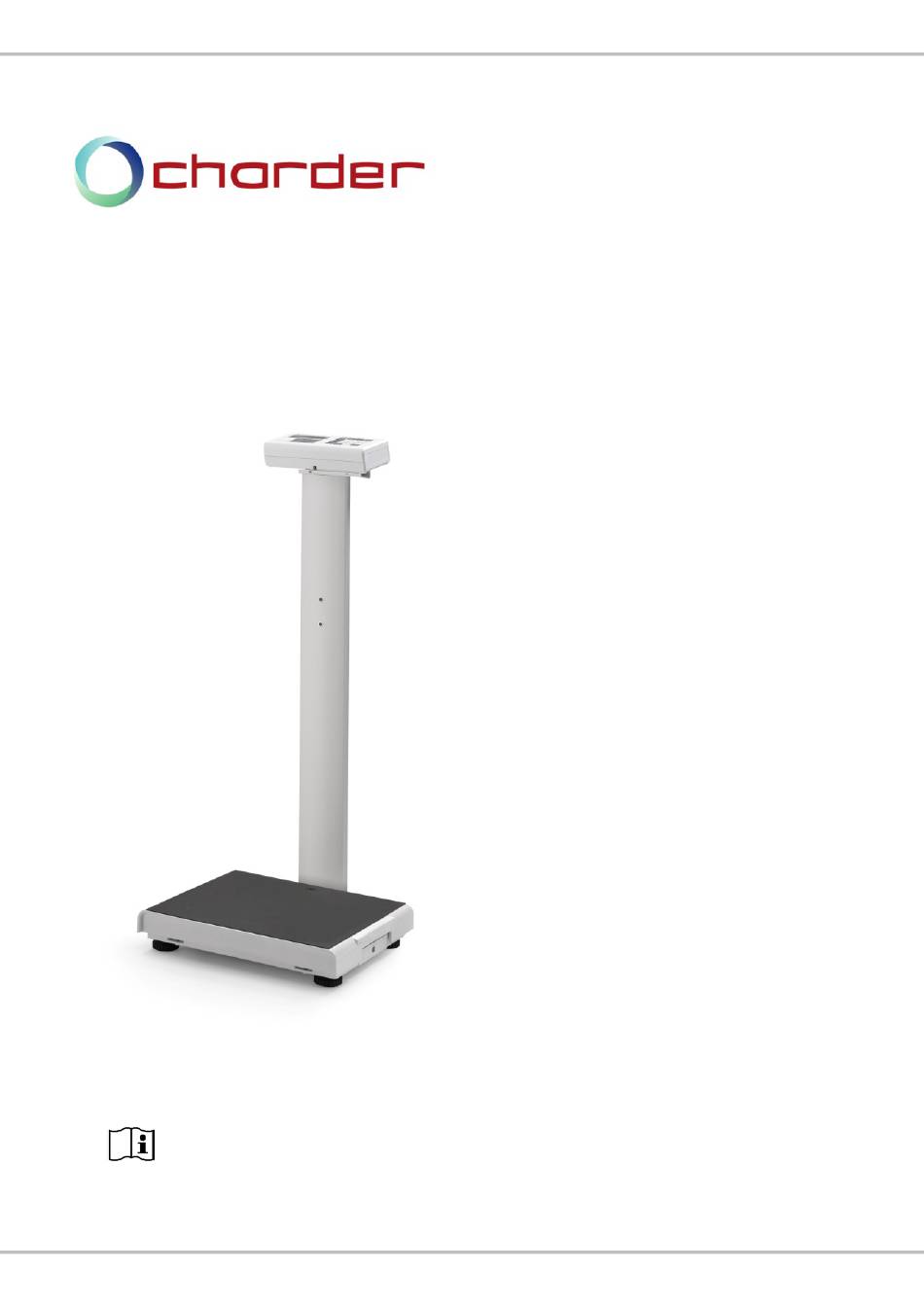

USER MANUAL
MS3910
Stand-on Floor Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS3910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS3910

Summary of Contents for Charder MS3910

  • Page 1 USER MANUAL MS3910 Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................13 A. Assembly ................13 B. Inserting Batteries ............. 14 C. Using Adapter ..............17 D. Attaching Height Rod to Column .......... 18 E.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS3910 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3910 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS3910 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS3910 Stand-on Floor Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 12 transmitter in watts (W) according to the transmitter manufacturer. NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

  • Page 13: Installation

    II. Installation A. Assembly 1. Attach column to base. 2. Secure column and base using screws...

  • Page 14: Inserting Batteries

    B. Inserting Batteries 1. Open battery housing cover 2. Accessing batteries Take out the battery housing 3. Use either rechargeable battery pack, or AA batteries...
  • Page 15 4. Ensure batteries are installed into the housing correctly Rechargeable Battery Housing AA-size Battery Housing 5. Install the battery housing into the compartment, and make sure the right side of housing pin is facing towards inside of the connecting position...
  • Page 16 6. Slide back the cover to close the battery housing compartment. Turn on power to confirm that battery is correctly installed. Using Rechargeable Battery (optional) The rechargeable battery should be recharged at least once every 3 months, regardless of if the device has been used. Battery can be charged by plugging device's exclusive adapter into AC Connector Port.

  • Page 17: Using Adapter

    C. Using Adapter 1. Connect adapter to indicator before connecting to mains power supply 2. Disconnect adapter from mains power supply before unplugging adapter pin from indicator. AC Connector Port...

  • Page 18: Attaching Height Rod To Column

    D. Attaching Height Rod to Column 1. Assemble two brackets on the column Item Name Quantity M5x0.8x11 round head screw Relief Bushing Bracket for HM200D/HM201D/HM201M * Photo of display for reference only. Please refer to the actual product.
  • Page 19 2. Attach Height Rod to bracket and tighten screws. Item Name Quantity Height Rod (Compatible with: HM200D/HM201D/HM201M) M5x10L flat head screw Fixing block M5x0.8x11 * Photo of display for reference only. Please refer to the actual product.

  • Page 20: Attaching Thermal Printer

    E. Attaching Thermal Printer Item Parts M5*15L head screw Screws for printer bracket Printer bracket...
  • Page 21 1. Install the side bracket 2. Install the thermal printer on the bracket...

  • Page 22: Indicator

    III. Indicator A. Indicator and Key Functions (Wireless functionality optional) Key Function 1. ON/OFF: Power on or power off. 2. ZERO: Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to enter device settings. 3.

  • Page 23: Display Layout

    B. Display layout Definitions Stable symbol: Indicate that weight is stable. Zero symbol: Weight is at zero Minor weight: Weight under zero. Low battery: Battery needs to be charged or replaced.

  • Page 24: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ZERO] key to zero the device.

  • Page 25: Tare

    move to next digit. Press [CLEAR] key to re-input. Press [TARE] key to manually move to next digit. 4. After inputting height, press [ZERO] to confirm. 5. Proceed to weigh subject as usual. Indicator will display weight, height, and BMI. NOTE: Hold function can be used at this time if weight is unstable 6.

  • Page 26: Pre-Tare

    E. Pre-Tare The Pre-Tare function is used to subtract the known weight of a substance prior to weighing. The MS3910 can store 5 sets of pre-tare values. Pre-tare values can be stored using two different methods: "Load Weight", or "Input Manually".
  • Page 27 B. Input Manually DESCRIPTION EXAMPLE Press [PRE-TARE] key. Left-most digit will begin blinking. If no further action is taken within 6 seconds, indicator will return to normal mode While digit is blinking: Enter pre-tare weight using 0~9 keys. Ex: to pre-tare 5.0 kg of weight, press 0-0-5-0.
  • Page 28 Press numeral key 1 ~ 5 to assign this number with the current pre-tare weight. Press [ENTER] key to store pre-tare weight; the indicator will make a beep sound. C. Recall Pre-Tare Weight DESCRIPTION EXAMPLE Press and hold [PRE-TARE] key for 3 seconds.

  • Page 29: Print

    Press [CLEAR] key to return to Normal Mode NOTE: Pre-tare weight must be under max capacity, otherwise screen will show 0.00 after [ENTER] key is pressed, and the operator will have to re-input pre-tare settings. F. Print If thermal printer is connected to indicator, results can be printed by pressing [PRINT] key.

  • Page 30: Device Setup

    V. Device Setup A. Setting Time & Date Press and hold [HOLD] key for 3 seconds to enter Time Setting mode. Example: Inputting 2008, Dec 25, 8:00am Year Setting Enter year using numeral keys 0-9. Press [HOLD] key once completed to proceed to month &...

  • Page 31: Device Setup

    B. Device Setup When the device is switched on, press and hold the [ZERO] key for about 3 seconds, until the display shows the "SETUP”, followed by "A.OFF” (first option in setting menu). In device setup menu: [TARE] to toggle next menu option [ZERO] to toggle previous menu option [HOLD] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain...
  • Page 32 Language: Set thermal printer language Press [HOLD] to toggle between English, Italian and Polish. Press [TARE] key to confirm selection. Font size: Set thermal printer font size. Press [HOLD] to toggle between normal and double (larger). Press [TARE] key to confirm selection. Bluetooth (optional): If device has Bluetooth module installed, Bluetooth function can be turned on or off.

  • Page 33: Setup Usb Connection To Pc

    USB 2.0 or above. Operators should select a USB cable length that is most suitable to the operating environment. 1. Charder Smart Data Manager can be used to connect the device to a PC. The software program can be downloaded from the Charder website: [LINK URL] https://www.chardermedical.com/download.htm...
  • Page 34 Conducting Measurement 1. Input subject's first name, last name, patient ID, date of birth (DD/MM/YYYY), gender, and height (for BMI calculation) into software if needed. Press [Clear] to clear all input. NOTE: information can also be input after weight measurement. 2.
  • Page 35 Saving & Printing Results 1. Press [Save as] to save measurement results as .csv file on PC. Default file name is same as user ID. (ex: 20190201.csv) To track changes and multiple measurements for the same subject, we recommend not changing the default file name. 2.

  • Page 36: Wireless Connection

    3. Press the printer icon to print out result using a printer connected to the PC. VII. Wireless Connection If the device has the wireless or bluetooth module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless or bluetooth software instructions for details.

  • Page 37: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 38 Ensure printer is supplied with power. Ensure PC software is set up  properly as indicated in this manual Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...
  • Page 39 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or...

  • Page 40: Product Specifications

    IX. Product Specifications A. Device Information Model MS3910 Display DP3710 Weight Capacity 300 kg x 0.1 kg Measurement Accuracy ±0.15 kg OIML Class III LCD Screen 1.0-inch LCD screen (5 1/2 digits) Dimensions Device 340(W) x 540(D) x 970(H) mm...

  • Page 41: Standard Accessories

    B. Standard Accessories Accessories Item Spec. Qty. USB cable WR-4001 12V Adapter User manual CD-IN-1258 Screw (Castor wheel M4*20 version)

  • Page 42: Power Adapter Standards

    C. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below.
  • Page 43 Notes _______________________________________________________ _______________________________________________________...
  • Page 44 _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ Notes _______________________________________________________ _______________________________________________________...
  • Page 45 _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 46: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1258 REV XXX 06/2020...
