Please keep the instruction manual at hand all the time for future reference.
-0-
MS3450

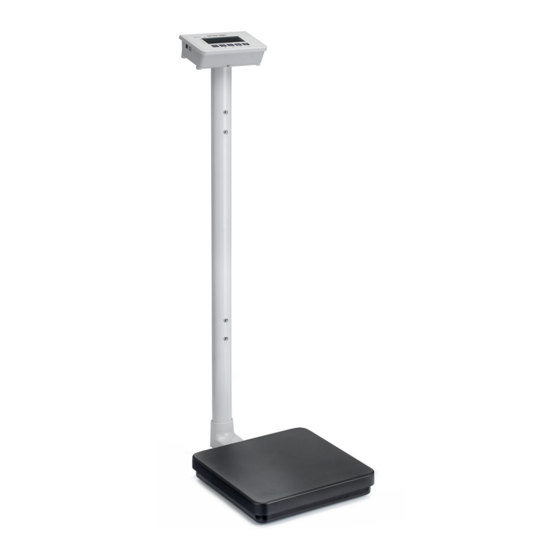

Stand-on Floor Scale
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Charder MS3450
Summary of Contents for Charder MS3450

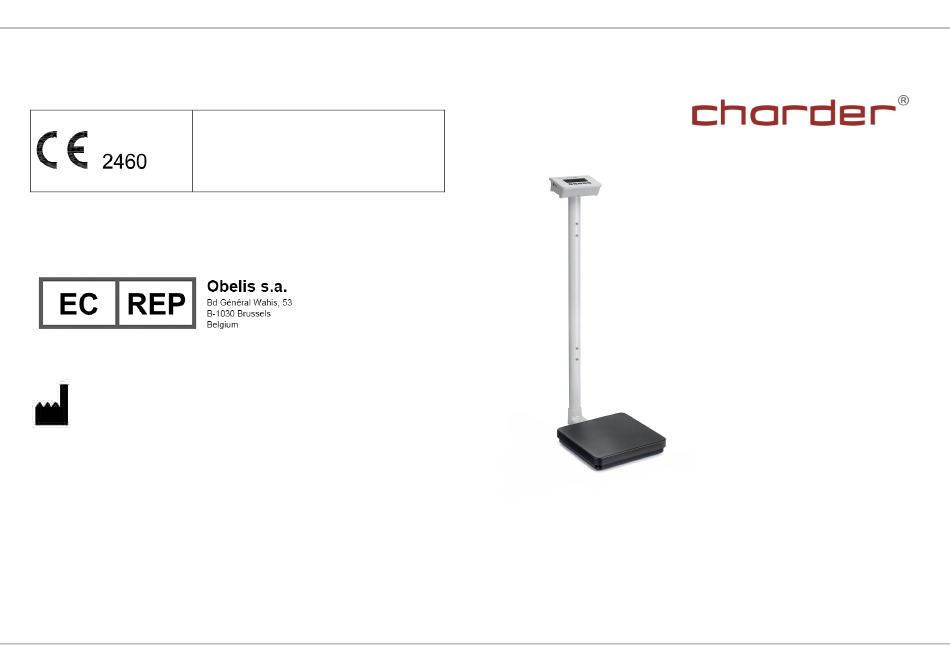

- Page 1 Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) MS3450 Stand-on Floor Scale USER MANUAL CD-IN-00011 [REV004] 04/2019 Please keep the instruction manual at hand all the time for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS NOTE PREFACE ..................... 2 GENERAL INFORMATION ............... 2 INTENDED USE ..................2 SAFETY INSTRUCTION ................2 ENVIROMENTAL ..................3 CLEANING ....................3 MAINTENANCE ..................4 WEIGHING OPERATION ................4 WARRANTY-LIABILITY ................4 DISPOSING OF THE SCALE ..............5 EXPLANATION OF THE GRAPHIC SYMBOLS ........ -
Page 3: Preface
NOTE PREFACE Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the... -
Page 4: Enviromental
Wrong internal wiring or wire broken the applicable standards. If you have any question, contact your local CHARDER MEDICAL In case of the following defective mode occurs, it is suggested service partner. to contact your nearest Authorized Dealer for further technician ENVIROMENTAL service &... -
Page 5: Maintenance
Indicator showing “0000” ZERO SPAN out of range Replaced parts shall be the property of CHARDER. Should the fault Incorrect weighing result - Avoid damages by external... -
Page 6: Disposing Of The Scale
This indicates that the scale’s load sensor(s) have been functioning shall be rendered null and void. If CHARDER provides overloaded. Reduce the loading and retry. and individual warranty, this means that the unit supplied will be free Counting Error of faults for the length of the warranty period. -
Page 7: Explanation Of The Graphic Symbols
(Number as an example) “Please note the accompanying documents“ or “Observe operating instructions” Identification of manufacturer of Charder Electronic Co., Ltd. medical product including address No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) 3. Replacing new batteries. 4. Batteries are well installed. -
Page 8: Emc Guidance And Manufacturer's Declaration
The MEDICAL SCALE MS3450 is intended for use in the electromagnetic Locate adaptor plug-in at the back side of indicator. environment specified below. The customer or the user of the MEDICAL SCALE MS3450 should assure that it is used in such an environment. Electromagnetic... - Page 9 The MEDICAL SCALE MS3450 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS3450 should assure that it is used in such an environment. 1. Fold the plate and press...
- Page 10 The MEDICAL SCALE MS3450 is intended for use in the electromagnetic environment specified below. 2. Position the head piece The customer or the user of the MEDICAL SCALE MS3450 should assure that is to horizontal position used in such and environment.
- Page 11 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE MS3450 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE MS3450 should be observed to verify normal operation.
- Page 12 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE MS3450 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE MS3450 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile...
-
Page 13: Specifications
SPECIFICATIONS Model MS 3450 300 kg x 0.1 kg Capacity Accuracy ±200g Weight Unit Kg/lb LCD Display 1.4” LCD digital display 3. Arrange the cable along the gap in the column seat. Platform size: 310 x 310 mm Dimension Column Height: 900mm Key Functions UNIT, SEND, ON/OFF/ZERO,... -
Page 14: Panel
SCALE ASSEMBLY PANEL 1. Plug the column into the column seat. KEY FUNCTIONS Description: TARE Tare the weight of excess object in advance so that the user can measure the net weight of the object / person at ease without removing the tare object again. The total surface area of human body. -
Page 15: Lcd Display Symbols
STANDARD ACCESSORIES Accessories Item Spec UNIT M4 Screw M4*0.7*15 Key to switch kg or lb, and to change height value under BMI mode. HOLD/BMI HOLD key and BMI (Body Mass Index) key M4 Screw M4*0.7*8 LCD DISPLAY SYMBOLS Bottom Cover USB cable BSA : Body surface area is activated AC adapter... -
Page 16: Symbols Information
SYMBOLS information Printout Data Through USB cable connector Click OK button to complete the setting. The PC will retrieve the weighing & BMI data from the CHARDER scale and display on the HyperTerminal program similar to the layout below. Stability sign ... - Page 17 Wait until the stability sign appears 6. Select COM Port on User PC Read the weighing result Click Connect to select COM port on the computer. Then click OK. Weighing with hold This device provided with integrated hold function (determination of average value). It enables people to be weighed 7.
- Page 18 The zero display and the symbol NET appear. Step.2- Go to All Programs. The tare weight remains stored until it is cleared. Step.3- Select Accessories. Step.4- Find Communications. 4.1.2 Clear the tare Step.5- In Communications section click on HyperTerminal. Press to clear tare weight ...
-
Page 19: Print Function And Data Transmission
PC’s USB port and doses of chemotherapeutic agents and index cardiac output. the CHARDER Scale Model again. Press PRINT button on the Scale Display Panel for printout of weight & BMI data from thermal Average BSA for children of various ages, for men, and for women, are taken to printer. - Page 20 SETTING-UP 6.1.1 Enable BSA in BMI mode Switch on the scale. 1. Starting with BMI process Press key and hold for 6 seconds to enable setting mode. 2. When BMI, weight and height is playing rotationally. LCD shows “SETUP” first and then “A.OFF” appears. Switch between modes and menu weight ...
