Charder MS 3850 User Manual

Medical scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 412, Taiwan (R.O.C.)
MS 3850
Medical Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference
CD-IN-00052 [REV0002] 07/2018
44
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS 3850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS 3850

Summary of Contents for Charder MS 3850

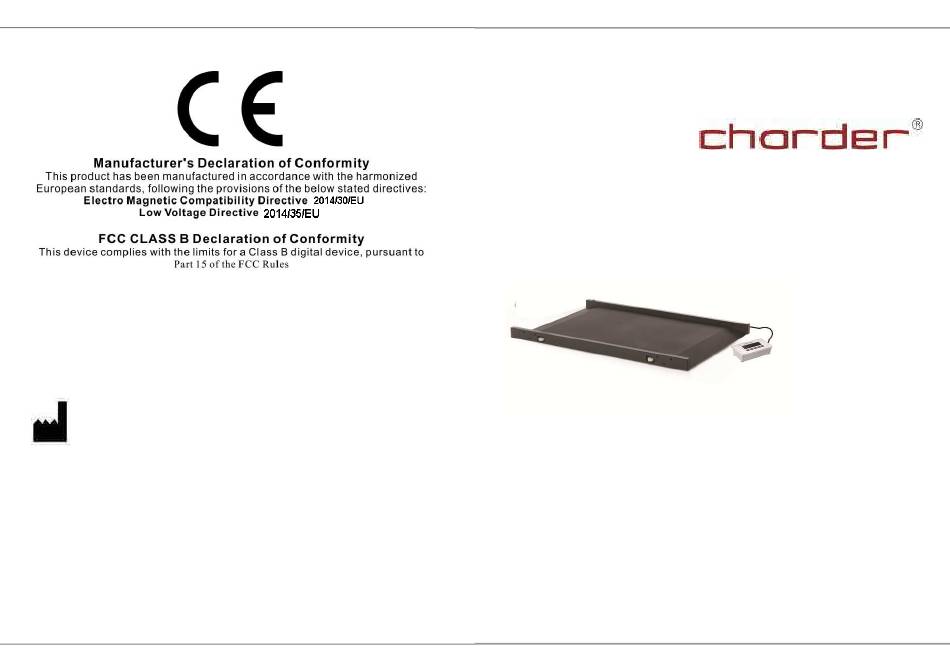

  • Page 1 Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) MS 3850 Medical Scale USER MANUAL Please keep the instruction manual at hand all the time for future reference CD-IN-00052 [REV0002] 07/2018...
