Disassembly and reassembly
CAUTION: The information in this section is intended for authorized service technicians in the EMEA region. Dell prohibits
users from disassembling the monitor, and any damage caused by unauthorized servicing will not be covered under the
warranty.
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
• Phillips screwdriver #0
• Phillips screwdriver #2
• Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

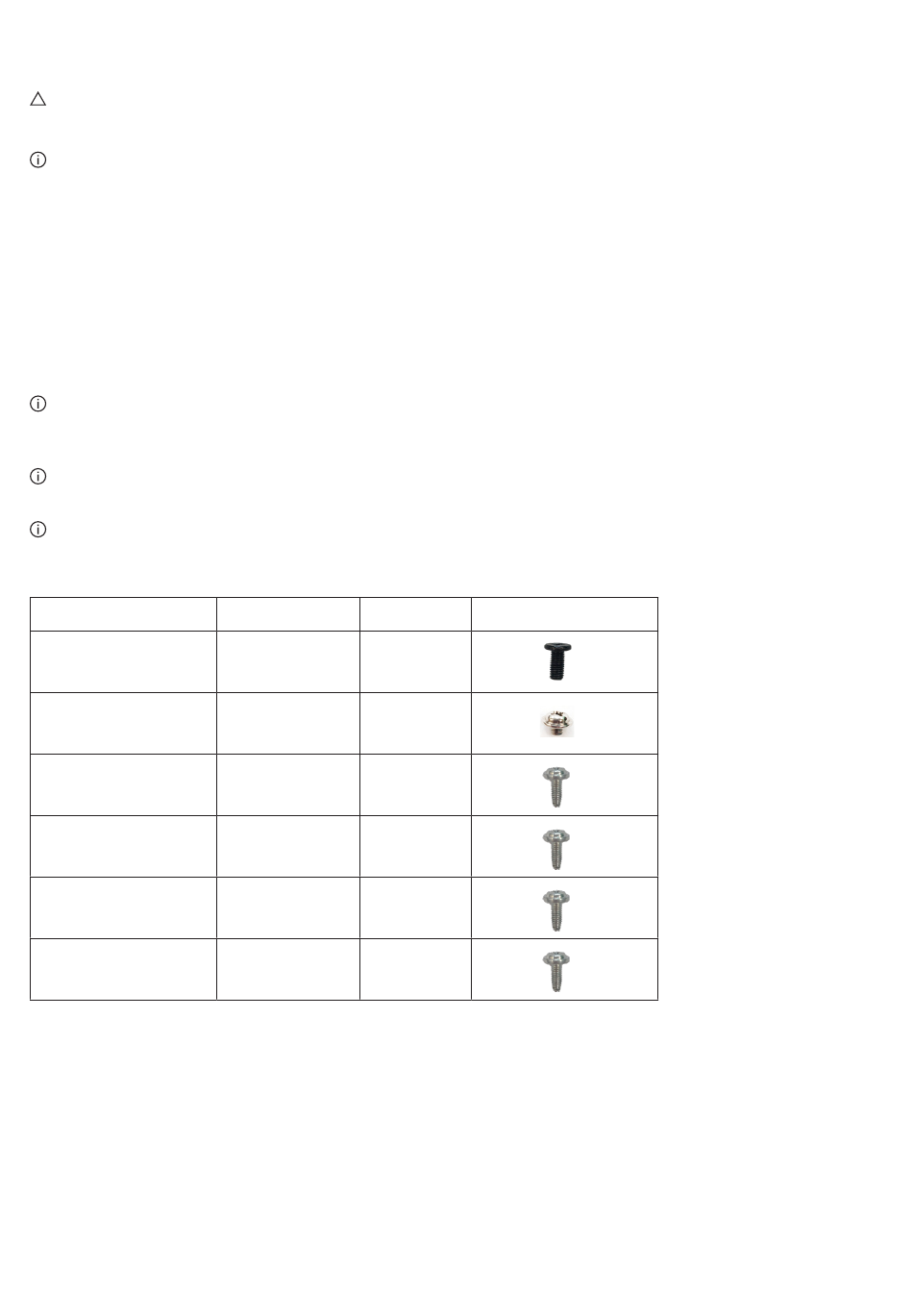

Table 1. Screw list.
Component
Back Cover
Metal shield
Interface board
Power board
Switch board
DC-DC board
Screw type Quantity
M4x10
M3x3
M3x9
M3x9
M3x9
M3x9
Screw image
4
4
5
3
1
1
Disassembly and reassembly 5
