Alienware AW2725Q Teardown Manual page 16

Switch board
Removing the switch board
Prerequisites
1. Follow the procedure in
2. Remove the stand.
3. Remove the back cover.
4. Remove the metal shield.
Steps
1. Lift the Mylar sheet from the power board.
2. Remove the screw (M3x9) that secures the switch board to the metal shield.
16 Disassembly and reassembly
Before working inside your

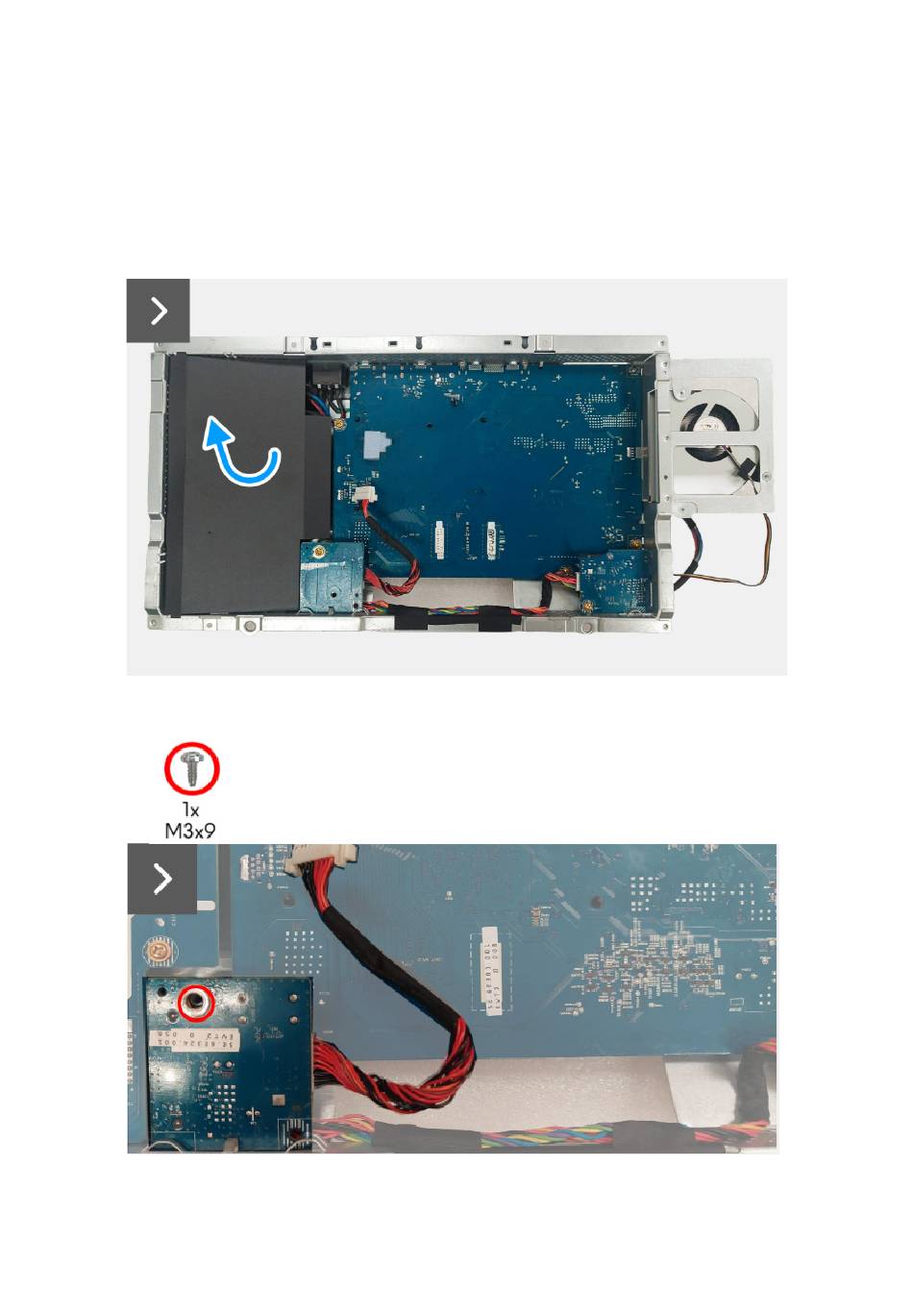

Figure 17. Removing the switch board
Figure 18. Removing the switch board
monitor.
