Alienware AW2725Q Teardown Manual page 15

5. Connect the USB-board cable to the connector on the USB board.
6. Adhere the tape to secure the fan cable to the display panel.
7. Connect the two LVDS cables to the connectors on the interface board.
8. Connect the control-board cable to the connector on the interface board.
9. Connect the lens-board cable to the connector on the interface board.
10. Adhere the tape to secure the lens-board cable and the control-board cable to the metal shield.
Next steps
1. Install the back cover.
2. Install the stand.
3. Follow the procedure in

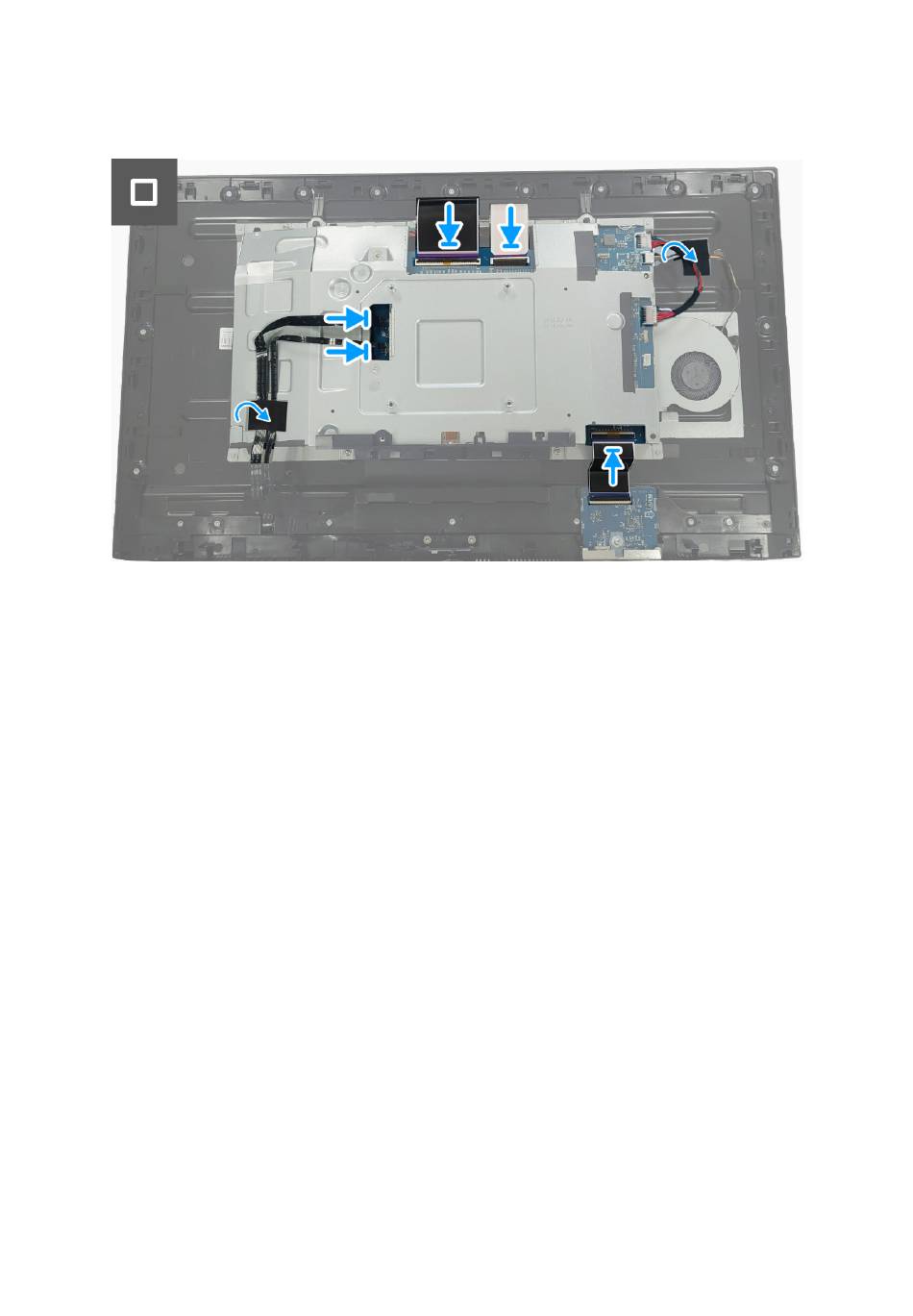

Figure 16. Installing the metal shield
After working inside your monitor.
Disassembly and reassembly 15
