Installing the DC-DC board
Steps
1.
Connect the power cable to the connector on the DC-DC board.
2. Align and place the DC-DC board in the slot inside the metal shield.
3.
Place the spacer on the DC-DC board.
4.
Replace the screw (M3x9) to secure the DC-DC board to the metal shield.
22
Disassembly and reassembly

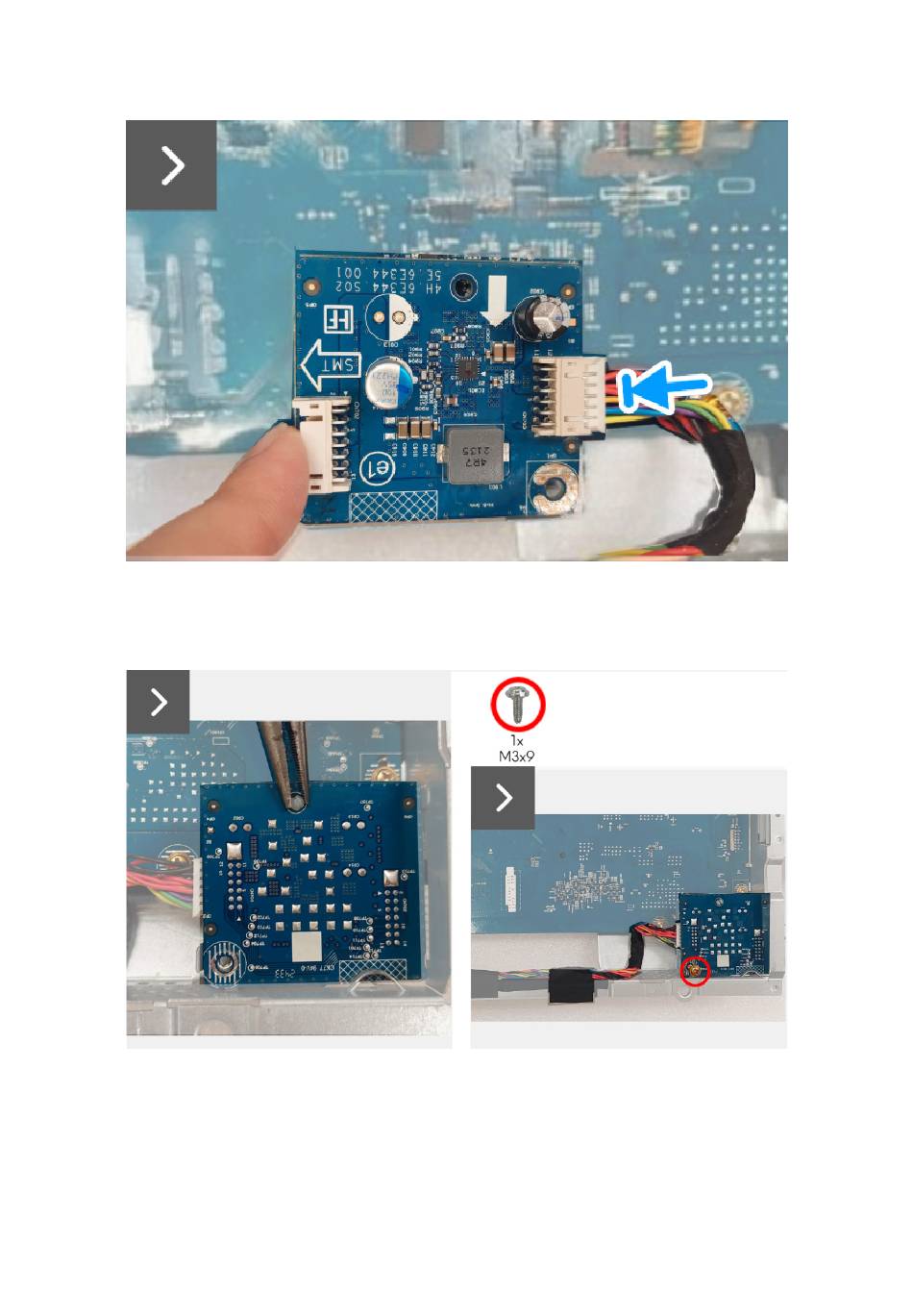

Figure 26. Installing the DC-DC board
Figure 27. Installing the DC-DC board
