Dahua Technology DH-IPC-HDEW Series Quick Start Manual page 35

No. Description
2 Communication lightning conductor.
3 Power supply lightning conductor.
4 Steel tube.
Explosion-proof camera: Must be installed in the arc formed by the 60-m circle,
5
the lightning conductor top and the ground.
Impedance of the cable connected to the grounding wire should be less than 4
6
Ω.
7 Lightning conductor.
8 The radius is 60 m.

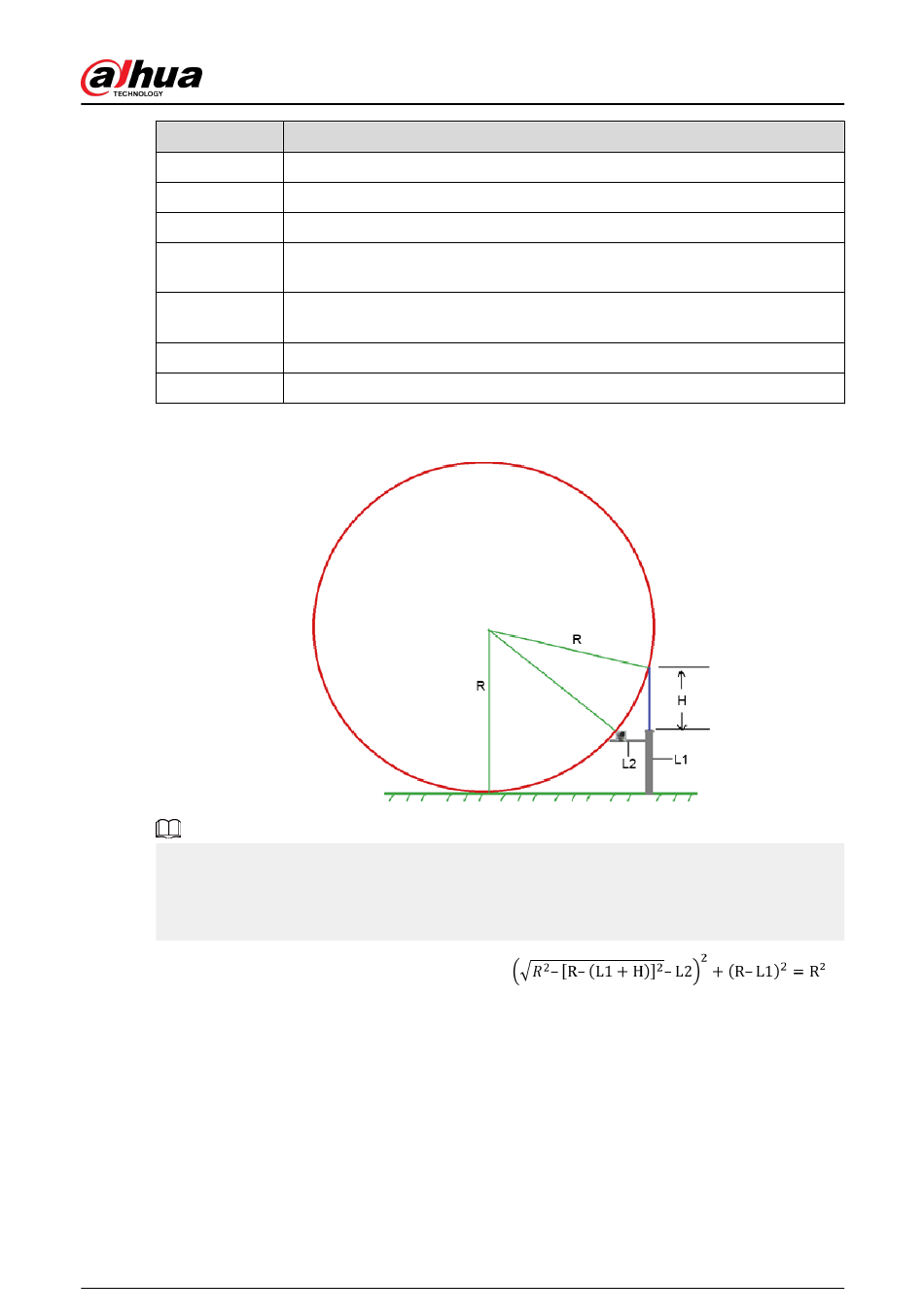

Appendix Figure 1-2 Installing lightning protection devices outdoors (2)
R: The radius of the circle, and R=60 m.
●
L1: The length of the pole that holds the lightning conductor.
●
L2: The length of the rail that holds the Camera.
●
H: The length of the lightning conductor.
●
To get the value of L1, you need to use the formula:
28
Quick Start Guide
