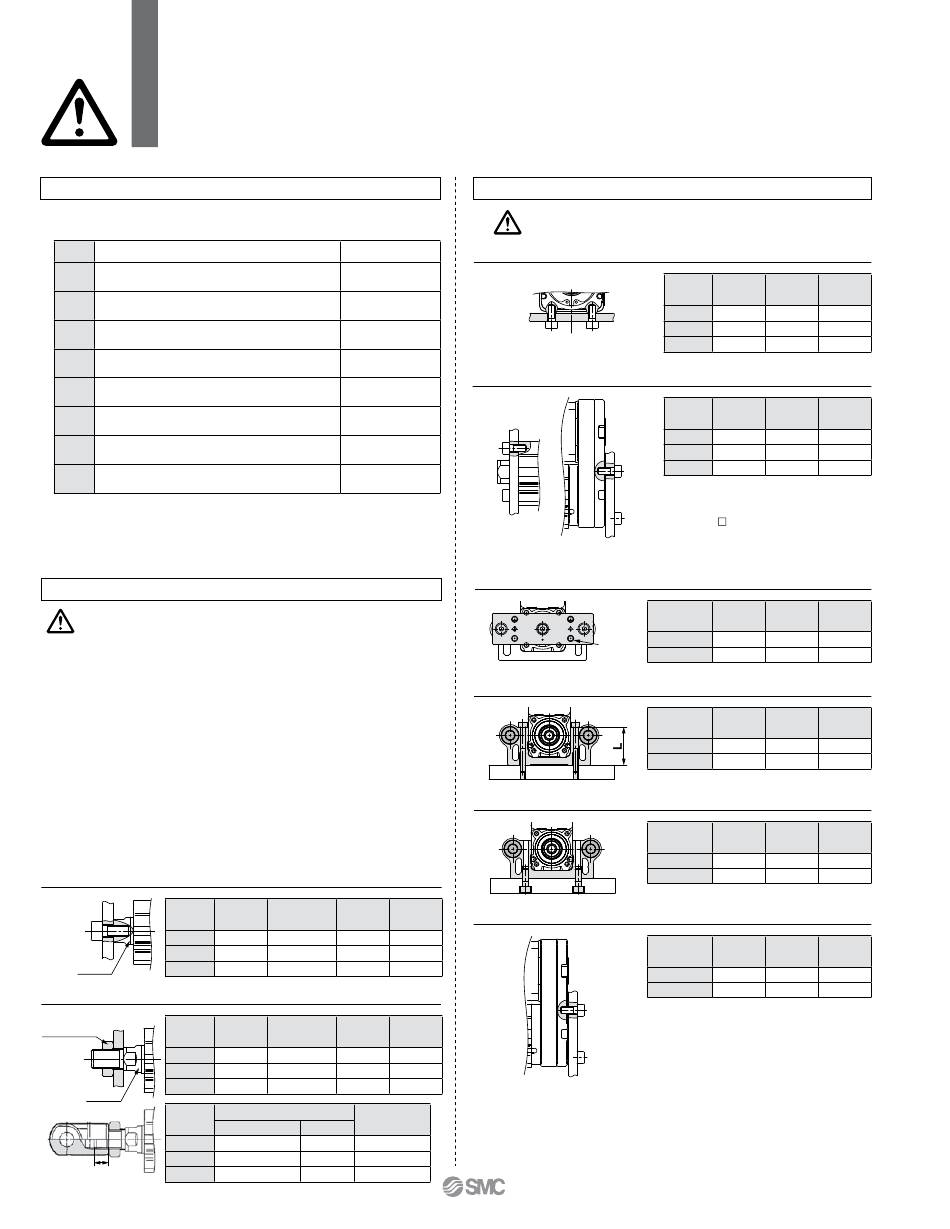

Electric Actuators/
Specific Product Precautions 2
Be sure to read this before handling. For Safety Instructions and Electric Actuator Precautions, refer to "Handling
Precautions for SMC Products" and the Operation Manual on SMC website, http://www.smcworld.com
Enclosure
• Second Characteristics:
Degrees of protection against water
0
Non-protected
1
Protected against vertically falling water drops
Protected against vertically falling water drops
2
when enclosure tilted up to 15°
Protected against rainfall when enclosure
3
tilted up to 60°
4
Protected against splashing water
5
Protected against water jets
6
Protected against powerful water jets
Protected against the effects of temporary
7
immersion in water
Protected against the effects of continuous
8
immersion in water
Example) IP65: Dust-tight, Water-jet-proof type
"Water-jet-proof type" means that no water intrudes inside an equipment
that could hinder from operating normally by means of applying water for
3 minutes in the prescribed manner. Take appropriate protection
measures, since a device is not usable in an environment where a
droplet of water is splashed constantly.
Mounting
Caution
1. When mounting workpieces or jigs to the piston rod end, hold
the flats of the piston rod end with a wrench so that the piston
rod does not rotate. The bolt should be tightened within the
specified torque range.
This may cause abnormal responses of the auto switch, play in the
internal guide or an increase in the sliding resistance.
2. When mounting the product and/or a workpiece, tighten the
mounting screws within the specified torque range.
Tightening the screws with a higher torque than recommended may
cause a malfunction, whilst the tightening with a lower torque can
cause the displacement of the mounting position or in extreme
conditions the actuator could become detached from its mounting
position.
<Series LEY>
Workpiece fixed/Rod end female thread
Model
LEY25
M8 x 1.25
LEY32
M8 x 1.25
LEY63
Socket
M16 x 2
Workpiece fixed/Rod end male thread
Rod end nut
Model
LEY25
M14 x 1.5
LEY32
M14 x 1.5
LEY63
M18 x 1.5
Socket
Model
Width across flats (mm) Length (mm)
LEY25
LEY32
LEY63
End bracket
99
screw-in depth
∗ Rod end nut is an accessory.
LEY/LEYG
—
Dripproof
type 1
Dripproof
type 2
Rainproof
type
Splashproof
type
Water-jet-
proof type
Powerful water-
jet-proof type
Immersible
type
Submersible
type
Max. screw-in
End socket width
Max. tightening
Bolt
torque lbf⋅ft(N⋅m)
depth (mm)
across flats (mm)
9.2 [12.5]
13
17
9.2 [12.5]
13
22
78 [106]
21
36
Effective thread
End socket width
Max. tightening
Bolt
length (mm)
across flats (mm)
torque lbf⋅ft(N⋅m)
37 [50]
20.5
17
37 [50]
20.5
22
71 [97]
26
36
Rod end nut
End bracket
screw-in depth (mm)
22
8
14
22
8
14
27
11
18
Mounting
Caution
Body fixed/Body bottom tapped style (When "Body bottom tapped" is selected.)
Body fixed/Rod side/Head side tapped style
Head side ∗
Rod side
∗ Except the LEY D.
<Series LEYG>
Workpiece fixed/Plate tapped style
LEYG25
Tap
LEYG32
(4 locations)
Body fixed/Top mounting
LEYG25
LEYG32
Body fixed/Bottom mounting
LEYG25
LEYG32
Body fixed/Head side tapped style
LEYG25
LEYG32
Max. tightening
Max. screw-in
Model
Bolt
torque lbf⋅ft(N⋅m)
depth (mm)
LEY25
M5 x 0.8 2.2 [3.0]
6.5
LEY32
M6 x 1.0 3.8 [5.2]
8.8
LEY63
M8 x 1.25 9.2 [12.5]
10
Max. screw-in
Max. tightening
Model
Bolt
torque lbf⋅ft(N⋅m)
depth (mm)
LEY25
M5 x 0.8 2.2 [3.0]
8
LEY32
M6 x 1.0 3.8 [5.2]
10
LEY63
M8 x 1.25 9.2 [12.5]
16
Max. screw-in
Max. tightening
Model
Bolt
torque lbf⋅ft(N⋅m)
depth (mm)
M
M6 x 1.0 3.8 [5.2]
11
L
M
M6 x 1.0 3.8 [5.2]
12
L
Length: L
Max. tightening
Model
Bolt
(mm)
torque lbf⋅ft(N⋅m)
M
M5 x 0.8 2.2 [3.0]
40.5
L
M
M5 x 0.8 2.2 [3.0]
50.5
L
Max. screw-in
Max. tightening
Model
Bolt
depth (mm)
torque lbf⋅ft(N⋅m)
M
M6 x 1.0 3.8 [5.2]
12
L
M
M6 x 1.0 3.8 [5.2]
12
L
Max. screw-in
Max. tightening
Model
Bolt
depth (mm)
torque lbf⋅ft(N⋅m)
M
M5 x 0.8
2.2 [3.0]
8
L
M
M6 x 1.0
3.8 [5.2]
10
L
