3 INSTALLATION
Before installing you must read the following cautions.
Confirm the installation location can bear five times of the weight of your camera.
Do not allow the cable to be caught, pinched or snagged on the environment or the electric
line cover to be damaged. Otherwise it may cause a malfunction or fire.
When installing your camera, do not allow any person to approach the installation site.

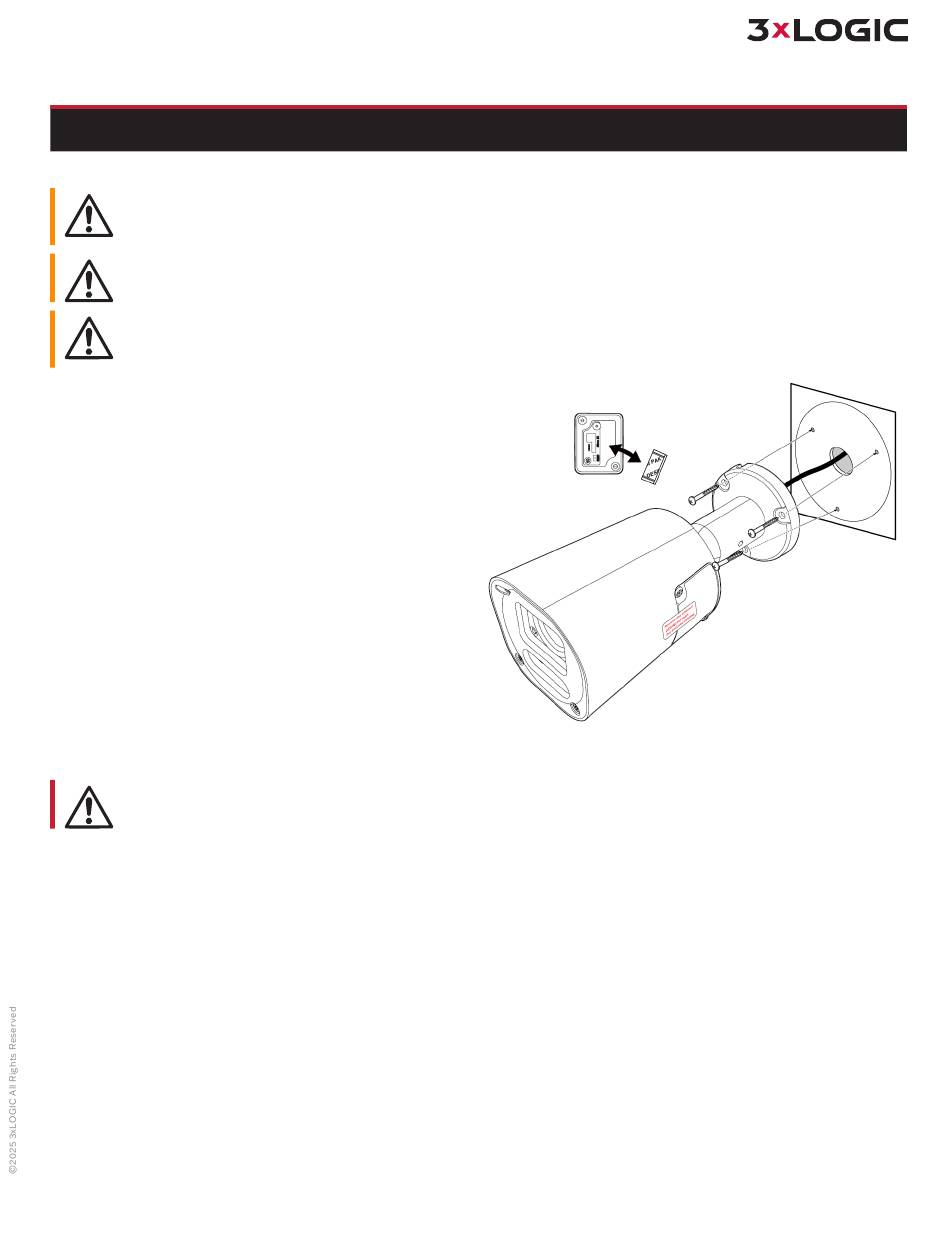

1. Using the Template sheet, drill the cabling hole on
wall / ceiling.
2. Connect the power, audio, alarm and network
cables respectively. See 'Cabling' and 'Water-
proofing sections for details'.
3. Fix the camera on the wall / ceiling using the
provided screws and anchors .
4. Using the test video cable, check the camera
image during installation and to confirm field of vis-
ion.
*Desi-Pak (Moisture Absorber) - When inserting or
removing Desi-Pak, be careful as it may be torn if you
use a pointed tool.
*Reset to the Factory Default - Press the reset button for 5 seconds to return the setup to the factory default.
Warning: If you press the 'Reset' button, you will lose all setting data. If needed, please, make
a note for further installation.
/
