QUICK START GUIDE | VX-5M622-MB-RIAW-X

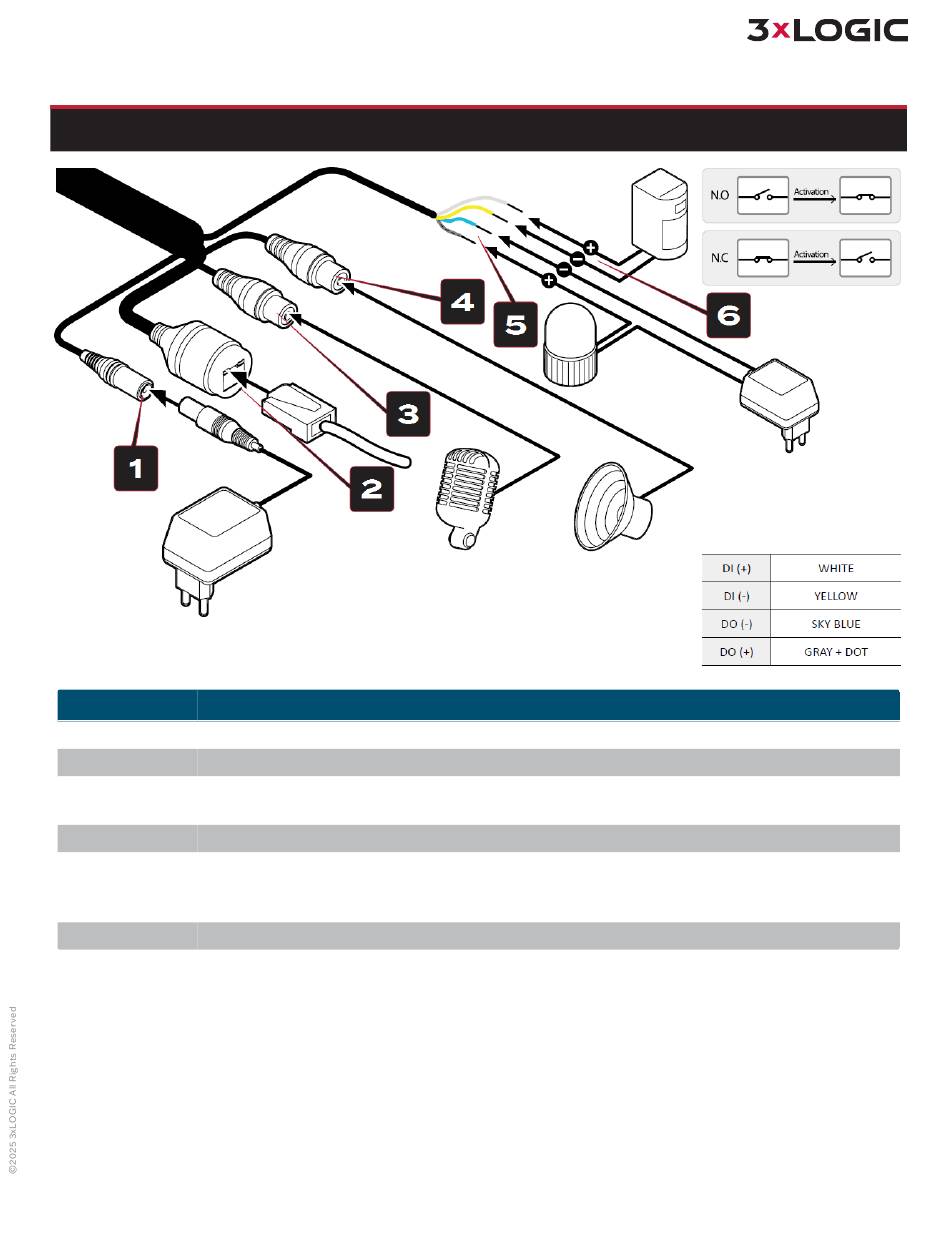

4 CABLING
Component
1
2
3
4
5
6
/
5 18
DC12V Power Connection
Network Connector : RJ45; Max Distance - 100m, PoE - IEEE 802.3af
Audio In - Connect the 'Audio In' port of the camera to a microphone directly or 'Line Out'
port of an amplifier connected with microphone.
Audio Out - Connect to Speaker, etc..
Alarm Out : Connect to Alarm Lights, Siren, etc.....Sensor types are Normal Open and
Normal Close. Alarm Output Device cable should connect to DO (N.O) and DO COM of the
cable slot.
Alarm In: (see above diagram for wiring color coding)
Description
