QUICK START GUIDE | VX-5M622-MB-RIAW-X
WATERPROOFING

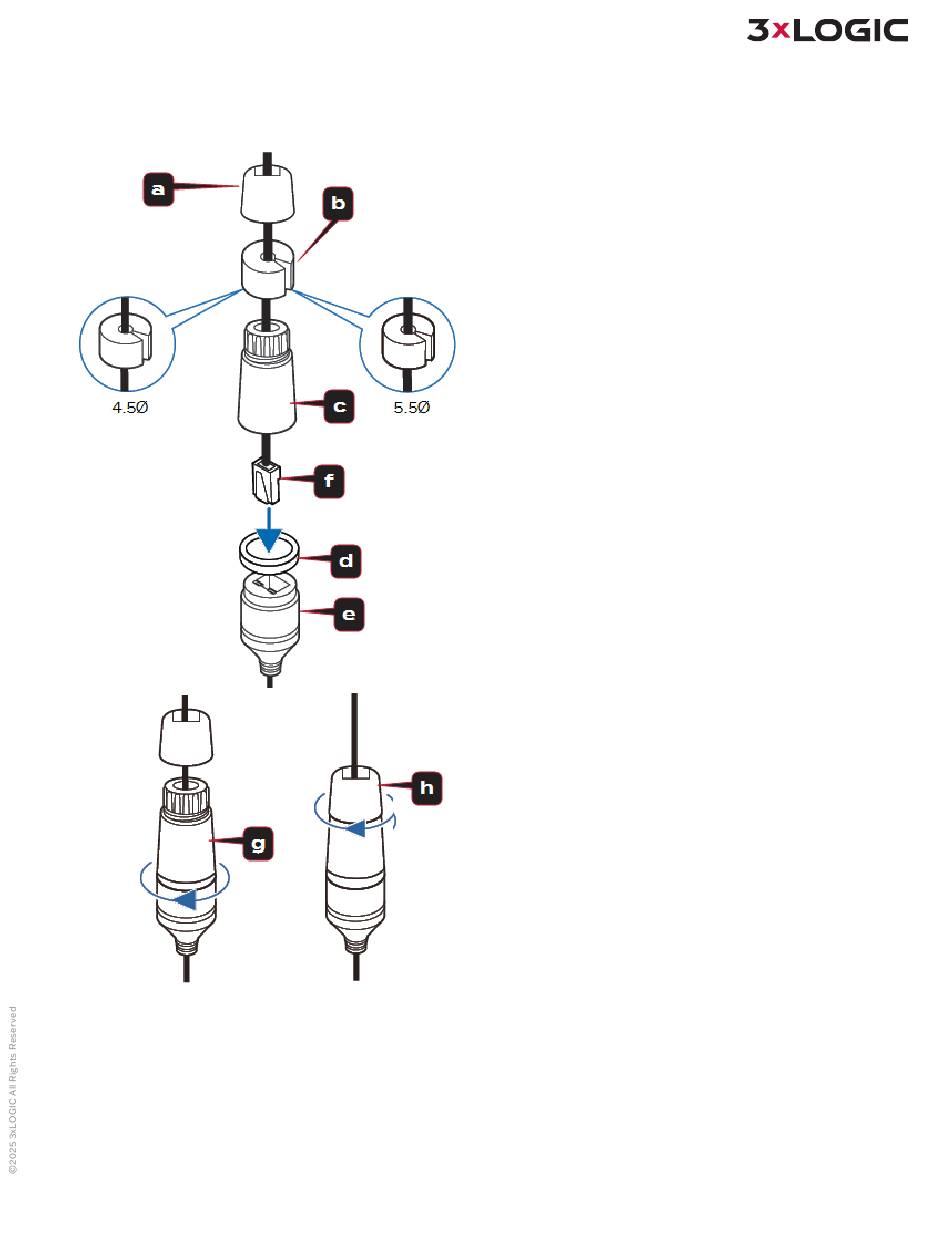

1. Pass the LAN cable through the (a) lid.
2. Insert the cap open the (b) rubber.
3. Please note, if cabling thickness is 4.5Ø to 5.5Ø, use the
black rubber stop. Cabling with a thickness over 5.5Ø
should use the white rubber stop.
4. Pass the LAN cable through the (c) waterproof cap.
5. Insert the (d) rubber gasket at the (e) RJ-45 pigtail con-
nector.
6. Connect the (f) LAN cable at (e) RJ-45 pigtail connector.
7. Tighten the (c) waterproof cap and (e) RJ-45 pigtail con-
nector by turning it in the direction of the arrow.
8. Tighten (a) lid and (c) waterproof cap by turning them in
the direction of the arrow.
/
