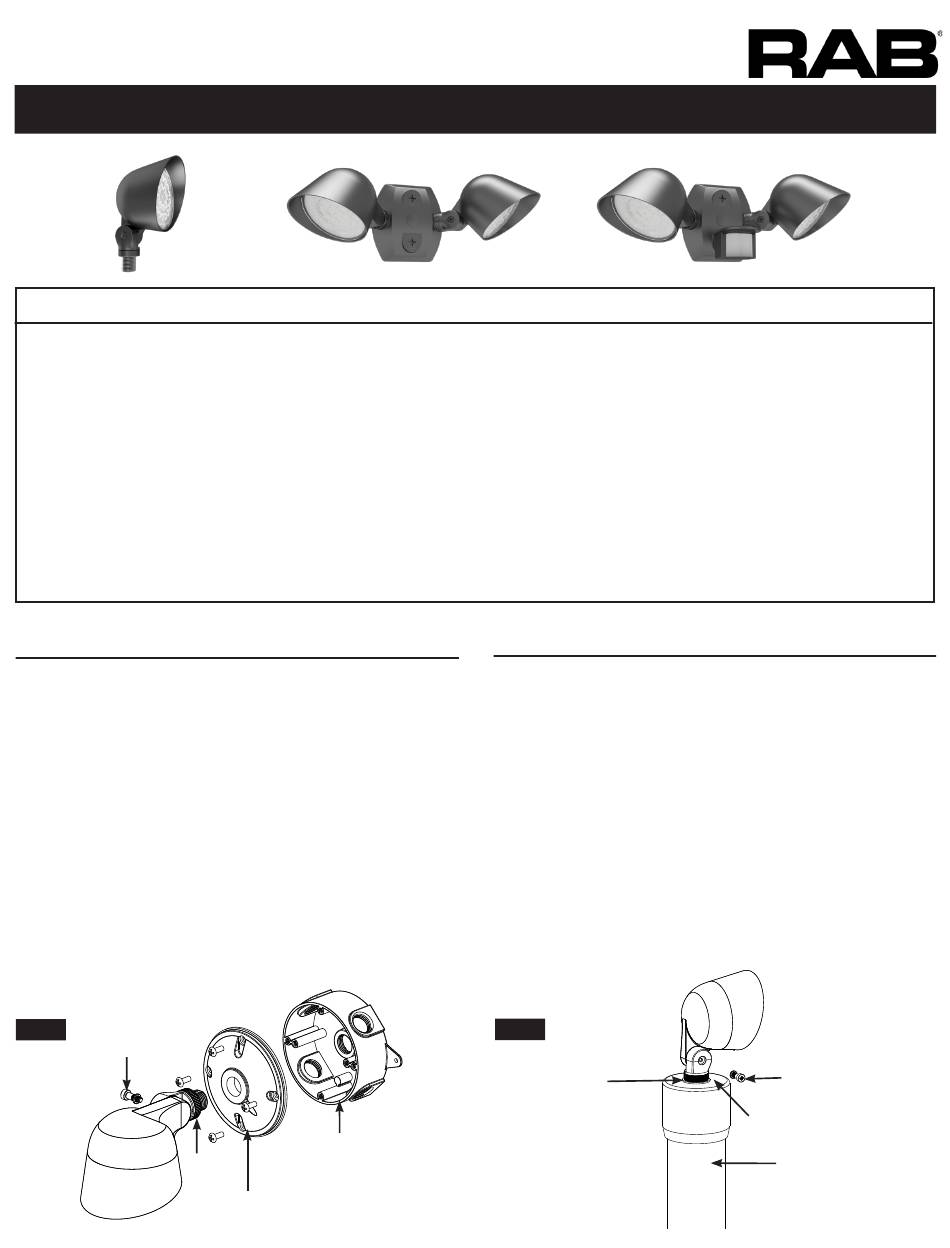

RAB LF17 Instructions Manual

INSTRUCTIONS
LF17™ FIELD-ADJUSTABLE INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
firmly. Apply weatherproof silicone sealant around the edge of the ceiling or wall mounting box and/or junction box. This is
especially important with an uneven surface. Silicone all plugs and unused conduit entries.
Suitable for Wet locations.
LF17 (Single Head) is suitable for mounting within 1.2m (4ft) of the ground.
Min. 75° Supply Conductors.
120V AC ONLY.
WALL MOUNTING
Mount to a weatherproof Junction Box (by others) and Cover
Plate (by others) as shown in Fig. 1.. Apply weatherproof silicone
sealant around the edge of the Junction Box. This is especially
important with an uneven wall surface.
1. Thread fixture into Cover Plate. Use silicone sealant or Teflon®
tape around the thread of the arm.
2. Connect wires as shown in the wiring section ( Fig. 6). Use
appropriate UL-approved wire connectors as required by
code to complete wiring. Be careful not to pinch wires.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sheet metal or other sharp
objects.
3. Attach Cover Plate to Junction Box.
4. Aim Fixture in the desired direction and tighten Locknut and
Arm Screw.
6
FIG. 1
Arm Screw
Locknut
(Single Head)
Junction Box
(by others)
Cover Plate
(by others)
GROUND MOUNTING
Mount to a Mighty Post ( ordered separately, RAB Cat# MP19) as
shown below (Fig. 2).
1. Thread Fixture into Mighty Post
Teflon® tape around the thread of the arm.
2. Connect wires as shown in the wiring section ( Fig. 6). Use
appropriate UL-approved wire connectors as required by
code to complete wiring. Be careful not to pinch wires.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sheet metal or other sharp
objects.
3. Place Mighty Post Cap on the Mighty Post.
4. Aim Fixture in the desired direction and tighten Locknut and
Arm Screw.
6
FIG. 2
Locknut
(Single Head)
Cap. Use silicone sealant or
Arm Screw
Mighty Post Cap
Mighty Post
