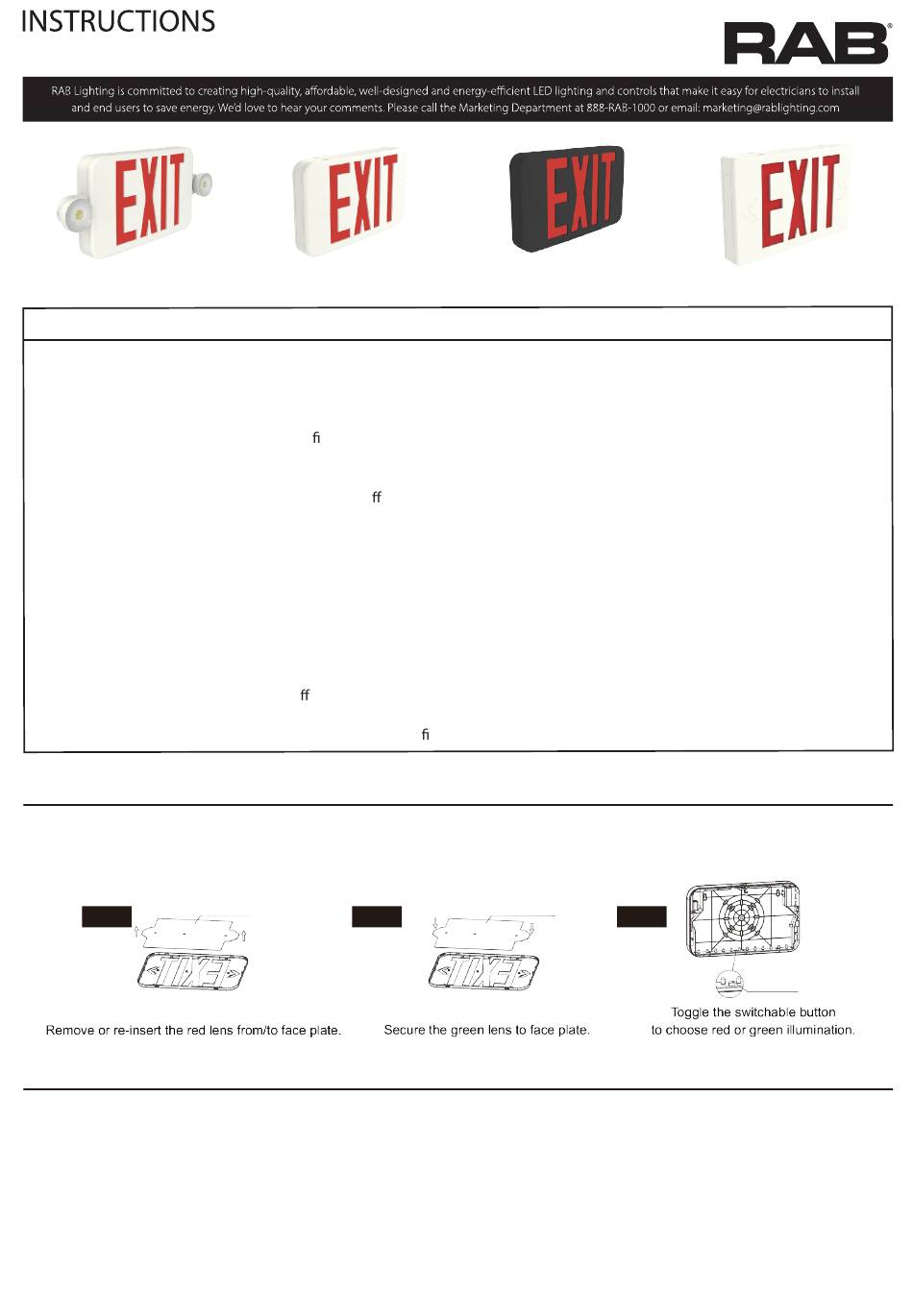

RAB ECOMBO34-RG Instructions

EMERGENCY EXIT SIGN/COMBO INSTALLATION
ECOMBO34-RG
ECOMBO34-RGR
M I PORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
• When re-lamping, only use lamps speci ed in the exit sign. Using other lamp types may result in damage to the unit or
unsafe conditions.
• Battery in this unit may not be fully charged. After electricity is hooked up to unit, let the battery charge for at least 24 hours.
Normal operation of this unit should then take e ect.
IMPORTANT SAFEGUARDS:
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized
personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Do not use this equipment for other than its intended use.
• Before wiring to power supply, turn o electricity at fuse or circuit breaker.
• Consult local building code for approved wiring and installation.
• Installation and servicing should be performed by quali ed personnel.
IMPORTANT CODE COMPLIANCE INFORMATION (suitable for all items in this instruction)
In accordance with NFPA 101 (current Life Safety Code), documented testing of your emergency lighting system must betested
monthly for a minimum of 30 seconds and annually for 90 minutes. Refer to your local codes for any additional requirements that may
apply.
Fig. 1
WALL MOUNT INSTALLATION (suitable for all items in this instruction)
1. Remove EXlT stencil faceplate from housing. Remove RED lens from faceplate (see Fig. 1). Set aside.
2. Drill or knock out appropriate knockouts on back plate to fit junction box mounting points.
3. Drill or knock out center hole in back plate for EXlT supply wire leads.
4. Route EXIT input wires through center hole of the back plate and make wiring connection.
5. Secure back plate to junction box (hardware not included).
6. Toggle the switch to select GREEN, if applicable (see Fig. 3).
7. Connect battery.
8. Remove knockout chevron/arrow(s) on faceplate, as needed. Reinsert RED lens to faceplate (see Fig. 1) (or GREEN if applicable, see
Fig. 2). Secure EXlT stencil faceplate back onto housing.
9. Apply continuous Ac power, LED indicator will be RED.
10. Press "TEST" button to check operation.
EXIT34-RG
EXIT34-RG/E
RED Lens
Fig. 2
EXIT34-RG/E-B
GREEN Lens
Fig. 3
EXIT-R
Switchable
Button
