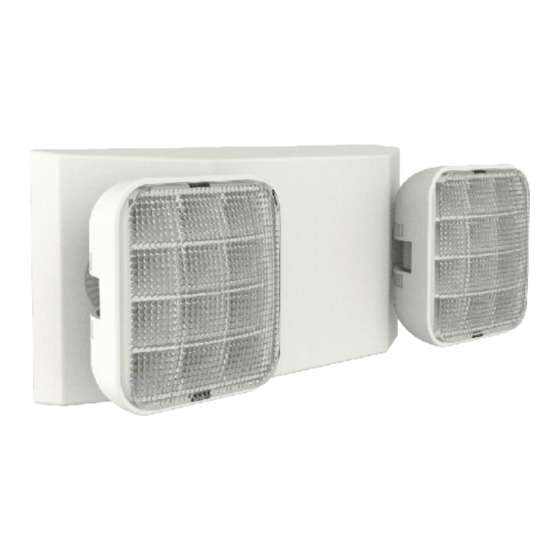

EM EMERGENCY LIGHTING
EM
EM-R
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
IMPORTANT:
Let the battery charge up for at least 24 hours.Then normal operation of this unit should take e ect. To check, press the "
TEST " button. The LED lamps on the unit should turn ON. During an electrical power failure, the led lamps will automatically
come on for a minimum of 90 minutes. In accordance with NFPA 101, your emergency lighting system must be tested
monthly for a minimum of 30 seconds and annually for 90 minutes. Refer to your local codes for any additional requirements
that may apply.
IMPORTANT SAFEGUARDS:
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Equipment should be mounted in locations and at heights where it will not be subject to tampering by unauthorized
personnel.
3. Do not mount near gas or electric heaters.
4. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for anything other than its intended use.
6. Servicing of this equipment should be performed by quali ed personnel.
7. Disconnect AC power before servicing.
J-BOX MOUNTING INSTALLATION
1. Feed fixture leads through the back plate and connect to AC power supply (Fig. 1).
2. Attach back plate to J-Box and secure with screws.
3. Complete the battery connection. (Fig. 2)(EM34, EM34-R, EMR, EMR-R are the same operation)
4. Align snaps and push housing directly onto the back plate (Fig. 3)(EM34, EM34-R, EMR, EMR-R are the same operation). Apply
continuous AC power and press "TEST" button to check light.
Fig: 1
Fig: 2
J-Box
BATTERY CONNECTOR
PLUG IN
EM34
EM34-R
EMR
EMR-R
Fig: 3
