RAB X34 Installation

INSTRUCTIONS
FIELD-ADJUSTABLE X34® INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for
safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user-serviceable parts inside.
NOTE: No user maintenance or cleaning required.
Universal voltage driver permits operation at 120V through 277V, 50 or 60 Hz. Units ordered with /480 su x are 480V only,
50Hz or 60Hz.
Suitable for wet locations. Suitable for mounting within 4ft of the ground.
SLIPFITTER MOUNTING
CAUTION: Do not mount the Slip tter to a Tennon or Bracket
that is more than 20 degrees from vertical. Mounting any angle
other than 0-20 degrees increases the risk of disengagement
and/or failure of the slip tter.
1. The slipfi tter mounting fi ts a 2 3/8" O.D. Tenon. Place the slipfi tter
over the Tenon and secure the fi xture with the two Set Screws
on the side of the slipfi tter.
2. Loosen the Locking Bolt and swivel fi xture to desired angle.
3. Tighten the Locking Bolt.

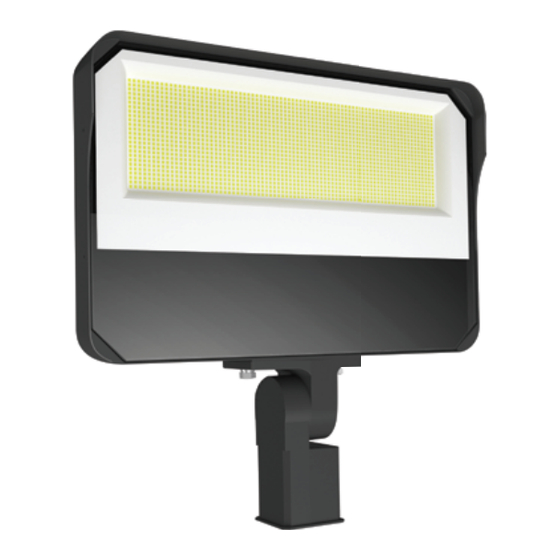

X34 250W
SLIPFITTER/TRUNNION MOUNT
Fig: 1
Set
Screws
Tennon
SLIPFITTER/TRUNNION MOUNT
TRUNNION MOUNTING
CAUTION: UL certi ed liquid-tight cord grip suitable for use
with ve-conductor-type STW exible cord shall be used for
connection to a wet location outlet box provided by others.
To adjust the angle of the fi xture using the trunnion:
1. Loosen the Pivot Bolts & angle locking screw.
2. Adjust fi xture to desired angle.
3. Tighten Pivot Bolts & angle locking screw.
Fig: 2
Locking Bolt
O-Ring
X34 350/450W
Pivot Bolts
