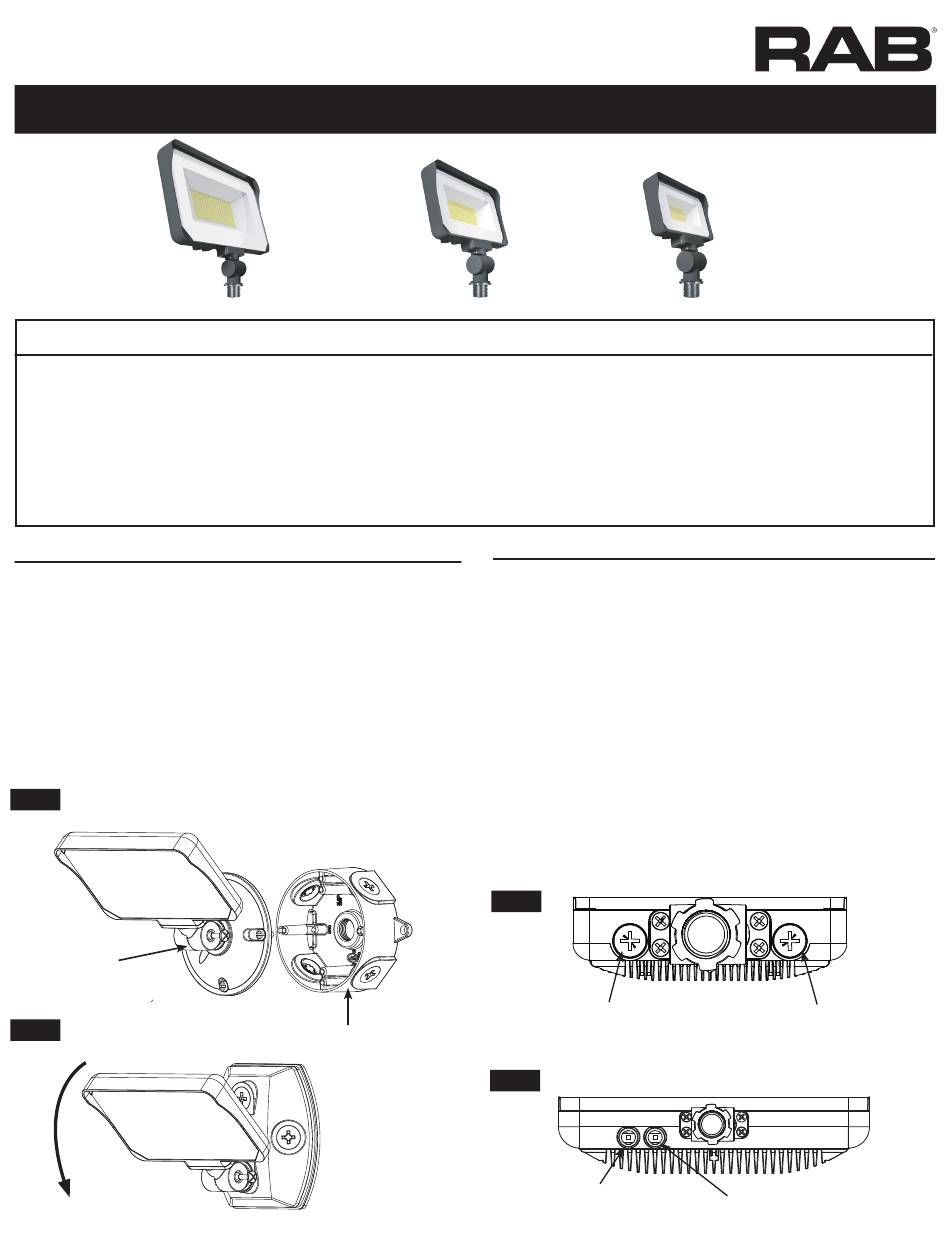

RAB X34 Instructions

INSTRUCTIONS
FIELD-ADJUSTABLE X34
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for
safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user-serviceable parts inside.
Suitable for Wet locations. Min 90° supply conductors.
Fixtures operate at 120V only or 277V only.
KNUCKLE MOUNT
To ensure weatherproof seal, apply weather proof silicone sealant
around the edge of the junction box (by others). This is especially
important with an uneven surface.
1. Secure the fixture to a 1/2" NPS hole in the junction box or
landscape post as shown in Fig. 1. Seal arm thread using
Teflon® tape or silicone sealant.
2. The X34 swivel arm allows 180° of vertical aiming adjustment
depending on the mounting position as shown in Fig. 2.
Fig: 1
Knuckle Mount
Fig: 2
INSTALLATION
®
X34M
Junction Box
X34S
FIELD ADJUSTMENT
Follow instructions below to change the fixture Color Temperature
(CCT) and/or Power (W) from the factory settings.
Factory Settings: X34XS 16W / 4000K
X34S 35W / 4000K
X34M 65W / 4000K
1. Locate the selector switches on bottom of fixture housing as
shown in Fig. 3 and 4, remove plug.
2. Select Color Temperature (CCT) and/or Power (W) by sliding the
respective switch to the desired value.
3. After the switch is positioned to the desired setting replace plug.
Fig: 3
Color (CCT) Selection Switch
Fig: 4
X34S / X34M
Color (CCT) Selection Switch
X34XS
X34XS
Power (W) Selection Switch
Power (W) Selection Switch
