INSTRUCTIONS

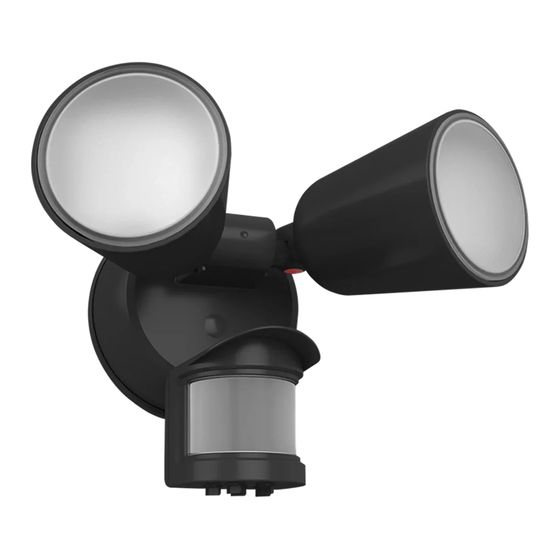

LU160™ INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
CAUTION: All wiring MUST comply with local electrical codes and should be installed by qualified electrician. Read entire Installation
Manual before proceeding. TURN OFF POWER BY REMOVING POWER FUSE OR TURNING OFF CIRCUIT BREAKER BEFORE
INSTALLATION.
The motion detector will not operate correctly if it is installed:
• Near an air conditioning and/or heating unit
• LU160 cannot be used with a dimmer switch, motion or occupancy sensor and other electronic switching devices unless otherwise
designated. LU160 must be powered directly off a switch circuit.
• These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation, operation or maintenance.
WARNING: RISK OF ELECTRICAL SHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Verify that the supply voltage is correct. Connect fixture to a 120 volt, 60 Hz power source.
PRE-INSTALLATION
•

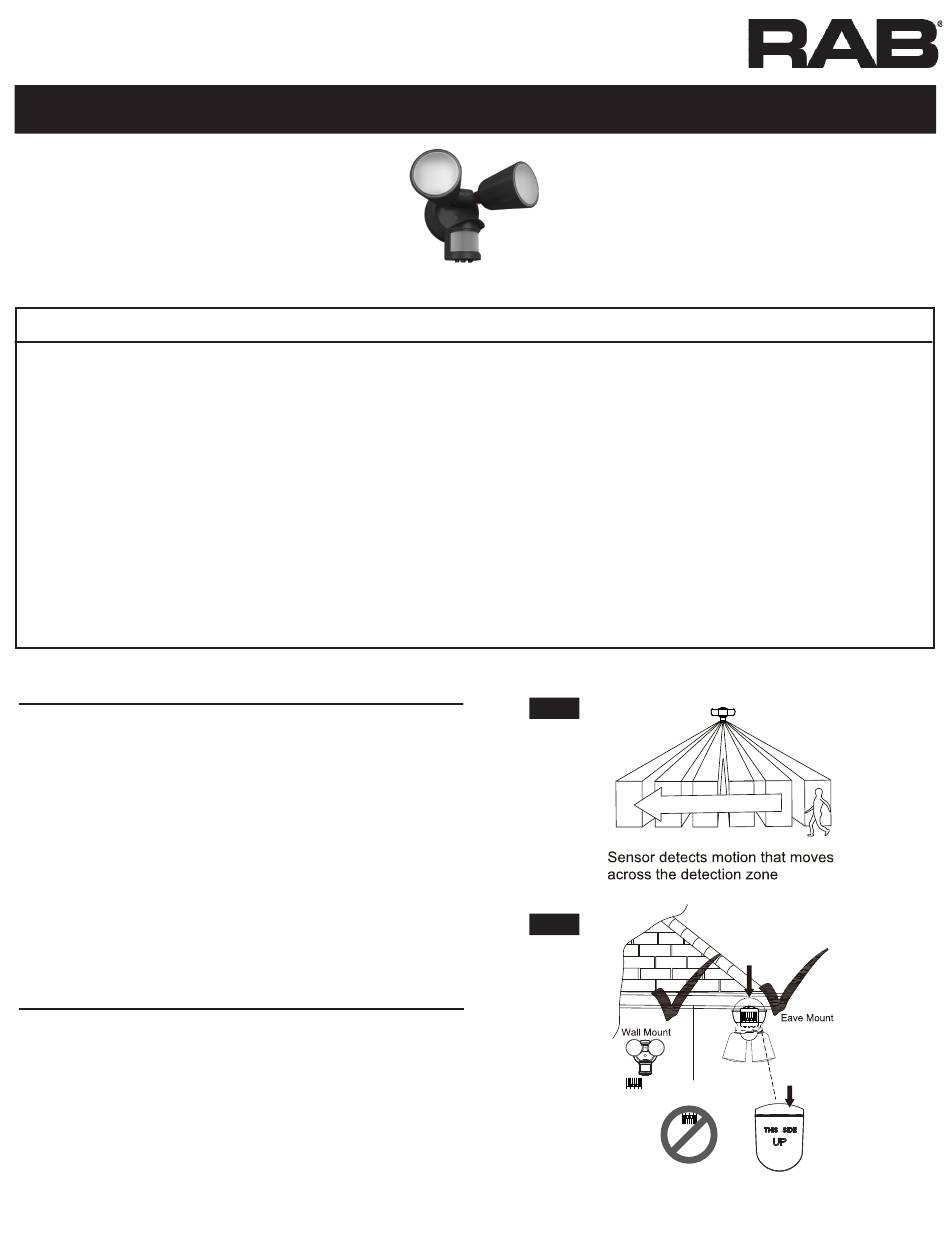

Install the motion sensor between 3-10ft above the ground.
Motion sensor is less sensitive above 10ft.
•
Mount motion sensor so motion moves across detection zone
as shown in Fig 1.
•
Mount sensor away from heat producing sources to prevent
false triggering.
•
Mount motion sensor away from moving objects such as trees
and street traffic.
•
Suitable for wall mounting or eave mounting as shown in Fig 2.
MOUNTING LOCATIONS
•
Determine the mounting location - a Wall or Eave.
•
Make sure "This side UP" on sensor faces up after installation.
•
Position the lamp head in the general direction of the desired
light coverage.
•
If needed, adjust the motion sensor up and down so the
controls faces the ground after installation.
Note: Do not mount this light fixture on the ground.
LUMINATOR
Fig: 1
Fig: 2
