Summary of Contents for RAB Lightcloud PIR40/LCB
- Page 1 WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 544-4825...
- Page 2 The Lightcloud Blue High Bay Low Voltage PIR Controller is a controller with 12V AUX supply and intergrated with dual-techology motion detector and daylight sensor that can switch and dim both local and remote circuits. The Lightcloud Blue High Bay Low Voltage Controller can be quickly and easily installed on compatible LED fixtures.
-
Page 3: Specifications
Specifications PART NUMBER PRODUCT DIMENSIONS 2.13"(D) x 2.13"(L) x 1.8"(H) WIRELESS Range SENSOR COVERAGE ≤60 ft. SENSOR TYPE SENSOR CONNECTION ENVIRONMENT MOUNTING HEIGHT Indoor/Outdoor (IP66) -
Page 4: Setup And Installation
Setup & Installation... - Page 5 Setup & Installation (Cont’d) INDOOR Add an additional Lightcloud Blue Device to extend network range around corners <=60 ft. <=60 ft. Lightcloud DRYWALL OR SIMILAR Blue APP Recommend <30ft (varies based on mobile device's BLE capability)
- Page 6 Setup & Installation (Cont’d) OUTDOOR Add an additional Lightcloud Blue Device to extend network range < 18ft. <=60 ft. around corners < 18ft. <=60 ft. Lightcloud DRYWALL OR SIMILAR Blue APP Recommend <30ft (varies based on mobile device's BLE capability)

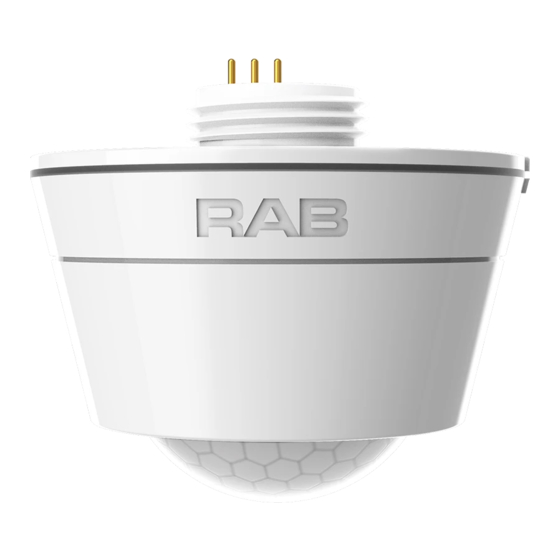

- Page 7 Setup & Installation (Cont’d) The Lightcloud Blue High Bay Low Voltage PIR Controller installs in compatible sensor ports using a 3-pogo pin connection. Black White +12V 12VDC input Pink GND 0/1-10V DIM Purple DIM+ 0/1-10V DIM+ GND/DIM- DIM+ LED+ LED-...
- Page 8 Setup & Installation (Cont’d) 1/2” knockout sensor...
- Page 9 Setup & Installation (Cont’d) Mount using the Right Angle Arm Support (RAAS): Connect the High Bay Low Voltage PIR Controller to the RAAS by turning clockwise. See the RAAS instruction manual for wiring instructions to compatible fixtures. High Bay Low Voltage Controller /Sensor Bracket...
- Page 10 Setup & Installation (Cont’d) Restore to Factory Settings To restore your Lightcloud Blue Low Voltage MVS Controller to factory settings, you can reset it using the following methods: Method 1: Delete from app If the controller was previously paired, open the mobile app and access the device settings for the paired device.
- Page 11 The Rapid Reset process must be done by professional electricians qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the device for 2 seconds or until the light begins to flash 3x, then it will reset...
- Page 12 Controlling your Lightcloud Blue Device ® ®...
- Page 13 Controlling your Lightcloud Blue Device (Cont’d) Once added, move to an Area to configure sensor settings. Optional: Open the device settings to adjust the Dim-to-Off Threshold (0-2V) to get the lowest dim level. (Default Threshold: 1V)
- Page 14 Sensor Coverage 39ft walking towards walking across...
- Page 15 Sensor Coverage 39.37ft 19.68ft 13.12ft 6.56ft 6.56ft 19.68ft 13.12ft...
- Page 18 Configuration www.rablighting.com 1(844) LIGHTCLOUD 1(844) 544-4825 ©2024 RAB LIGHTING Inc. Custom manufactured in China Pat. rablighting.com/ip P-100851...
