Inspire UCHR1 User Manual

Ultimate commercial half rack
Hide thumbs

Advertisement

Quick Links

Download this manual
UCHR1
ULTIMATE COMMERCIAL HALF RACK
user's manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the UCHR1 and is the answer not in the manual?

Questions and answers

Related Manuals for Inspire UCHR1

Summary of Contents for Inspire UCHR1

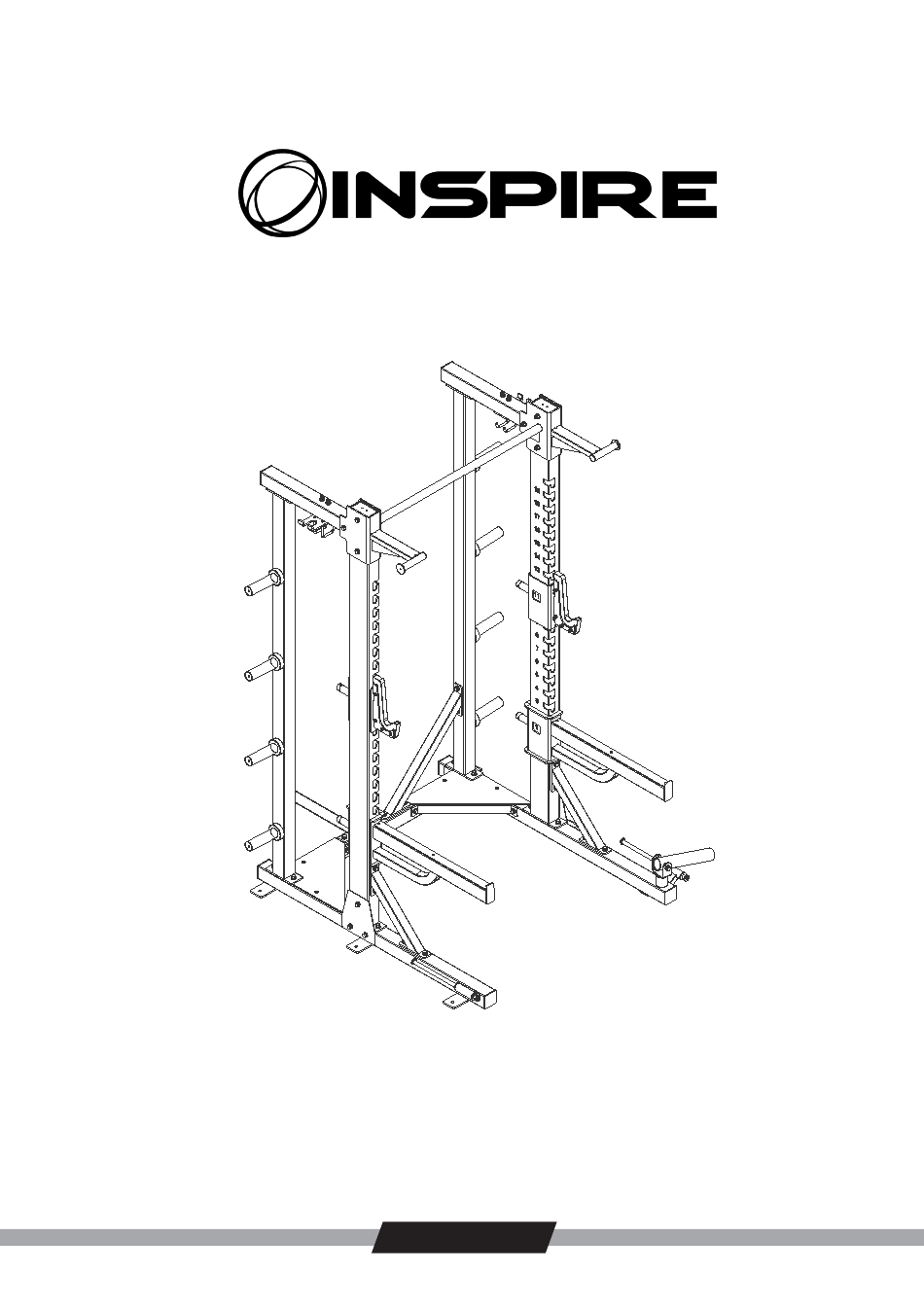

  • Page 1 UCHR1 ULTIMATE COMMERCIAL HALF RACK user's manual...

  • Page 2: Table Of Contents

    15~16 BEFORE YOU BEGIN Thank you for selecting the INSPIRE UCHR1 RACK. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to providing you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, please call our TOLL-FREE customer service number.

  • Page 3: Important Safety Notice

    IMPORTANT SAFETY NOTICE Precautions This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. Please note the following safety precautions: 1.Always keep children and pets away from the machine.

  • Page 4: Parts List 3~4

    Parts list Please identify all components before starting assembly. Please identify all components before starting assembly. Name Description Left Column Frame SH-G8901-01 Right Column Frame SH-G8901-02 Left Bottom Frame SH-G8901-T4-01 Right Bottom Frame SH-G8901-T4-02 Rear Bottom Frame SH-G8901-T4-03 Front Connecting Rack SH-G8901-T4-04 Right Hook SH-G8901-T4-05...
  • Page 5 Name Description Round inner tube plug φ32*t2.0 *￠32*90 Hand grip ￠22.3 Handle tube cover ￠33*￠25.6*20 Window sticker inner50*50，outer64*64 Sticker ￠43*1.8 Hex bolts M12*110 Half Thread Hex bolts M12*25 Full thread Hexagon bolt with M12*25 Full thread semicircular head Hexagon bolt with M8*20 Full thread semicircular head Hexagon bolt with...

  • Page 6: Exploded View

    EXPLODED VIEW 36 43 43 45 41 41 36 43 PAGE 5...

  • Page 7: Hardware Pack

    HARDWARE PACK PAGE 6...

  • Page 8: Assemble Steps

    Assemble steps Name Step 1: Left Column Frame Left Bottom Frame Fasten the left column frame(1) to the left bottom frame(3), cross connection beam(10), rear support Cross Connection Beam frame(11), decorative plate(12), and reinforcement Rear support frame bracket(15). Decorative plates Insert the slider(53) into the Left Bottom Frame(3).
  • Page 9 Step 2: Name Fasten the right column frame(2) to the Right Column Frame right bottom frame (4), cross connection beam (10), rear support frame (11), Right Bottom Frame decorative plate (12), and reinforcement Cross Connection Beam bracket(15). Rear support frame Insert the slider (53) into the Right Bottom Frame (4) Then, install the baffles (54) at Decorative plates...
  • Page 10 Step 3: Fasten rear bottom frame(5) with the left Name bottom frame(3), and right bottom Rear Bottom Frame frame(4) as illustrated. Front Connecting Rack Use bolts (35),flat washers (45), spring washers (43), locknuts (47) to fasten Hex bolts M12*110 Front Connecting Rack (6) to the left Hex bolts M12*25 column frame (1), and to the right column Spring washer￠19.1*￠12.9*3.1...
  • Page 11 Step 4: Name Fasten reinforcement brackets Reinforcement bracket (15) and inclined support frame(51) to the left bottom frame Hex bolts M12*25 (3), the right bottom frame (4), the Spring washer￠19.1*￠12.9*3.1 rear bottom frame (5), and the rear Flat washer￠13*￠24*2.5 support frame (11), as illustrated. Inclined support frame PAGE 10...
  • Page 12 #50 M12*105 4PCS #40 M8*15 4PCS #45 ￠ 13* ￠ 24*2.5 8PCS #47 M12 4PCS #55 2PCS #56 1PCS Step 5: Thread plate assembly, 2 places, left and right side.Locate and Place the left thread plate (16) in place, match the holes to the frame and fasten Name with screw (40).
  • Page 13 Check that all bolts are securely fasten in place. The installation is now complete. PAGE 12...

  • Page 14: Specifications

    Specifications This exercise machine is built for anaerobic exercises for indoor use. Meet the paths of movement, in accordance with the standard of GB17498-2208 /ISO20957:2005/GB5296-2008. Safety and durability is guaranteed. Main Frame (125*75) steel tubing with electrostatic spray Safety protection frame Combination of plastic and steel, the thickness of protection tube is 3.0mm, height 800mm, anti-shock 300kg.

  • Page 15: Operation Guide/Products Data

    1.Extract upwards and off to the numbered side for adjustment. 2. For safety, place safety protection tube below the adjustment hook. Products Data Name Model SH-G8901 UCHR1 RACK Dimension 1510*1675*2465MM Weight Plates 260KG Maximum Net Weight 183KGS ≤150KGS...

  • Page 16: Warranty/Disclaimer 15~16

    Warranty This Warranty applies to Inspire Strength products manufactured or distributed by Health In Motion LLC. CONSUMER USE: LIGHT-COMMERCIAL USE: COMMERCIAL USE: LIMITED LIFETIME FRAME: LIMITED LIFETIME FRAME: LIMITED LIFETIME FRAME: Includes Frame and Welds Includes Frame and Welds Includes Frame and Welds...
  • Page 17 This is the only express warranty applicable to Health In Motion’s “Inspire” branded strength products. Health In Motion neither assumes nor authorizes anyone to assume for it any other express warranty.

This manual is also suitable for:

Sh-g8901
