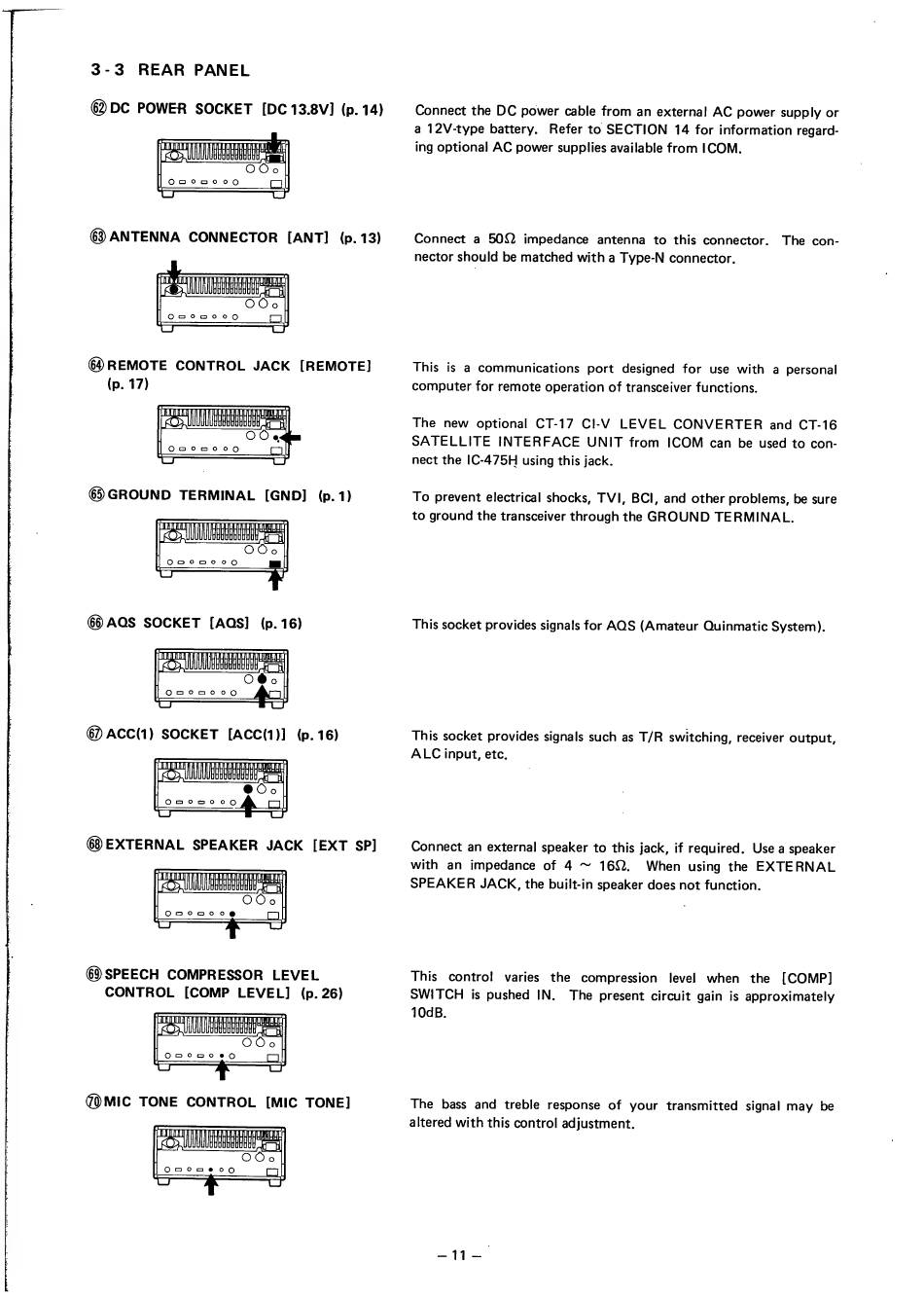

3-3 REAR PANEL
Connect а 509 impedance antenna to this connector. The con-
nector should be matched with a Type-N connector.
The new optional CT-17 CI-V LEVEL CONVERTER and CT-16
SATELLITE INTERFACE UNIT from ICOM can be used to con-
nect the IC-475H using this jack.
To prevent electrical shocks, TVI, ВС!, and other problems, be sure
to ground the transceiver through the GROUND TERMINAL.
This socket provides signals for AOS (Amateur Quinmatic System).
This socket provides signals such as T/R switching, receiver output,
ALC input, etc.
Connect an external speaker to this jack, if required. Use a speaker
with an impedance of 4 ~ 165. When using the EXTERNAL
SPEAKER JACK, the built-in speaker does not function.
The bass and treble response of your transmitted signal may be
altered with this control adjustment.
-11-
