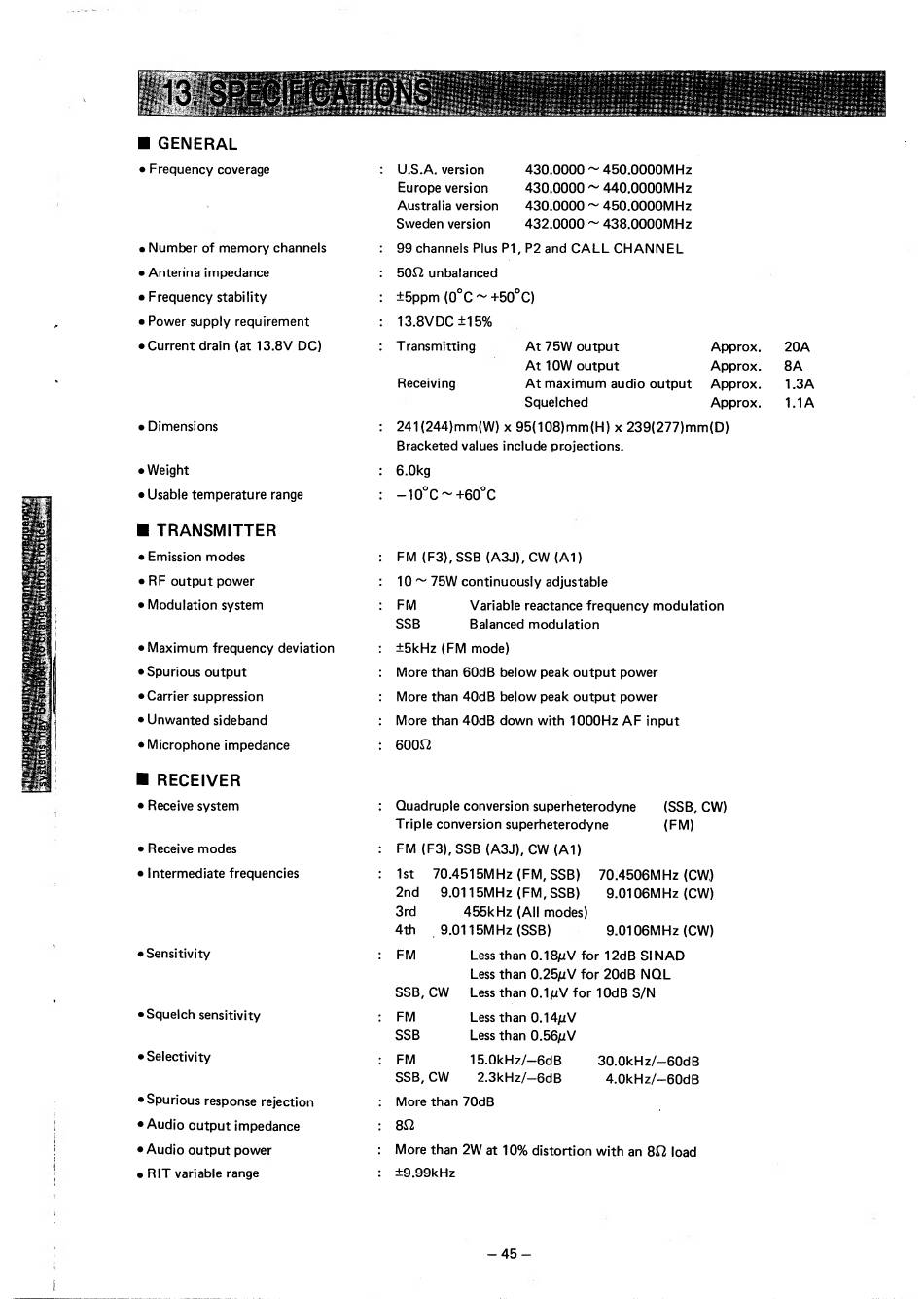

Ш GENERAL
e Frequency coverage
e Number of memory channels
e Antenna impedance
e Frequency stability
e Power supply requirement
e Current drain (at 13.8V DC)
e Dimensions
e Weight
e Usable temperature range
Ш TRANSMITTER
e Emission modes
e RF output power
е Modulation system
e Maximum frequency deviation
e Spurious output
e Carrier suppression
* Unwanted sideband
е Microphone impedance
Ш RECEIVER
е Receive system
e Receive modes
e Intermediate frequencies
е Sensitivity
eSquelch sensitivity
e Selectivity
e RIT variable range
U.S.A. version 430.0000 ~ 450.0000MHz
Europe version 430.0000 ~ 440.0000MHz
Australia version 430.0000 ~ 450.0000MHz
Sweden version 432.0000 ~ 438.0000MHz
99 channels Plus P1, P2 and CALL CHANNEL
5052 unbalanced |
+5ppm (0°С ~ +50°C)
13.8VDC +15%
Transmitting At 75W output Approx. 20А
At 10W output Approx. 8A
Receiving At maximum audio output Approx. 1.3A
Squelched Approx. 1.1A
241(244)mm(W) x 95(108)mm(H) x 239(277)mm(D)
Bracketed values include projections.
6.0kg
—10°C ~ +60°C
FM (F3), SSB (A3J), CW (A1)
10 ~ 75W continuously adjustable
FM Variable reactance frequency modulation
SSB Balanced modulation
+5kHz (FM mode)
More than 60dB below peak output power
More than 40dB below peak output power
More than 40dB down with 1000Hz AF input
60052
Quadruple conversion superheterodyne (SSB, CW)
Triple conversion superheterodyne (FM)
FM (F3), SSB (A3J), CW (A1)
1st | 70.4515MHz (FM, SSB) 70.4506MHz (CW)
2nd 9.0115MHz (FM, SSB) — 9.0106MHz (CW)
3rd 455kHz (АП modes)
4th | 9.0115MHz (SSB) 9.0106MHz (CW)
FM Less than 0.18uV for 12dB SINAD
Less than 0.25иМ for 20dB NOL
SSB, CW Less than O.1u V for 10dB S/N
FM Less than O.14uV
SSB Less than 0.56uV
FM 15.0kHz/—6dB 30.0kHz/—60dB
SSB, CW 2.3kHz/—6dB
More than 70dB
89
More than 2W at 10% distortion with an 80 load
x9.99kHz
4.0kHz/—60dB
