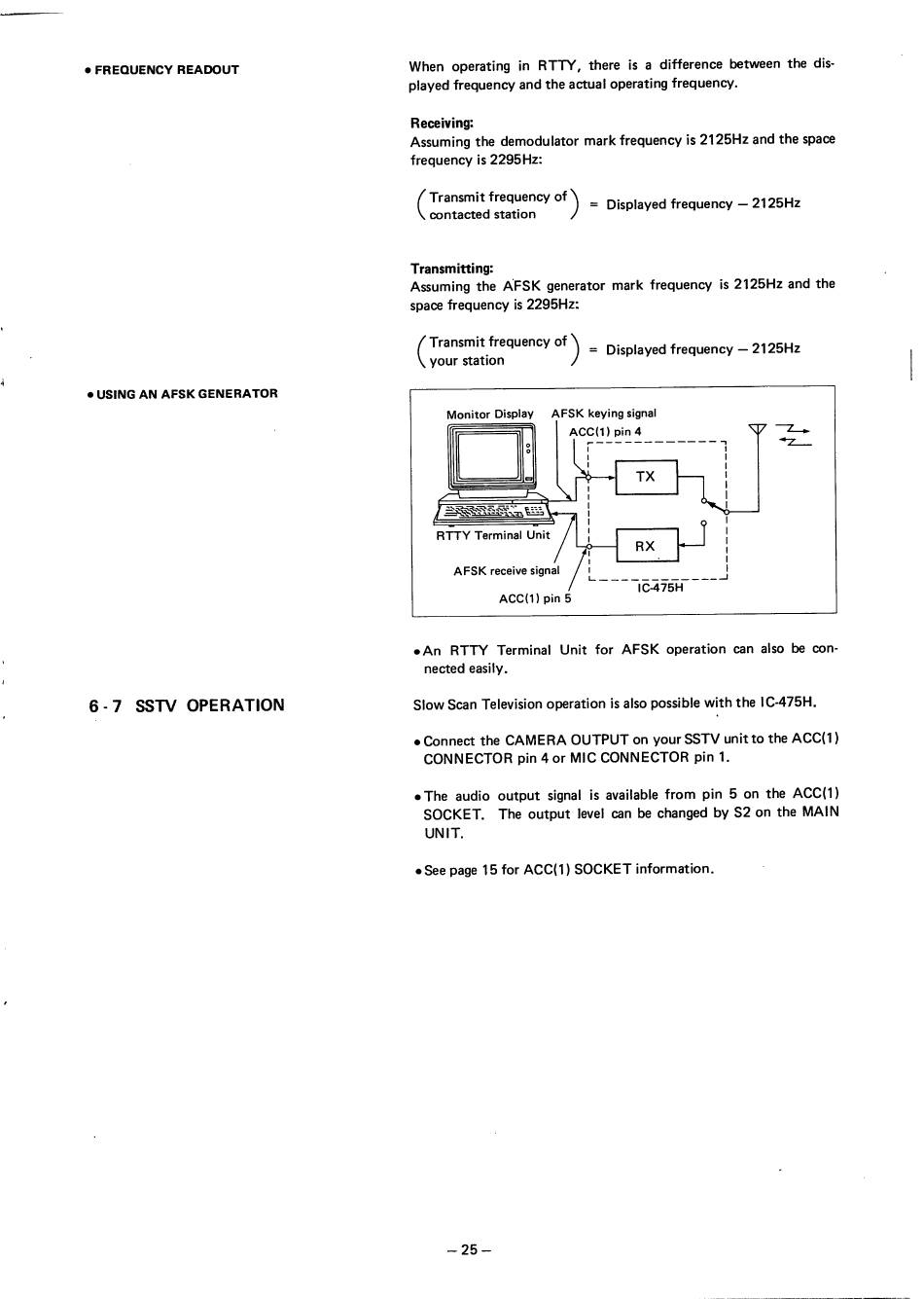

Icom IC-475H Instruction Manual page 28

e FREQUENCY READOUT
e USING AN AFSK GENERATOR
6-7 SSTV OPERATION
Receiving:
Assuming the demodulator mark frequency is 2125Hz and the space
frequency is 2295 Hz:
Transmit frequency of
Transmitting:
Assuming the AFSK generator mark frequency
is 2125Hz and the
space frequency is 2295Hz:
Transmit frequency of
Monitor Display AFSK keying signal
ACC(1) pin 4
RTTY Terminal Unit
AFSK receive signal
1С-475Н
ACC(1) pin 5
eAn RTTY Terminal Unit for AFSK operation can also be con-
nected easily.
Slow Scan Television operation is also possible with the 1C-475H.
e Connect the CAMERA OUTPUT on your SSTV unit to the ACC(1)
CONNECTOR pin 4 or MIC CONNECTOR pin 1.
e See page 15 for ACC(1) SOCKET information.
-25-
