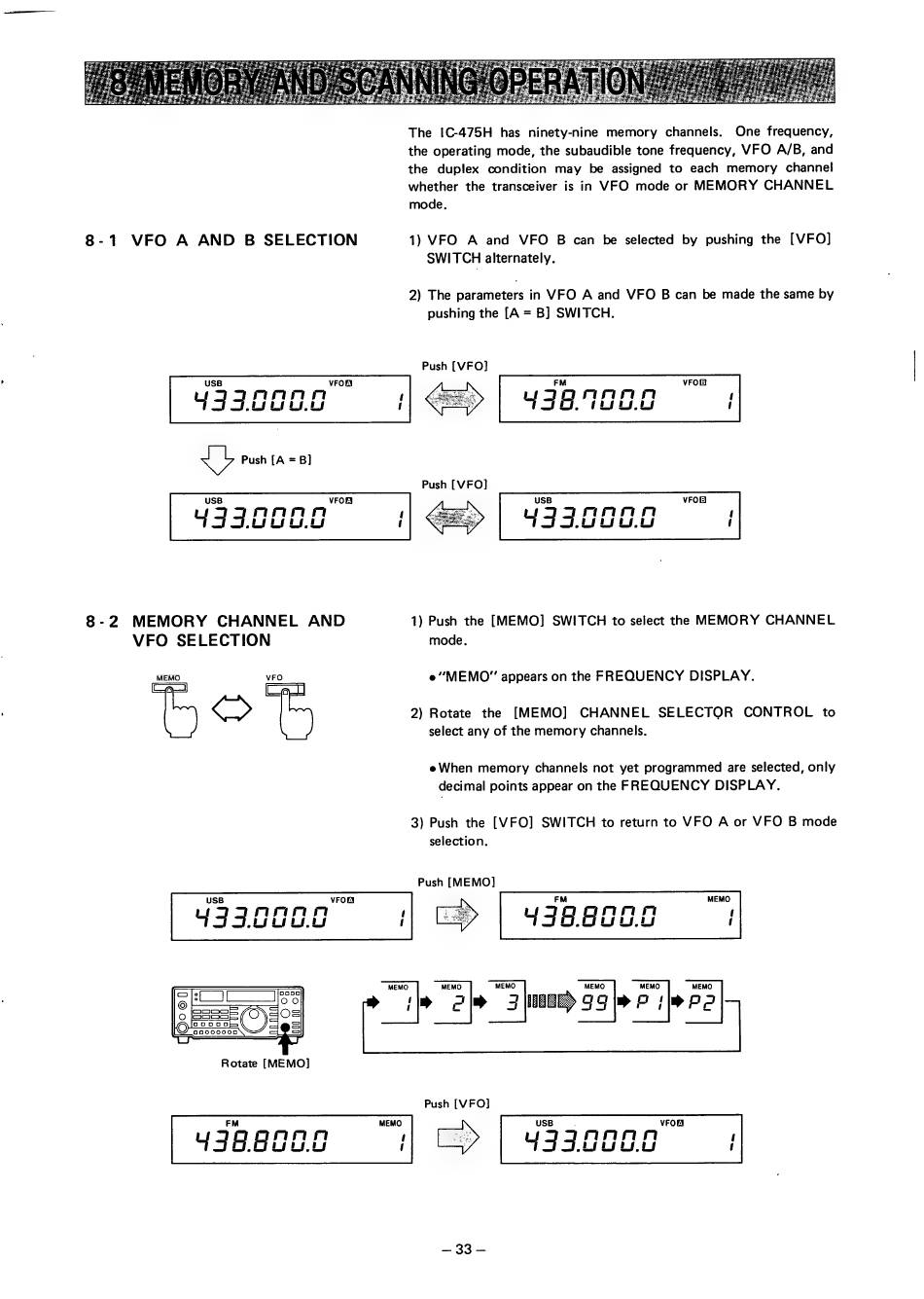

Icom IC-475H Instruction Manual page 36

8-1 МЕО A AND В SELECTION
8-2 MEMORY CHANNEL AND
VFO SELECTION
MEMO
-
=m
The 1С-475Н has ninety-nine memory channels. One frequency,
the operating mode, the subaudible tone frequency, VFO A/B, and
the duplex condition may be assigned to each memory channel!
whether the transceiver is in VFO mode or MEMORY CHANNEL
mode.
1) VFO A and VFO B can be selected by pushing the [VFO]
SWITCH alternately.
2) The parameters in VFO A and VFO B can be made the same by
pushing the [A = B] SWITCH.
Push [VFO]
VFOR
үЕОН
1) Push the [MEMO] SWITCH to select the MEMORY CHANNEL
mode.
e "MEMO" appears on the FREQUENCY DISPLAY.
2) Rotate the [MEMO] CHANNEL SELECTOR CONTROL to
select any of the memory channels.
e When memory channels not yet programmed are selected, only
decimal points appear on the FREQUENCY DISPLAY.
3) Push the [VFO] SWITCH to return to VFO A or VFO B mode
selection.
Push [MEMO]
Push [VFO]
-33-
