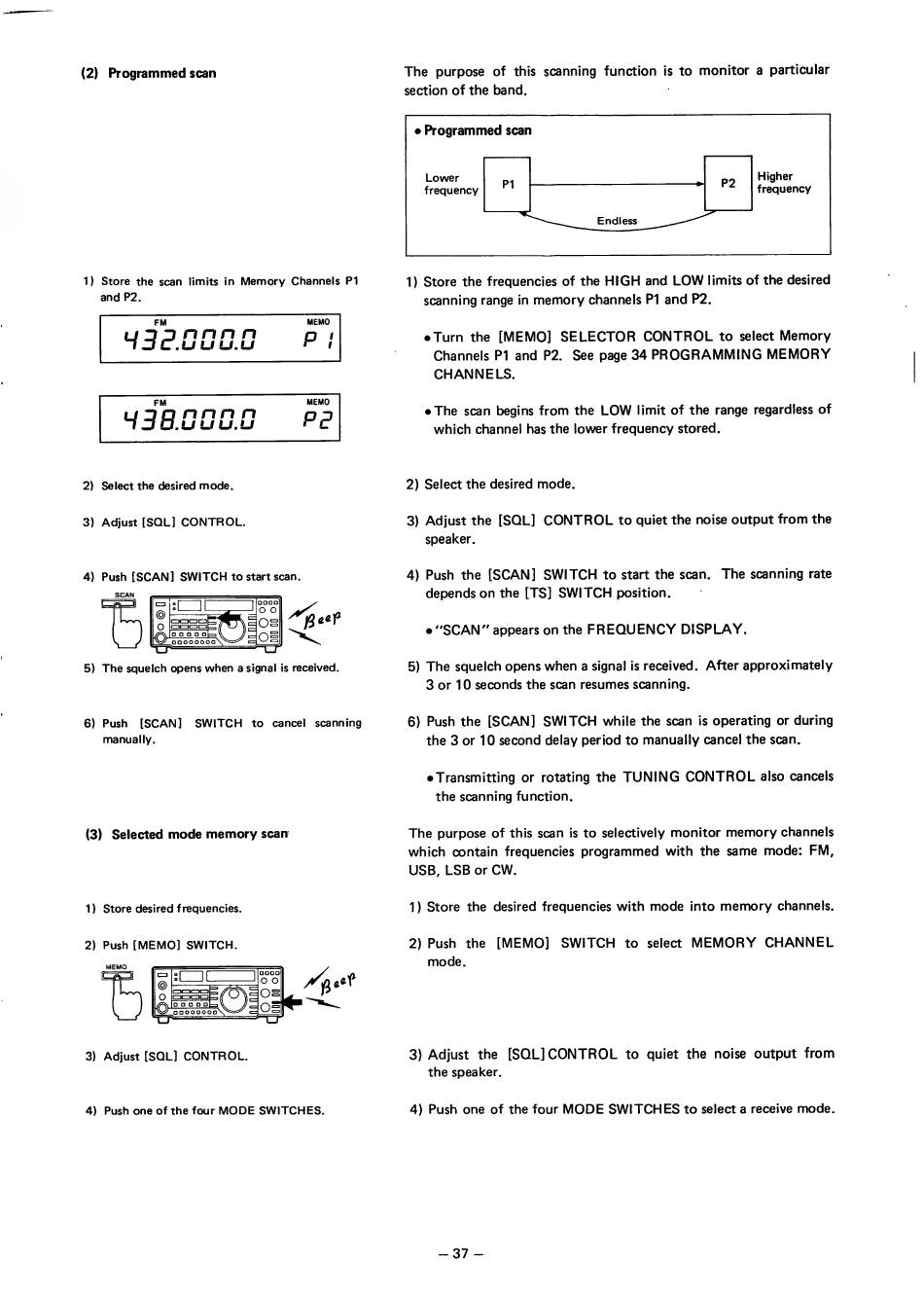

Icom IC-475H Instruction Manual page 40

(2) Programmed scan
1) Store the scan limits in Memory Channels P1
and P2.
FM MEMO
Ч3е0000 Pi
FM MEMO
2) Select the desired mode.
3) Adjust [SOL] CONTROL.
4) Push [SCAN] SWITCH to start scan.
SCAN
5) The squelch opens when a signal is received.
6) Push [SCAN] SWITCH to cancel scanning
manually.
(3) Selected mode memory scan
1) Store desired frequencies.
2) Push [MEMO] SWITCH.
MEMO
=!
`~
3) Adjust [SQL] CONTROL.
4) Push one of the four MODE SWITCHES.
The purpose of this scanning function is to monitor a particular
section of the band. :
e Programmed scan
Lower Higher
frequency шэг frequency
1) Store the frequencies of the HIGH and LOW limits of the desired
scanning range in memory channels P1 and P2.
e Turn the [MEMO] SELECTOR CONTROL to select Memory
Channels P1 and P2. See page 34 PROGRAMMING MEMORY
CHANNELS.
e The scan begins from the LOW limit of the range regardless of
which channel has the lower frequency stored.
2) Select the desired mode.
3) Adjust the [SOL] CONTROL to quiet the noise output from the
speaker.
4) Push the [SCAN] SWITCH to start the scan. The scanning rate
depends on the [TS] SWITCH position.
e "SCAN" appears оп the FREQUENCY DISPLAY.
5) The squelch opens when a signal is received. After approximately
3 or 10 seconds the scan resumes scanning.
6) Push the [SCAN] SWITCH while the scan is operating or during
the 3 or 10 second delay period to manually cancel the scan.
eTransmitting or rotating the TUNING CONTROL also cancels
the scanning function.
The purpose of this scan is to selectively monitor memory channels
which contain frequencies programmed with the same mode: FM,
USB, LSB or CW.
1) Store the desired frequencies with mode into memory channels.
2) Push the [MEMO] SWITCH to select MEMORY CHANNEL
mode.
3) Adjust the [SOL] CONTROL to quiet the noise output from
the speaker.
4) Push one of the four MODE SWITCHES to select a receive mode.
— 37 —
