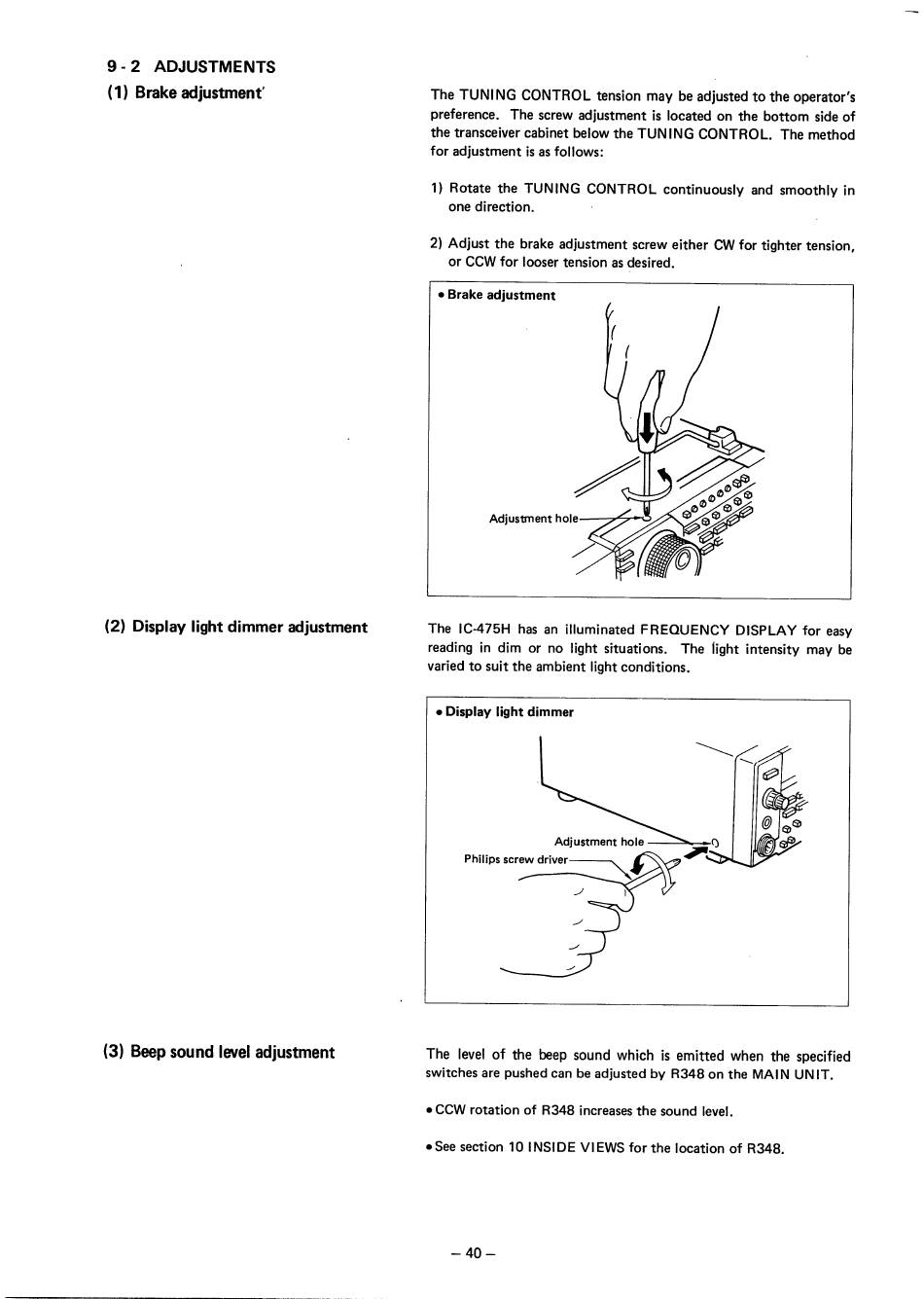

9-2
ADJUSTMENTS
1) Rotate the TUNING
CONTROL
continuously and smoothly т
one direction.
2) Adjust the brake adjustment screw either CW for tighter tension,
or CCW for looser tension as desired.
|
e Brake adjustment
e Display light dimmer
e CCW rotation of R348 increases the sound level.
e See section 10 INSIDE VIEWS for the location of R348.
— 40 —
