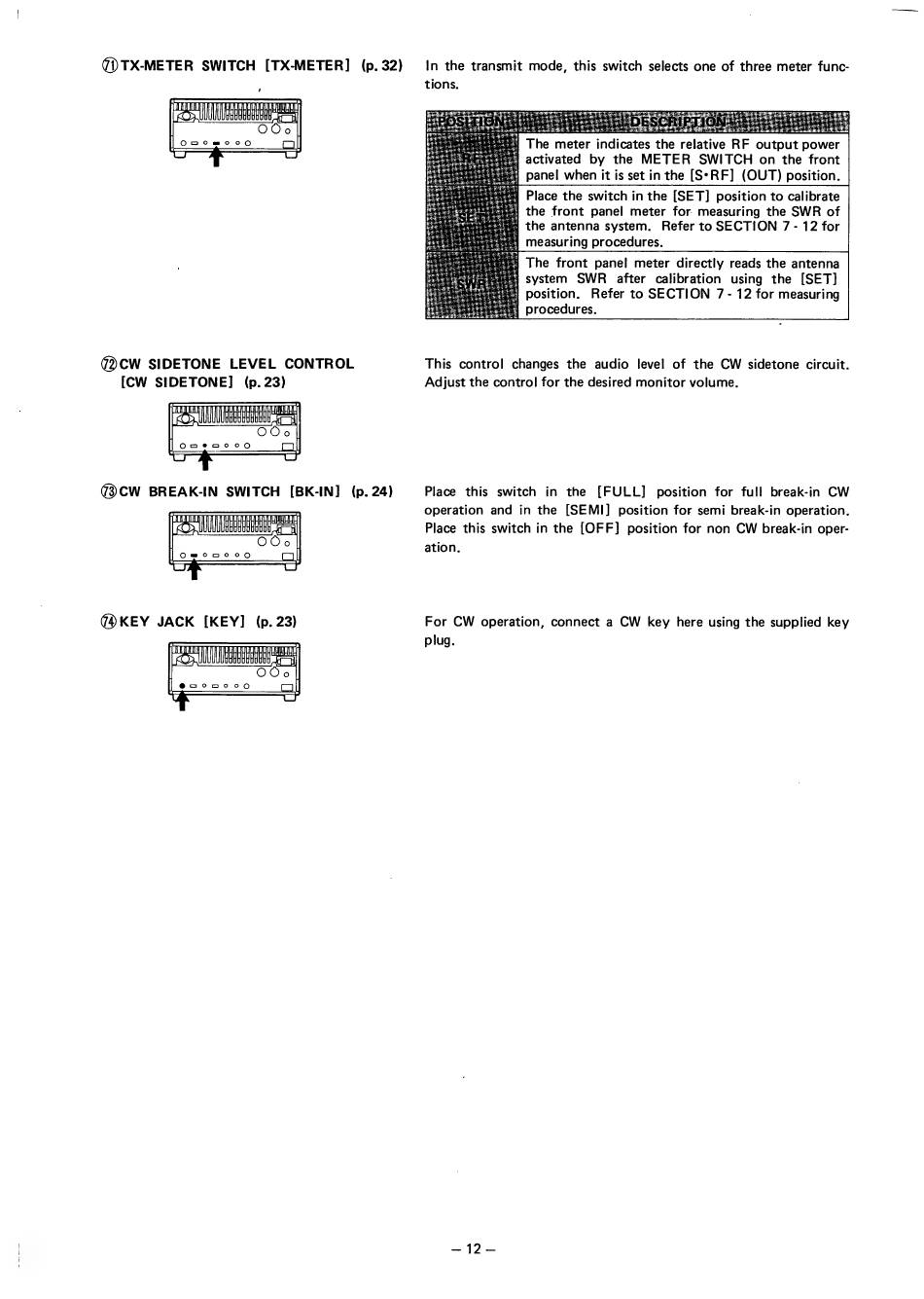

Icom IC-475H Instruction Manual page 15

0) ТХ-МЕТЕВ SWITCH [TX-METER] (p.32) In the transmit mode, this switch selects one of three meter func-
tions.
| The meter indicates the relative RF output power
| activated by the METER SWITCH on the front
panel when it is set in the [$°ВЕ] (OUT) position.
Place the switch in the [SET] position to calibrate
the front panel meter for measuring the SWR of
the antenna system. Refer to SECTION 7 - 12 for
measuring procedures.
The front panel meter directly reads the antenna
system SWR after calibration using the [SET]
| position. Refer to SECTION 7 - 12 for measuring
procedures.
(см SIDETONE LEVEL CONTROL This control changes the audio level of the CW sidetone circuit.
[CW SIDETONE] (p.23) Adjust the control for the desired monitor volume.
Place this switch in the [FULL] position for full break-in CW
operation and in the [SEMI] position for semi break-in operation.
Place this switch in the [OFF] position for non CW break-in oper-
ation.
For CW operation, connect a CW key here using the supplied key
plug.
— 12 —
