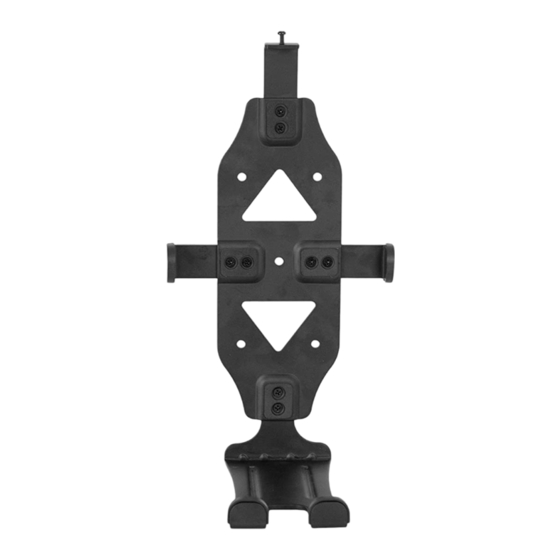

Wall Mount for Xbox Series X
Instruction Manual
SKU: MOUNT-XSXU1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-xsxu1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-XSXU1
Summary of Contents for Vivo MOUNT-XSXU1
- Page 1 Wall Mount for Xbox Series X Instruction Manual SKU: MOUNT-XSXU1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-xsxu1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Remove the paper backing on the pads (G,H,I) and place them as shown below. Note: Do not attach these pads to the Side Supports (C). STEP 2 Assemble the lower support (B), side supports (C) and upper support (D) to the main bracket (A) using M4x5mm bolts (J).
- Page 4 STEP 3 Place the assembled mount against the wall at the desired location and mark drilling locations with a pencil. Use of a level and a stud finder is recommended. Vertical Mount Horizontal Mount...
- Page 5 STEP 4 OPTION A: Wood Stud: Drill 1.5” (38mm) deep holes using a 3/32” (2.5mm) drill bit. Follow drywall installation instructions for all remaining mounting holes. Install the mount to the wall using ST5x40mm screws (M) with a Phillips screwdriver. Vertical Mount Horizontal Mount...
- Page 6 STEP 4 (Continued) OPTION B: Drywall: Using a 5/16” (8mm) bit, drill fully through for drywall. Insert the anchors (N) into the holes. Install the mount to the wall using ST5x40mm screws (M) with a Phillips screwdriver. Vertical Mount Horizontal Mount STEP 5 Pre-install lock screw (K or L) so the bottom of the screw is flush with the bottom of the Upper Support (D).
- Page 7 STEP 6 Vertical mounting: Place the console into the mount, making sure the console is facing to the left or right so as not to block the rear ports. Horizontal mounting: Place the console into the mount, making sure the console is facing up so it does not block the rear ports.
