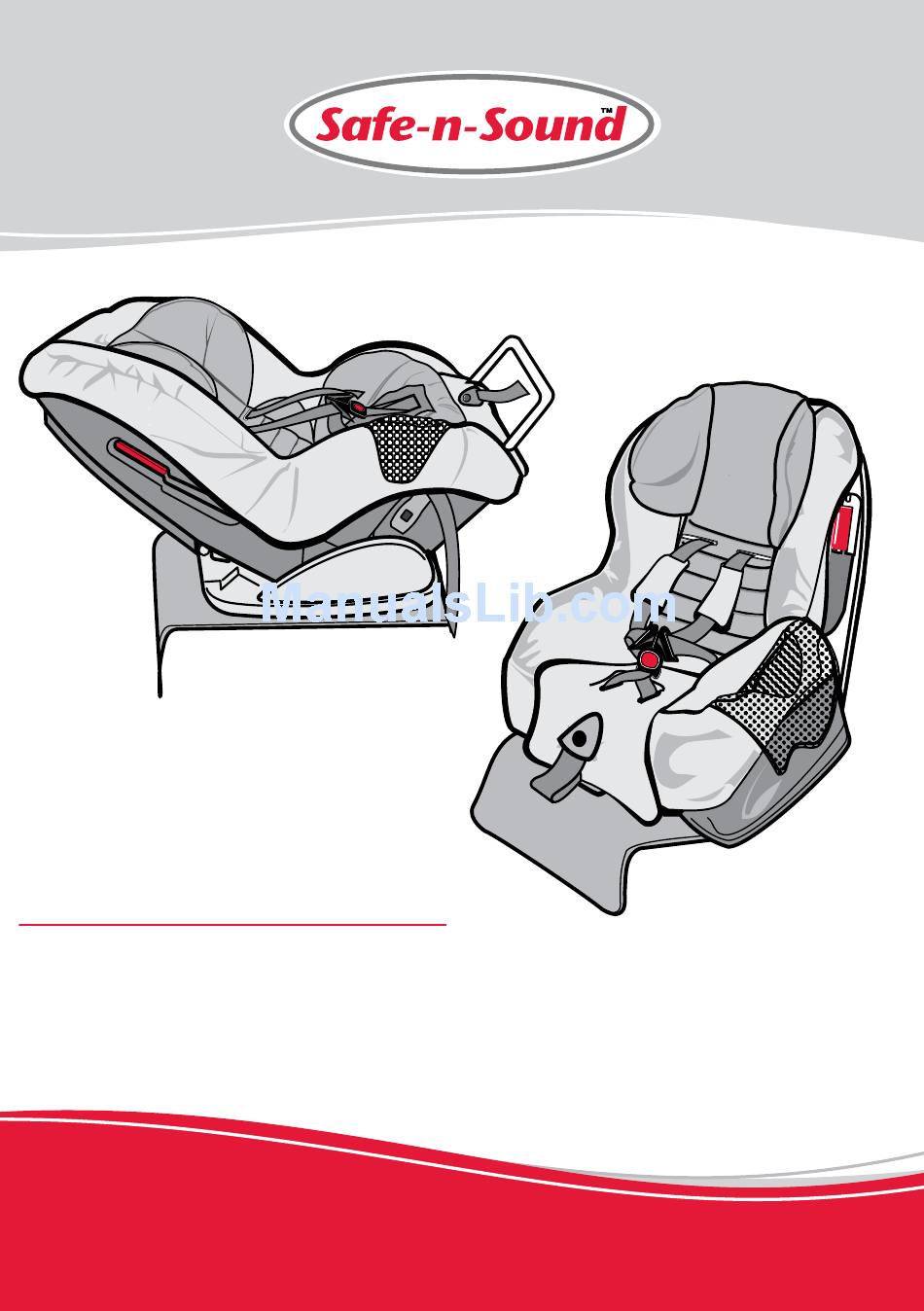

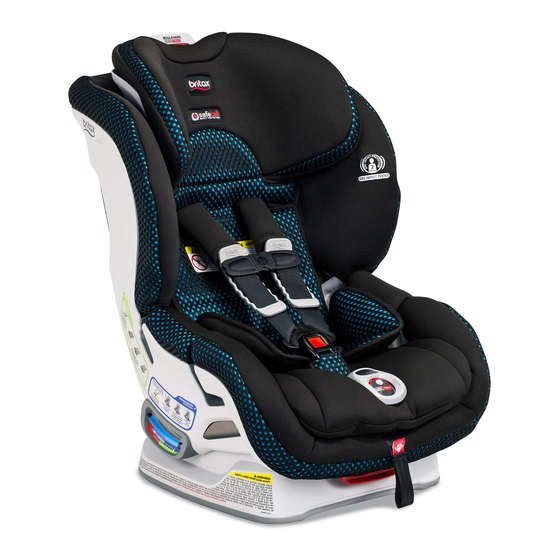

Instructions for Installation & Use
INFORMATION FOR BUYERS;
FOR USE WITH CHILDREN FROM BIRTH TO 18KG.
CHECK THAT THIS CHILD RESTRAINT WILL FIT IN YOUR CAR.
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT.
Convertible Child Restraint with AHR Headrest.
SERIES NO. 7200/A/2004
Rearward Facing
For use with children
up to 12kg.
TM
Forward Facing.
For use with children from
8kg up to 18kg.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONVERTIBLE CHILD RESTRAINT WITH AHR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Britax CONVERTIBLE CHILD RESTRAINT WITH AHR

Summary of Contents for Britax CONVERTIBLE CHILD RESTRAINT WITH AHR

  • Page 1 Convertible Child Restraint with AHR Headrest. SERIES NO. 7200/A/2004 Rearward Facing For use with children up to 12kg. Forward Facing. For use with children from Instructions for Installation & Use 8kg up to 18kg. INFORMATION FOR BUYERS; FOR USE WITH CHILDREN FROM BIRTH TO 18KG.

  • Page 2: Table Of Contents

    PO Box 147 Sunshine Victoria 3020 Customer Serivce: 1300 303 330 The Safe-n-Sound, AHR and Cushion Technology trademarks are the property of Britax Childcare Pty. Limited. (Australia). The Britax trade mark is the property of Britax Excelsior Limited (UK). Visit the Britax Web Site at www.britax.com.au or email custserv@britax.com.au We reserve the right to alter this product without notice.

  • Page 3: Introduction

    CAREFULLY READ ALL THE INSTRUCTIONS FOR INSTALLATION. IN THE EVENT OF DOUBT ABOUT THE METHOD OF INSTALLATION, CONSULT BRITAX CHILDCARE OR AGENT OR A CHILD RESTRAINT FITTING STATION AUTHORIZED BY A RELEVANT TRANSPORT AUTHORITY OR, IN NEW ZEALAND, THE AGENT FOR THE VEHICLE.

  • Page 4: Pre-Installation

    PRE-INSTALLATION Consult the vehicle owner's handbook for location of anchorage fittings or anchorage points and the possible use of spacers. Some vehicles may have an anchor fitting fitted by the vehicle manufacturer. If anchorage points cannot be found refer to car manufacturer or local child restraint fitting station or traffic authority for optimum position of anchorage point and the use of spacers.
  • Page 5 PRE-INSTALLATION ANCHOR FITTING: If the car is fitted with child restraint anchorage point... Anchor bolt Locate the anchorage point behind the rear seating position to be used. Consult the car Lock washer owners handbook for the location of the anchorage points. The anchorage point should be directly behind and central to the restraint.

  • Page 6: For Baby Use

    FOR BABY USE (BIRTH TO 12kg) SPECIAL FEATURES To be used only in a rearward-facing position for a child weighing up to 12kg. Front of Vehicle 1. Padded cover for baby’s comfort (may vary in style) 11. Harness Adjustment Strap 2.

  • Page 7: Suitable For Use

    FOR BABY USE (BIRTH TO 12kg) SUITABLE FOR USE TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT To be used only in a rearward-facing position for a child IN THE FRONT OR BACK OF MOST CARS WITH FORWARD- weighing up to 12 kg.

  • Page 8: How To Setup & Use Headrest

    FOR BABY USE (BIRTH TO 12kg) HOW TO SETUP ADJUSTING HARNESS STRAP HEIGHT & HEADREST: FOR BABY USE REARWARD-FACING Correct fitment of the harness is very important as it restrains the baby in the restraint. The headrest must be in the correct position &...
  • Page 9 FOR BABY USE (BIRTH TO 12kg) HOW TO SETUP INSTALLING INTO VEHICLE (REARWARD FACING) A. The restraint is normally packaged in the fully upright child use mode so if you need to use it for baby use you must first fully recline the restraint, to convert the restraint to baby use mode as shown below.

  • Page 10: How To Install

    FOR BABY USE (BIRTH TO 12kg) HOW TO INSTALL Push bar Pull out forward. A. Unhook hook & loop attachments & gently lift the cover, fully Stabilising extend out stabilising bar and gently push bar forward until a Click Bar. click is heard.
  • Page 11 FOR BABY USE (BIRTH TO 12kg) HOW TO INSTALL F. Align restraint centrally to the chosen seating position as shown below. Pull sash portion of seat belt until all slack is removed from Lap portion of seat belt. Adjust seat belt to hold the restraint firmly against the vehicle seat back.
  • Page 12 FOR BABY USE (BIRTH TO 12kg) HOW TO INSTALL Important: If using an Extension Strap, positioning the Attachment Clip above the baby may lead to injury in an accident therefore make sure that the Attachment Clip is not positioned in front of the vehicle seat. Attachment Clip should be Attachment Clip should not be in behind the front of the vehicle...

  • Page 13: How To Use

    FOR BABY USE (BIRTH TO 12kg) HOW TO USE PLACING BABY INTO RESTRAINT A. Ensure the headrest and shoulder straps are adjusted to the correct height for your child (see page 8). B. Slacken the Upper Anchorage Strap and allow the straps to fall to the sides of the restraint for easy access to the baby.
  • Page 14 Make sure that nothing is obstructing harness straps and that baby’s arms and legs are free. Do not use restraint if straps do not tighten and contact Safe-n-Sound or Britax Childcare Customer Service. H. Tighten Adjustable Upper Anchorage Strap by pulling Adjustment Strap to remove slack as shown.

  • Page 15: For Child Use

    FOR CHILD USE (8 to 18kg) SPECIAL FEATURES FOR CHILD USE To be used only in a forward-facing position for a child weighing from 8 kg to 18 kg. Front of Vehicle 1. Upper Anchorage Strap Adjuster 12. Messy Mat (if fitted) 2.

  • Page 16: Suitable For Use

    FOR CHILD USE (8 to 18kg) SUITABLE FOR USE TO BE USED WITH A LAP-SASH OR LAP ONLY To be used only in a forward facing SEAT BELT IN THE FRONT OR BACK OF MOST position for a child weighing from CARS WITH FORWARD-FACING SEATS.

  • Page 17: How To Set Up & Use Headrest

    FOR CHILD USE (8 to 18kg) HOW TO SETUP ADJUSTING HARNESS STRAP HEIGHT & HEADREST: FOR CHILD USE FORWARD-FACING Correct fitment of the harness is very important as it restrains the child in the restraint. The harness must fit firmly around the upper torso of the child and be positioned so as to leave the child's arms and legs free.

  • Page 18: How To Install

    FOR CHILD USE (8 to 18kg) HOW TO INSTALL INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED) WARNING: DO NOT USE RESTRAINT IN FORWARD- FACING POSITION WITH THE STABILISING BAR PULLED OUT. Do not recline into baby position when using restraint in forward facing child use mode. IMPORTANT: Ensure harness and headrest are in the correct position.
  • Page 19 FOR CHILD USE (8 to 18kg) HOW TO INSTALL INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED) E. Determine whether an upright or reclined position is preferred and adjust if necessary (see below). F. Place one hand on the front corner of base firmly, while with the other hand push the blue recline latch up to unlock and push back until the restraint is at the desired position.
  • Page 20 FOR CHILD USE (8 to 18kg) HOW TO INSTALL INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED) J. Fit the attachment clip to the anchor fitting as shown. Make sure to remove as many twists as possible from the upper anchorage strap. Attachment Clip &...

  • Page 21: How To Use

    FOR CHILD USE (8 to 18kg) HOW TO USE PLACING CHILD IN THE RESTRAINT A. Lengthen harness by pushing and holding the Harness Adjustment button while pulling on either shoulder strap until the harness will accommodate the child. Pull to lengthen Push Harness Adjustment B.

  • Page 22: Care And Maintenance

    CARE & MAINTENANCE The restraint has a flame retardant cover which is removable for cleaning. Cleaning instructions are on the care label attached to the cover. If fluffy cover is fitted then washing cover prior to use will remove excess fluff. Ensure that the inside of the buckle is free of foreign matter.
  • Page 23 If the Harness Buckle cannot be returned to its original working condition then contact Safe-n-Sound or Britax Childcare Customer Service. E. Refit the harness buckle to the restraint with the red button facing out & feeding each 3-bar slide through appropriate...

  • Page 24: Accessories

    ACCESSORIES WARNING ONLY USE SAFE-N-SOUND SEAT COVERS AND ACCESSORIES THAT ARE DESIGNED AND TESTED FOR USE WITH THIS PRODUCT. The following instructions apply to accessories that may be supplied with this restraint at point of purchase. If not, a variety of accessories are available from various retailers of Safe-n-Sound products.
  • Page 25 ACCESSORIES SHOULDER PADS Shoulder Pads are designed to provide extra comfort for baby or child and are easily fitted to the shoulder harness straps by: A. Pull apart fasteners and remove shoulder pads from harness. B. Re-fit shoulder pads to harness and attach fasteners for use. BABY INSERT (IF FITTED) Only use the insert when in Rearward Facing mode for babies.

  • Page 26: In Case Of Accident

    This notice is to advise you of the requirements of the Australian/New Zealand Standards and our obligation in complying with the standards. Please assist the owner of this restraint in their claim. Britax Childcare Pty. Ltd. (Incorporated in Victoria) A.B.N 55 006 773 600...

  • Page 27: Notes

    NOTES...

  • Page 28: Customer Serivce: 0800 688 822

    Head office and registered address: 99 Derby Road Sunshine Victoria 3020 PO Box 147 Sunshine Victoria 3020 Customer Serivce: 1300 303 330 New Zealand Office Britax Childcare NZ Limited. PO Box 100-247 Auckland 9 Customer Serivce: 0800 688 822 P/No.2200062...
