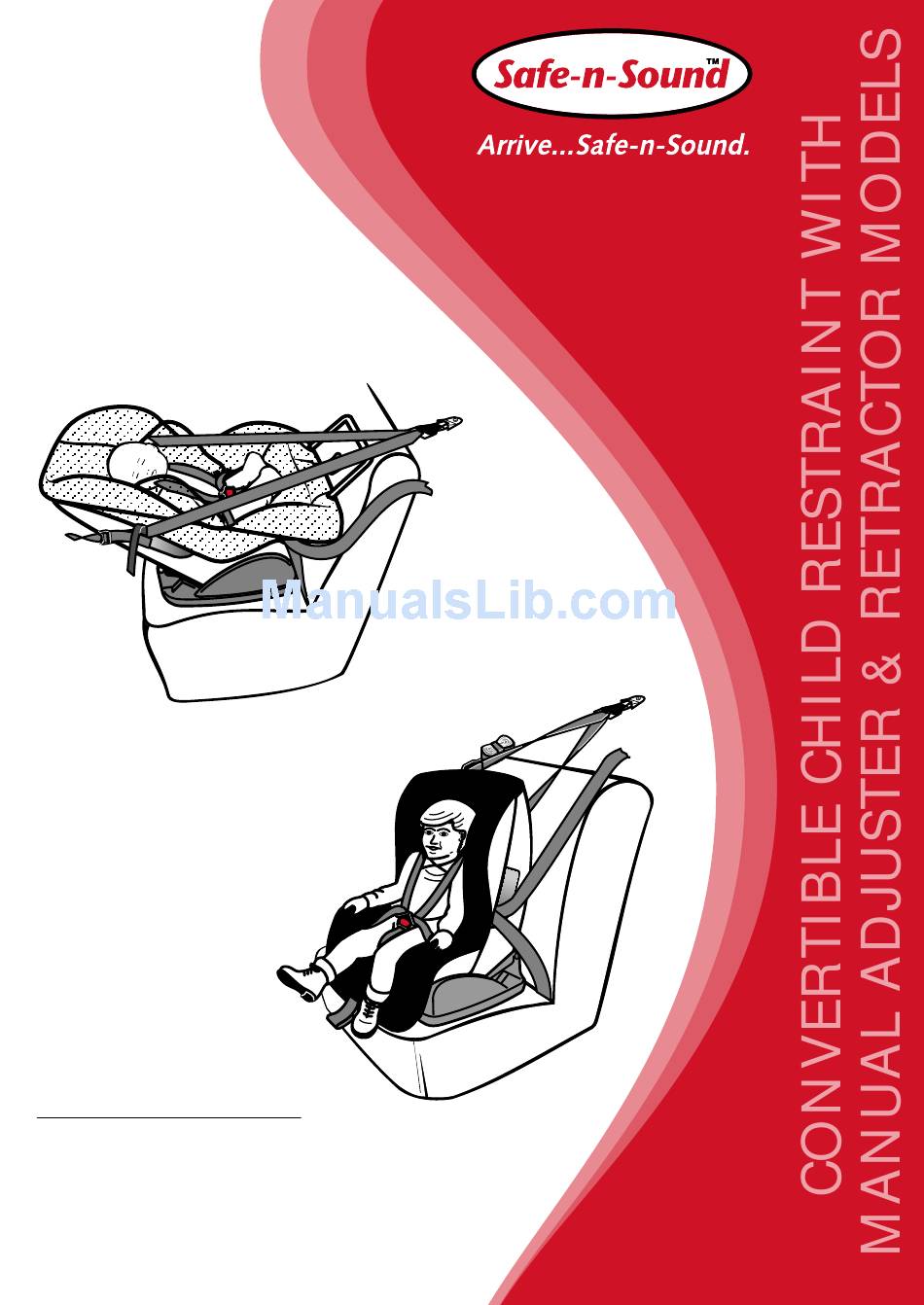

Series number:
7000/G/2004,
7000/H/2004,
7000/I/2004 &
7000/J/2004.
Convertible
Child restraint
for vehicle use.
Rearward Facing
For use with
children up to
12kg.
Forward Facing.
For use with children
from
8kg up to 18kg.
INFORMATION FOR BUYERS:
FOR USE WITH CHILDREN FROM BIRTH TO 18 KG.
CHECK THAT THIS CHILD RESTRAINT WILL FIT IN
YOUR CAR.
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE
PROVIDED ON THE CHILD RESTRAINT.
Instructions for
ILLUSTRATIONS FOR REFERENCE ONLY.
Installation & Use
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Britax CONVERTIBLE CHILD RESTRAINT
Summary of Contents for Britax CONVERTIBLE CHILD RESTRAINT
- Page 1 Series number: 7000/G/2004, 7000/H/2004, 7000/I/2004 & 7000/J/2004. Convertible Child restraint for vehicle use. Rearward Facing For use with children up to 12kg. Forward Facing. For use with children from 8kg up to 18kg. INFORMATION FOR BUYERS: FOR USE WITH CHILDREN FROM BIRTH TO 18 KG. CHECK THAT THIS CHILD RESTRAINT WILL FIT IN YOUR CAR.
-
Page 2: Table Of Contents
Refer to Catalogue. WHO TO CONTACT AUSTRALIA NEW ZEALAND Britax Childcare Pty. Ltd. A Britax International company. Britax Childcare NZ Limited. A Britax International company. (Incorporated in Victoria) A.C.N. 006 773 600 A.B.N 55 006 773 600. PO Box 100-247 Auckland 9 Phone: (09) 443 0102... -
Page 3: Warnings
FOLLOW THESE INSTRUCTIONS EXACTLY. In the event of doubt about the method of installation, consult Britax Childcare or agent or a child restraint fitting station authorised by the relevant transport authority or in New Zealand, the agent for the vehicle. Use only Safe-n-Sound recommended parts and accessories, which are available from most Safe-n-Sound retailers (refer to page 24 for accessories). -
Page 4: How To Install
HOW TO INSTALL Consult the vehicle owner's handbook for location of anchor fittings or anchorage points and the possible use of spacers. Some vehicles may have an anchor fitting fitted by the vehicle manufacturer. If anchorage points cannot be found refer to car manufacturer or local child restraint fitting station or traffic authority for optimum position of anchorage point and the use of spacers. - Page 5 HOW TO INSTALL ANCHOR FITTING: WARNING: CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL OR TO WOOD, OR SYNTHETIC STRUCTURES. WHEN DRILLING 9 MM HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL WIRING, OR RADIO SPEAKERS. WEBBING STRAPS MUST BE PROTECTED FROM SHARP CORNERS AND EDGES.
- Page 6 HOW TO INSTALL Important: If using an Extension Strap, positioning the Attachment Clip above the baby may lead to injury in an accident Attachment Clip must Attachment Clip must therefore make sure that the Attachment not be in front of the be behind the front of Clip is not positioned in front of the vehicle the vehicle seat.
- Page 7 SPECIAL FEATURES FOR BABY USE To be used only in a rearward facing position for a child weighing up to 12 kg. Front of vehicle RETRACTOR HARNESS MODELS Harness Adjustment Button Padded cover for baby’s comfort. Padded insert for extra comfort. (If supplied) Adjustable Upper Anchorage Strap.
-
Page 8: Suitable For Use
SUITABLE FOR USE BABY TO BE USED WITH A LAP-SASH OR LAP ONLY SEAT BELT IN THE FRONT OR BACK OF MOST CARS WITH FORWARD-FACING SEATS. To be used only in a rearward-facing position for a child weighing up to 12kg. -
Page 9: How To Set-Up
HOW TO SET-UP SETTING UP THE HARNESS Sit the restraint on a flat ground and supported from behind so that it will not tip over. Get the child to sit comfortably in position. Determine the desired shoulder strap position. Remove the child and adjust the shoulder straps using the following methods. Repeat steps A-C to confirm the correct set-up of the built-in harness. - Page 10 HOW TO SETUP BABY STEPS IN CHANGING SHOULDER STRAP SLOTS Strap Connector Remove the restraint from vehicle as instructed on page 6. At the rear of the restraint, remove one of the harness shoulder straps from metal Strap Connector by slipping strap through open slot.
-
Page 11: How To Install
HOW TO INSTALL FOOT RECLINE MODEL BASE RECLINE MODEL For baby use, you must first Move Recline Foot by grasping Foot, pressing the Recline Foot Locking Bar fully recline the restraint, to while rotating to the baby position convert the restraint to baby use (refer to label on the side of the mode as shown below. - Page 12 HOW TO INSTALL BABY Front of vehicle Ensure all slack is removed from Upper Anchorage Strap. Pull sash portion of seat A single twist belt to remove slack from is required for lap portion of belt. easy access to the Upper Anchorage Ensure seat is in Feed seat belt between...
- Page 13 HOW TO USE PLACING BABY INTO RESTRAINT CROTCH STRAP POSITION - BABY USE The harness shoulder straps Slackened Upper Lift up Anchorage Strap. should first be set to the correct Padded Insert, Adjuster. if supplied, snugly height position. Refer to Harness (under flap) supports the baby...
-
Page 14: Removing Baby From Restraint
HOW TO USE BABY Pull lap and crotch straps firmly. Pull shoulder harness Pull to remove slack from Harness Lap Straps straps to remove slack from harness lap straps. Pull harness adjustment strap to take up the slack in the Shoulder harness adjusting to a comfortable but firm fit. - Page 15 SPECIAL FEATURES FOR CHILD USE To be used only in a forward-facing position for a child weighing from 8 kg to 18 kg. RETRACTOR HARNESS MODELS Harness Tongues Harness Harness Adjustment Buckle Button Front of vehicle Upper Anchorage Strap Adjuster. Upper Anchorage Strap.
-
Page 16: Suitable For Use
SUITABLE FOR USE To be used only in a forward facing TO BE USED WITH A LAP-SASH OR LAP ONLY position for a child weighing from SEAT BELT IN THE FRONT OR BACK OF MOST 8 kg to 18 kg. CARS WITH FORWARD-FACING SEATS. - Page 17 HOW TO SETUP ADJUSTING SHOULDER HARNESS STRAPS HEIGHT FOR CHILD USE FORWARD-FACING Correct fitment of the harness is very important as it restrains the child in the restraint. The harness must fit firmly around the upper torso of the child and be positioned so as to leave the child's arms and legs The shoulder straps must be in the slots which free.
-
Page 18: How To Install
HOW TO INSTALL INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED) DO NOT USE RESTRAINT IN FORWARD-FACING MODE WITH THE STABILISING BAR PULLED OUT. If the Stabilising Bar is extended Press blue button on left side (facing seat) unhook Hook and Loop attachments and gently push stabilising bar all the way and push trim away from restraint. - Page 19 HOW TO INSTALL BASE RECLINE MODEL FOOT RECLINE MODEL Place one hand on the front of base Move Recline Foot by grasping firmly, while with the other hand push the Foot, pressing the Locking the blue recline latch up to unlock and Bar while rotating to the required push back until the restraint is at the child position until the Locking...
- Page 20 HOW TO INSTALL Engage seat belt buckle and tongue, ensure to remove all slack from lap part of seat belt by pulling sash belt. Adjust the seat belt to hold the restraint firmly against the vehicle seat. For inertia/retractable seat belts, allow excess belt to feed back into retractor. Fit the attachment clip to the anchor fitting as shown right.
- Page 21 HOW TO USE PLACING CHILD IN THE RESTRAINT Place child in the restraint and feed To lengthen harness, lift up the Harness Adjuster Lock while pulling on both shoulder straps until the each arm through shoulder straps. Pull harness will accommodate the child. harness buckle up between child’s legs.
- Page 22 HOW TO CLEAN The restraint has a flame retardant cover which is removable for cleaning. Cleaning instructions are on the care label attached to the cover. If fluffy cover is fitted then washing cover prior to use will remove excess fluff. Ensure that the inside of the buckle is free of foreign matter.
- Page 23 If you still cannot hear a strong audible click after engaging the Harness Tongues & Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact Britax Childcare. Refit the Harness Buckle to the restraint with the red button facing out & feeding each 3-bar slide through appropriate slot.
- Page 24 ACCESSORIES & FEATURES The following instructions apply to accessories that may be supplied with this restraint at point of purchase. If not, a variety of accessories are available from various retailers of safe-n-sound products. In the case of a small baby, accessories are available to improve the installed position of the baby in the restraint.
- Page 25 ACCESSORIES & FEATURES HOOD Hooks The hood has been designed to protect your child from direct sunlight when fitted in the forward-facing position. Attach the elastic straps at the back of the hood to the hooks at the rear of the restraint. Attach together the press stud on the ends of the hood &...
- Page 26 TRAVELLING TIPS SAFETY CLOTHING/BATHING Never hold a baby or a child in arms when Take several changes of clothing and bibs riding in a motor vehicle. In this position for possible car sickness. the baby or child could be thrown against the Disposable nappies and liners are very dashboard, windscreen or other occupant handy while travelling.
-
Page 27: In Case Of Accident
This notice is to advise you of the requirements of the Australian/New Zealand Standards and our obligation in complying with the standards. Please assist the owner of this restraint in their claim. Britax Childcare Pty. Ltd. (Incorporated in Victoria) A.B.N 55 006 773 600... - Page 28 We reserve the right to alter this product without notice in our constant endeavour for improvement. 1997-2007 Britax Childcare Pty. Ltd. This product is covered by Australian and overseas patent applications. Patents Pending. Visit the Britax Web Site at http://www.britax.com.au or Email us at: custserv@britax.com.au...
