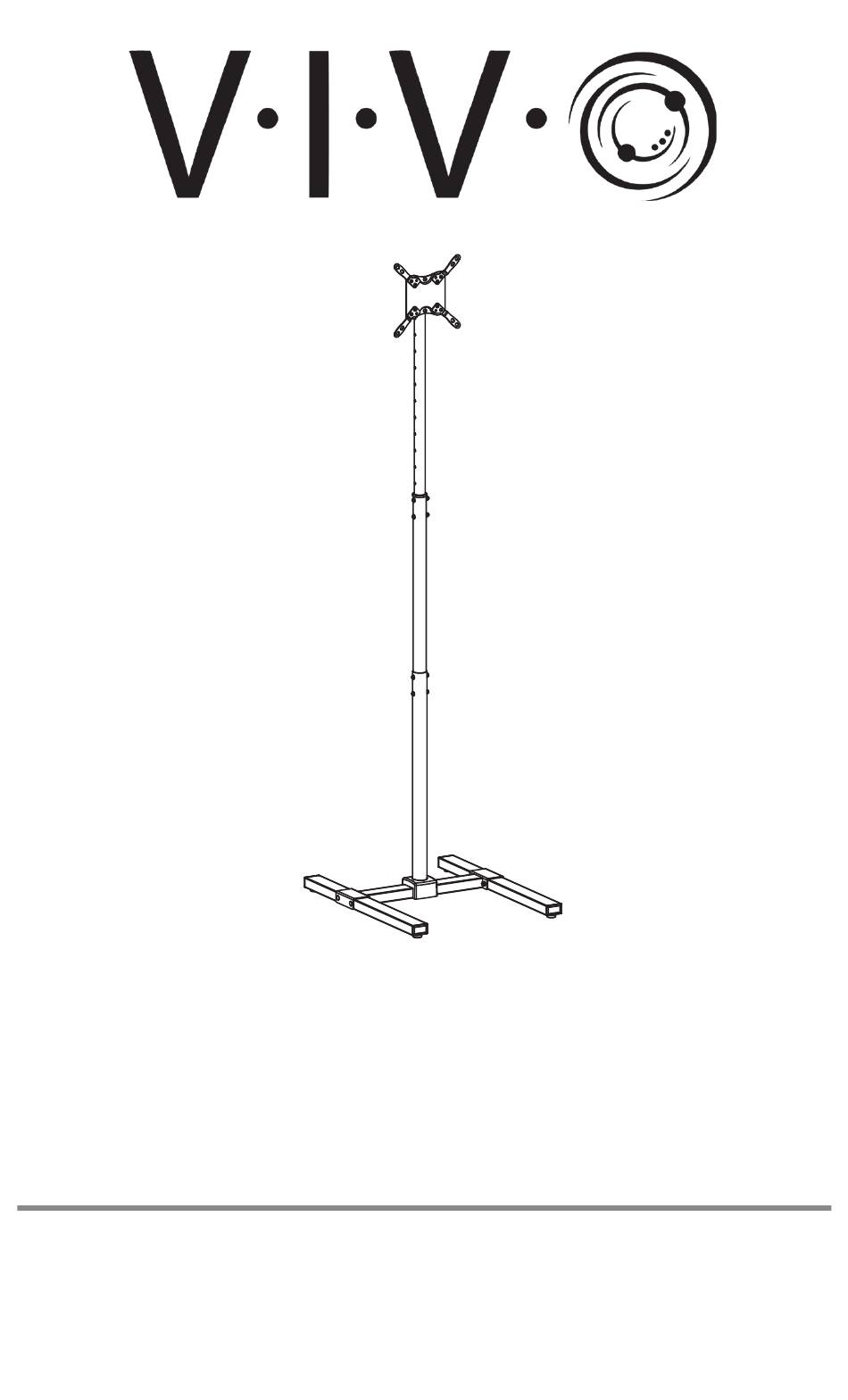

  • Page 1 TV Stand for Treadmills & Ellipticals STAND-TV17 Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3 Package Contents A (x1) B (x2) C (x1) D (x1) Base Feet Upper Pole Lower Pole E (x1) F (x2) G (x2) H (x4) I (x1) VESA Plate VESA Adapter VESA Adapter Foot Pad Plastic Cover Included Hardware & Tools S-A (x8) S-B (x8) S-C (x2)

  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Thread the Foot Pads (H) into the Feet (B). STEP 2 Place the Base (A) onto the Feet (B) and align the side holes. Attach using M6x65mm Carriage Bolts (S-D) with M6 Washers (S-E) and M6 Lock Nuts (S-F). Tighten using Wrench (T-B).
  • Page 5 STEP 3 Use the 4mm Allen Wrench (T-A) and Wrench (T-B) to remove the pre-installed Screws (C3), Nuts (C4) and Washers (C5) from the Upper Pole (C). Remove the Inner Pole (C2).
  • Page 6 STEP 3 - Cont’d 3.1 Side the Plastic Cover (I) down the Lower Pole (D). 3.2 Attach the Upper Pole (C) to the Lower Pole (D) using M6x50mm Screws (S-C) with M6 Washers (S-E) on both sides and M6 Lock Nuts (S-F). Tighten using 4mm Allen Wrench (T-A) and Wrench (T-B).
  • Page 7 STEP 4 Lift up the Pole Cover (I) and attach the Pole Assembly to the Base (A) using M6x12mm Screws (S-H) and 4mm Allen Wrench (T-A). Secure using the remaining M6x65mm Carriage Bolt (S-D), M6 Washer (S-E), M6 Lock Nut (S-F) and Wrench (T-B). Ensure the Tilt Bracket is facing the front.
  • Page 8 STEP 5 4 VESA Assembly Options Determine your TV’s VESA pattern and follow the appropriate instructions. VESA Plate Only VESA Plate + VESA Adapters 1. 75x75mm [See below] 3. 200x200mm [Page 9] 2. 100x100mm [See below] 4. 200x100mm [Page 10] VESA Plate Only 75x75mm or 100x100mm VESA Pattern Attach the VESA Plate (E) to the back of TV using the appropriate Screws (M-A or M-B) with...
  • Page 9 VESA Plate + VESA Adapters 200x200mm VESA Pattern 200mm 200mm Attaching VESA Adapters: Attach the VESA Adapters (F,G) to the VESA Plate (E) as shown using M5x10mm Screws (S-A) and M5 Nuts (S-B). Tighten using a Phillips screwdriver and Wrench (T-B). Proceed to Securing to TV on Page 11...
  • Page 10 VESA Plate + VESA Adapters 200x100mm VESA Pattern 200mm 100mm Attaching VESA Adapters: Attach the VESA Adapters (F,G) to the VESA Plate (E) as shown using M5x10mm Screws (S-A) and M5 Nuts (S-B). Tighten using a Phillips screwdriver and Wrench (T-B). Proceed to Securing to TV on Page 11...
  • Page 11 Securing to TV Attach VESA Plate Assembly to the back of TV using the appropriate Screws (M-A thru M-D) with Washers (M-E or M-F). Spacers (M-G) can be used if needed. Tighten using a Phillips screwdriver. Too Long Too Short Ensure the nut is on the top.
  • Page 12 STEP 6 Use Wrench (T-B) to slightly loosen the pre-installed nut on VESA Plate (E). Hook the VESA Assembly onto the Tilt Bracket and re-tighten the nut. Secure by tightening M6 Flange Nut (S-G) onto the bottom.

  • Page 13: Height Adjustment

    Height Adjustment Use the 4mm Allen Wrench (T-A) and Wrench (T-B) to remove the Screws (C3), Nuts (C4) and Washers (C5) from the Upper Pole (C). Slide the Inner Pole (C2) to the desired position and re-install the Screws, Nuts and Washers in the nearest pair of holes.
  • Page 14 Forward & Back Tilt Adjustment Loosen the Knob on the side of the Tilt Joint. Adjust as desired and re-tighten. Knob Side-to-Side Tilt Adjustment Loosen the M6 Flange Nut (S-G) on the bottom of VESA Plate (E) using Wrench (T-B). Adjust as desired and re-tighten.
