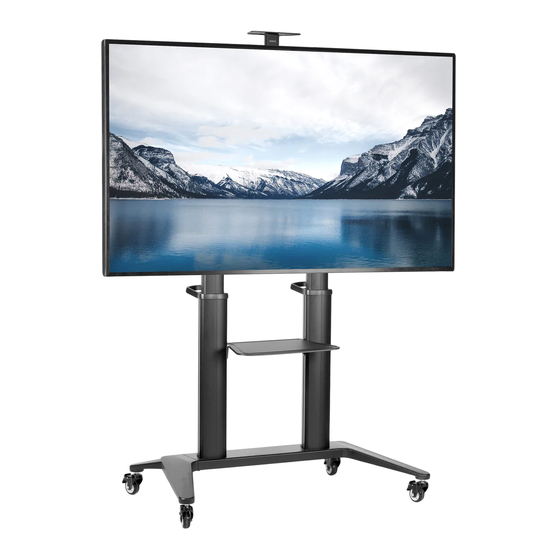

Aluminum Mobile Large Screen TV Cart
Instruction Manual
SKU: STAND-TV120B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv120b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-TV120B
Summary of Contents for Vivo STAND-TV120B
- Page 1 Aluminum Mobile Large Screen TV Cart Instruction Manual SKU: STAND-TV120B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv120b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Tools Needed
DO NOT EXCEED WEIGHT CAPACITY. TOOLS NEEDED Failure to do so may result in serious injury. 308lbs 11lbs 11lbs (140kg) (5kg) Phillips (5kg) Screwdriver CAMERA SHELF MEDIA SHELF ASSEMBLY STEPS STEP 1 Attach legs (A, B) to the cross bracket (C) using the allen wrench (P-J) and screws (P-C) as shown in the figure below. - Page 4 STEP 2 Attach the lower columns (E) to the assembled base using the allen wrench (P-J) and bolts (P-B) and washers (P-A). Attach the upper columns (F) to the lower columns using the allen wrench (P-J) and bolts (P-C). Then slide the handles (G) over the upper columns as shown below...
- Page 5 STEP 3 Loosen the 8 bolts shown below on the mounting plate (H) using the allen wrench (P-I). Then slide the mounting plate down onto the two upper columns and retighten the 8 bolts.
- Page 6 STEP 4 Press on the top covers (O) and the end caps (N) onto the upper columns and mounting plate as shown below. STEP 5 Loosen the two bolts on both of the upright brackets of the media shelf (I) using the allen wrench (P-I).
- Page 7 STEP 6 Determine the correct length screw and spacer combination for your tv and attach the left and right TV brackets (J, K) to the TV.
- Page 8 STEP 7 Hang the TV and TV brackets over the mounting plate and secure it by tightening the security bolt on the bottom of the TV brackets using a phillips screwdriver.
- Page 9 STEP 8 Attach the camera shelf (L) to the camera shelf support (M) using a phillips screwdriver and screws (P-D). Then mount the shelf support (M) to the desired height attaching it to the Mounting plate (H). Attach it using the allen wrench (P-I), bolts (P-E) and washers (P-F) making sure the washers go between the camera shelf support (M) and the mounting plate (H) as shown below.
- Page 10 STEP 9 Route cables through the provided slots in the columns and attach the cable covers (O) to hold them in place. Store the allen wrenches in the holes provided in the handle (G).
- Page 11 STEP 10 NOTE: Height marking represents the distance from the floor to the center of the brackets (this includes the casters).
- Page 12 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
