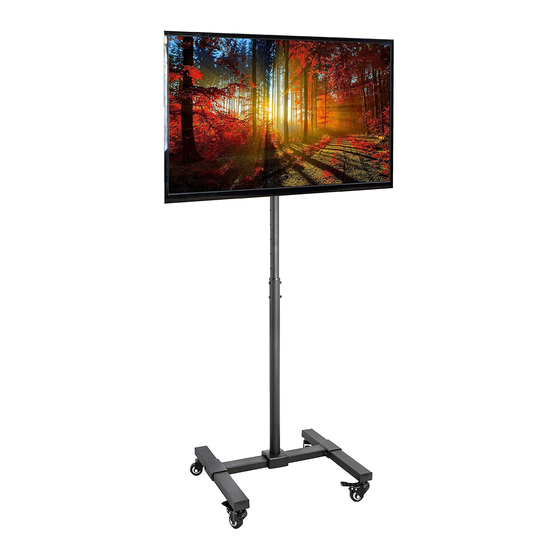

Black mobile tv cart

Advertisement

Quick Links

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV07W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv07w
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
