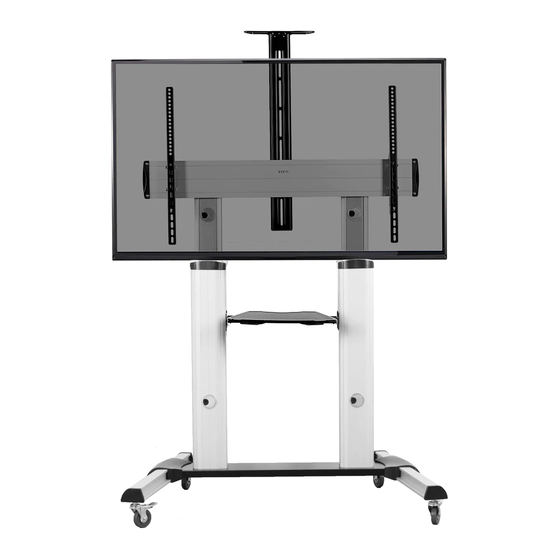

Vivo STAND-TV22S Instruction Manual
Silver mobile tv cart
Hide thumbs
Also See for STAND-TV22S:
- Instruction manual (12 pages) ,
- Instruction manual (7 pages) ,
- Instruction manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV22S
Summary of Contents for Vivo STAND-TV22S

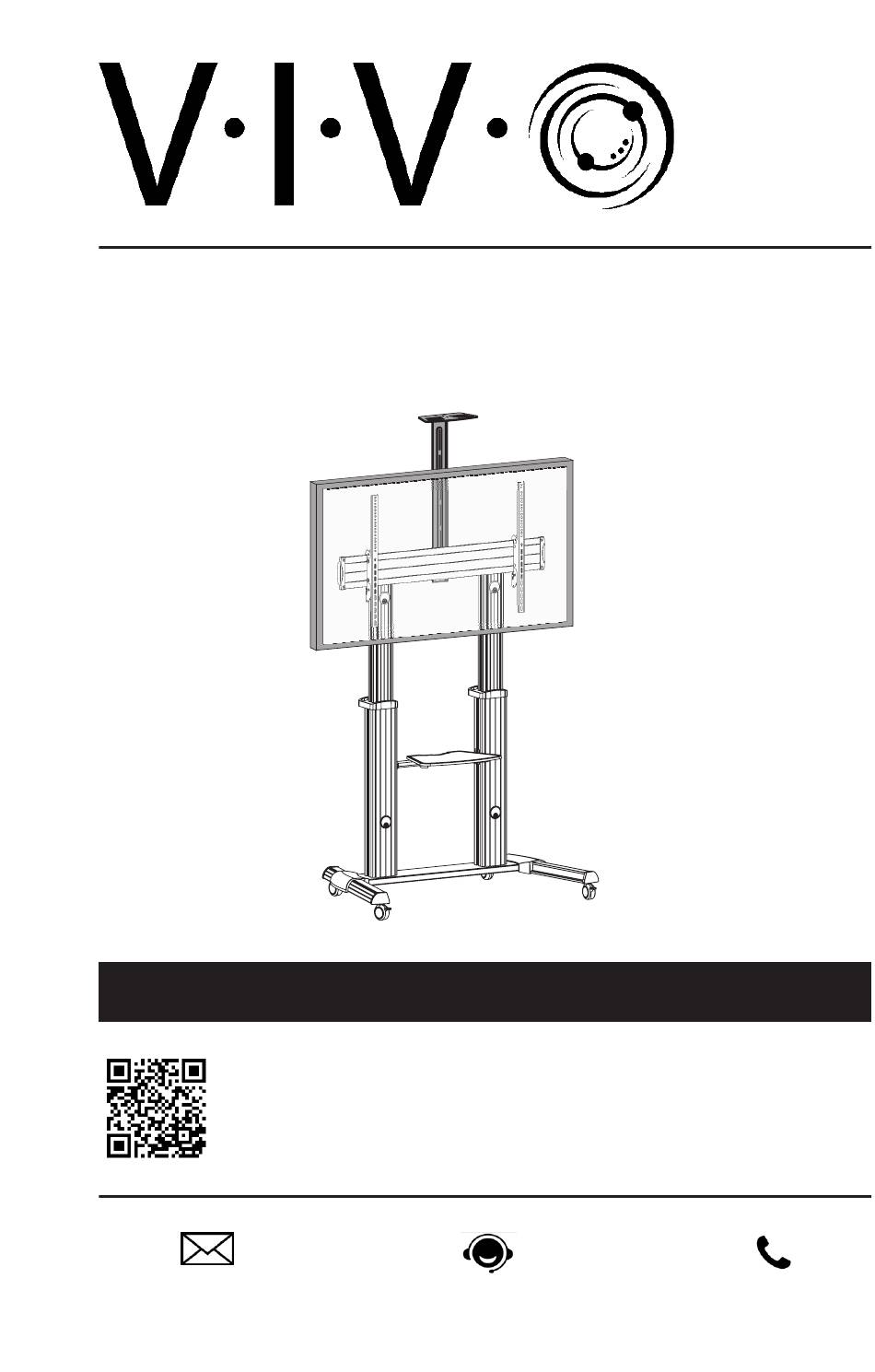

- Page 1 Silver Mobile TV Cart Instruction Manual SKU: STAND-TV22S Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv22s help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury. 220lbs 11lbs 11lbs Phillips (99.79kg) (5kg) (5kg) Screwdriver CAMERA ASSEMBLY STEPS STEP 1 Insert the base (A) into the left leg (B). Align the mounting holes and secure with M6x16 bolts (S). Repeat this step for the right leg (C). - Page 4 STEP 2 (Continued) Place the columns (H, I) into the cutouts in the base. Slide the plastic handles (G) over the inner columns and press firmly in place. NOTE: Lock the casters in place to prevent movement during assembly. Secure columns using M8x25 bolts (X) and tighten with Allen wrench (B1). STEP 3 Attach the support plates on the universal plate (F) to the columns...
- Page 5 STEP 3 (Continued) Attach the DVD shelf (M) to the support bar (P) with M6x14 bolts (W), M6x25 carriage bolts (Y) and knobs (Q). Adjust the shelf to the desired height before installing the display to the stand. supporting bloc k STEP 4 OPTION A: Flat Back Screen Install adapter brackets (J, K) to back...
- Page 6 STEP 5 Hang the adapter brackets (J, K) with display onto the universal plate (F). Turn the bolts on the underside of the brackets counter-clockwise to lock. Rotate the bolts clockwise to unlock. A padlock (not included) can be used to prevent the display from being stolen. IMPORTANT: Make sure the display is correctly mounted before releasing the display.
- Page 7 STEP 7 Attach the camera shelf (O) to the connecting plate (N) using M4x6 flat head bolts (T) on top and M4x6 dome head bolts (U) in back. STEP 8 Remove the bolts from the center of the universal plate (F).
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
