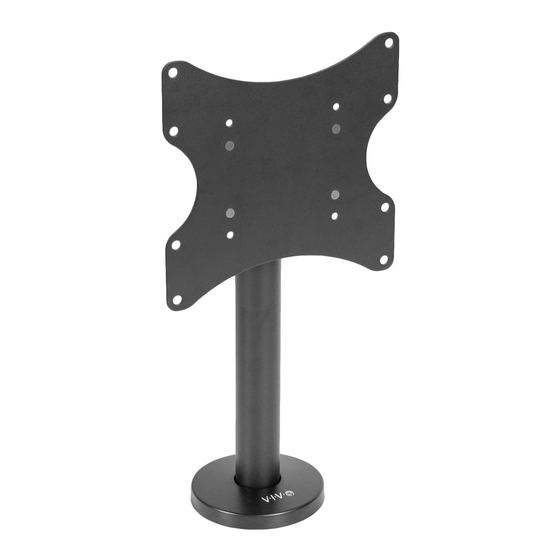

Bolt-Down TV Mount
Instruction Manual
SKU: STAND-TV00M2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv00m2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV00M2
Summary of Contents for Vivo STAND-TV00M2
- Page 1 Bolt-Down TV Mount Instruction Manual SKU: STAND-TV00M2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv00m2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Please note that the cable holes are positioned on the back side of the pole (A). Slide the base cover up to reveal mounting holes on the base. STEP 2 Position the pole on the desktop and drill small pilot holes. Secure M6x25 screws (D) or M6x30 screws (E) and slide the base cover down.
- Page 4 STEP 3 OPTION A: Flat Back Monitor Position the VESA plate (B) on the back of the TV, making sure the long curved side is facing up. Secure using screws (M-A, M-B, M-C or M-D) with washers (M-E or M-F). OPTION B: Curved Back Monitor Position the VESA plate (B) on the back of the TV, making sure the long curved side is facing up.
- Page 5 STEP 4 Screw M6 nuts (C) onto top two screws of the VESA plate, leaving 4mm of thread exposed. STEP 5 Hang TV with VESA plate (B) over slots in mounting head on pole.
- Page 6 STEP 6 Install M6 nuts (C) to lower two screws of the VESA plate, and tighten all nuts with the wrench (F).
- Page 7 STEP 7 Adjust swivel tension using the Allen wrench (G). Manage cables using cable holes in pole.
- Page 8 - 92% within < 3hr : < 15 M www.vivo-us.com AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
