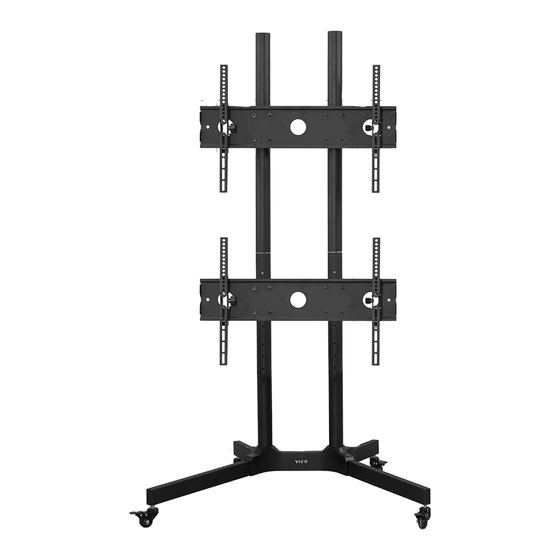

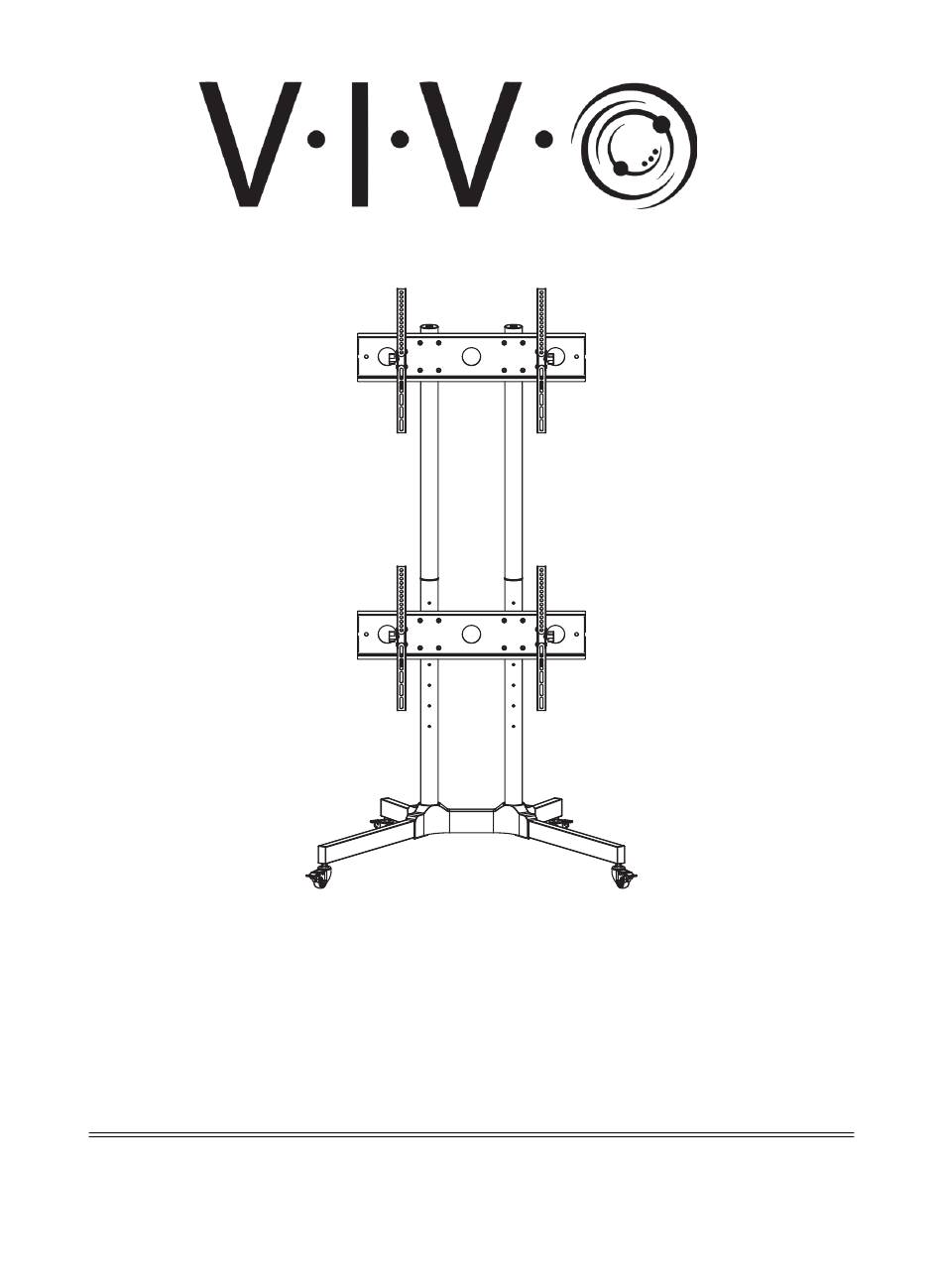

- Page 1 Dual Screen Mobile TV Cart STAND-TV03E2 Assembly Manual...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
-
Page 3: We're Here For You
Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. www.vivo-us.com/products/stand-tv03e2 WATCH NOW... -
Page 4: Please Read
Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. -
Page 5: Package Contents
Package Contents A (x2) B (x2) C (x1) Long Leg Short Leg Base with Cover D (x2) E (x2) F (x2) Grommet Lower Pole Top Pole Cover G (x2) H (x4) I (x4) Pole Connector Pole Cover Caster J (x4) K (x4) L (x2) Universal Plate... -
Page 6: Included Hardware & Tools
Included Hardware & Tools S-A (x8) S-B (x4) S-C (x18) S-D (x2) M-A (x8) M6x60mm M6 Socket M6x10mm M5x6mm Set M4x12mm Screw Plate Screw Screw Screw M-B (x8) M-C (x8) M-D (x8) M-E (x8) M-F (x8) M4x30mm M6x20mm M6x35mm M8x20mm M8x35mm Screw Screw... -
Page 7: Assembly Steps
Assembly Steps STEP 1 Attach Casters (I) to Long Feet (A) and Short Feet (B) using Wrench (T-D). STEP 2 Separate Base with Cover (C) into Base (C1) and Cover (C2). - Page 8 STEP 3 Attach Long and Short Legs (A, B) to Base (C1) using M6x60mm Screws (S-A), Threaded Plates (L), and 5mm Allen Wrench (T-C). Large Screw Hole Short Legs (B) should be on the same side as the Large Screw Holes on on Base (C). (Back) (Front) STEP 4...
- Page 9 STEP 4 - Cont’d Insert Lower Poles (E) into Base (C1) and secure using M6x10mm Screws (S-B) and 4mm Allen Wrench (T-B). Do not fully tighten screws. STEP 5 Slide Cover (C2) over Lower Poles (E) and onto Base (C1). To ensure a correct fit, make sure the side with logo is facing the front.
- Page 10 STEP 6 Thread Upper Poles (F) into Pole Connectors (G). STEP 7 Slide Universal Plate Connectors (J) and Plastic Spacers (K) onto Top Poles (F) and tighten the set screw using 4mm Allen Wrench (T-B). Connect and install Pole Covers (H) onto Top Poles.
- Page 11 STEP 8 Assemble Universal Plates (L) to Universal Plate Connectors (J) with M6x10mm Screws (S-C) and M6 Washers (M-I). Tighten using 4mm Allen Wrench (T-B). Do not fully tighten screws. Mounting Plate Not Aligning? Lift the Cover (C2) and slightly loosen the M6x10mm Screws (S-B) at the base of the Lower Poles (F) with 4mm Allen Wrench (T-B).
- Page 12 STEP 9 Clip Level (T-E) onto Universal Plate (L). Adjust the level of Universal Plate (L) by loosening the Set Screws in the back of Universal Plate Connectors (J) using 4mm Allen Wrench (T-B). Retighten the Set Screws again once you’ve reached desired height and level. Tighten M6x10mm Screws (S-C) on Universal Plate Connectors (J) with 4mm Allen Wrench (T-B).
- Page 13 STEP 10 Lift the Cover (C2) up. Tighten the previously installed M6x10mm Screws (S-B) using 4mm Allen Wrench (T-B). Install the M5x6mm Set Screws (S-D) using the 2.5mm Allen Wrench (T-A).
- Page 14 STEP 11 Secure Right VESA Bracket (M) and Left VESA Bracket (N) to the back of your television using Screws (M-A ~ M-G) and Washers (M-H ~ M-J), depending on the size of the mounting holes on the television. For curved or recessed TVs, Spacers (M-K ~ M-M) may be required. Loosen Security Screw on both VESA Brackets with 5mm Allen Wrench (T-C) for easy mounting.
- Page 15 STEP 12 Place TV with VESA Brackets onto Universal Plate (L). Tighten the Security Screws on the bottom of the installed VESA Brackets (M,N) using 5mm Allen Wrench (T-C) to secure the television to the stand.
- Page 16 STEP 13 Install Grommet Covers (D) into Lower Poles (E). Cables can be inserted into the tops of Pole Covers (H) and be routed out the back using either the Cable Slots in the back of Lower Poles (E) or through the bottom of the Base (C). Cable Slot...
- Page 17 Height Adjustment and Leveling If additional leveling and height adjustment is required after television is attached, follow the steps below. Remove TV with VESA Brackets from Universal Plate (L). Clip Level (T-E) onto Universal Plate. Adjust the level of Universal Plate (L) by loosening the Set Screws in the back of Universal Plate Connectors (J) using 4mm Allen Wrench (T-B).
