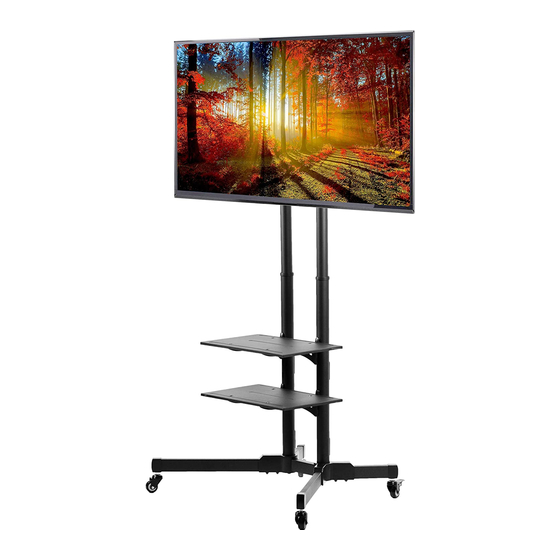

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV01B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv01b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV01B
Summary of Contents for Vivo STAND-TV01B
- Page 1 Black Mobile TV Cart Instruction Manual SKU: STAND-TV01B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv01b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 110lbs Failure to do so may result in serious injury. (49.9kg) WARNING: CHOKING HAZARD Phillips SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT Screwdriver SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Remove plastic covers from Base (C).
- Page 4 STEP 2 Press button on bottom half of Poles (G) to extend the two halves. Slide button into top hole to secure pole length. Insert Cable Grommets (H) into holes as shown in diagram. STEP 3 Insert Poles (G) into Base (C) and secure using M10x35mm Screws (P-C) and M10 Washers (P-D). Tighten using 8mm Allen Wrench (P-I).
- Page 5 STEP 5 Slide Shelf Brackets (L,K) into Shelves (J). STEP 6 Mount shelf assemblies to Poles (G) by hanging the hooks in the slots at the desired heights as shown in below. Use Shelf Clips (O) to lock shelves into place.
- Page 6 STEP 7 Attach TV Brackets (N,M) to back of television using Screws (M-A through M-F) and M8 Washers (M-E) using Phillips head screwdriver. Spacers (M-F, M-G) may be required. STEP 8 Hang TV Brackets (M, N) with television on Plate (I) and tighten security screws on the bottom of brackets with a Phillips screwdriver to secure.
- Page 7 STEP 9 Route cables through Cable Grommets (H) in Poles (G). Adjust as desired.
