Vivo STAND-TV00M4 Instruction Manual

Vivo STAND-TV00M4 Instruction Manual

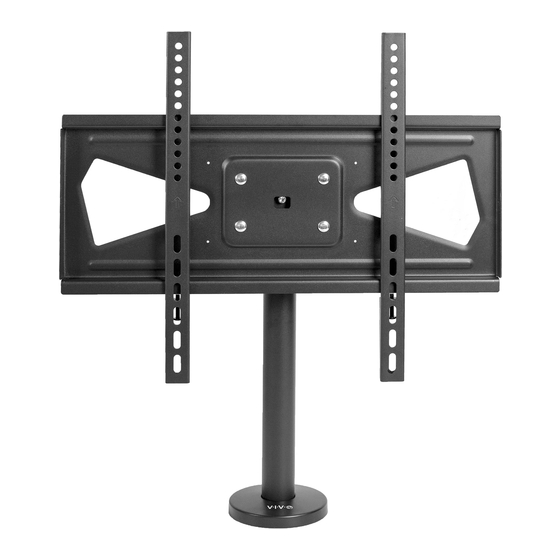

Bolt-down tv mount

Advertisement

Quick Links

Bolt-Down TV Mount
Instruction Manual
SKU: STAND-TV00M4
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv00m4
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-TV00M4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-TV00M4

  • Page 1 Bolt-Down TV Mount Instruction Manual SKU: STAND-TV00M4 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv00m4 help@vivo-us.com www.vivo-us.com 309-278-5303...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 Please note that the cable holes are positioned on the back side of the pole (A). Slide the base cover up to reveal mounting holes on the base. STEP 2 Position the pole on the desktop and drill small pilot holes. Secure M6x25 screws (G) or M6x30 screws (H) and slide the base cover down.
  • Page 4 STEP 3 Attach TV plate (D) to mounting head on pole using M6x16 carriage bolts (E) and M6 nuts (F), and tighten with the wrench (I). STEP 4 OPTION A: Flat Back Monitor Position the VESA plate (B) on the back of the TV, making sure the hooks are towards the top of the TV.
  • Page 5 STEP 4 (Continued) OPTION B: Curved Back Monitor Position the VESA brackets (B) on the back of the TV, making sure the hooks are towards the top of the TV. Secure using screws (M-C, M-D, or M-E) with square washers (M-F) and spacers (M-G, M-H).
  • Page 6 STEP 6 Install stoppers (C) on the TV plate (D) to prevent the TV from sliding.
  • Page 7 STEP 7 Adjust swivel tension using the Allen wrench (J). Manage cables using cable holes in pole.
  • Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
